Is the Quick connector for water DN11.8 with GZ, stainless steel compatible with hoses and guns rated for 200â¯bar and temperatures up to +100Â°C?

Yes. The Quick connector for water DN11.8 with GZ, stainless steel is specified with a working pressure of 200 bar and an operating temperature up to +100Â°C, and is made from AISI 303/304L stainless steel. Based on that description, it is compatible with hoses and guns rated for 200 bar and temperatures up to +100Â°C, provided the mating hose/gun fittings match the DN11.8/GZ thread and the connected components are likewise rated for the same pressure and temperature. Ensure proper thread compatibility, correct sealing (gaskets/O-rings if required), and that the entire fluid system (hoses, clamps, swivel joints, etc.) is certified for 200 bar and up to +100Â°C to guarantee safe operation.

Can the Quick connector for water DN11.8 with GZ, stainless steel be used with non-stainless steel fittings or adapters?

Yes - the Quick connector for water DN11.8 with GZ, stainless steel can be used with non-stainless steel fittings or adapters, provided a few conditions are met. Ensure thread compatibility (GZ/internal thread DN11.8), matching pressure ratings (connector rated to 200 bar) and temperature limits (up to +100Â°C). Check that the non-stainless material resists corrosion in your water/chemical environment to avoid galvanic corrosion between dissimilar metals. Use appropriate seals or PTFE tape to ensure leak-free joints and inspect connections periodically for wear. If extreme corrosion risk or sanitary requirements exist, prefer stainless steel mates.

Does the Quick connector for water DN11.8 with GZ, stainless steel support high-flow pressure washer applications?

Yes. the Quick connector for water DN11.8 with GZ, stainless steel is suitable for high-flow pressure washer applications. Its key specifications support such use: - Material: AISI 303/304L stainless steel. corrosion-resistant and durable for repeated high-pressure use and exposure to water and detergents. - Working pressure: 200 bar. this rating accommodates most professional and many industrial pressure washers (typical consumer washers are far lower; heavy-duty units often operate in the tens to low hundreds of bar). - Operating temperature: up to +100Â°C. suitable for hot-water washers and steam-prone environments. Additionally, the DN11.8 size and GZ (internal thread) design allow quick connection of the water gun to the hose or other washing accessories, facilitating fast hookups and reliable sealing under high flow. Ensure compatibility with your specific washerâs nozzle/hose fittings and confirm that flow rate (l/min) requirements match the connectorâs internal bore; while pressure rating is adequate, extremely high flow rates could be limited by the DN11.8 bore size.

Plug water quick coupling DN11.8 with male thread, steel stainless

All products, Quick couplings for water/

Additional information

Material	SS – stainless steel
Standard length [m]	50

Plug quick coupling DN11.8 with a thread external facilitating fast connection spray gun for water with a hose or with other accessories for washing. Material: steel AISI 303/304L. Working pressure: 200 bar. Operating temperature: up to +100°C.

List of product variants

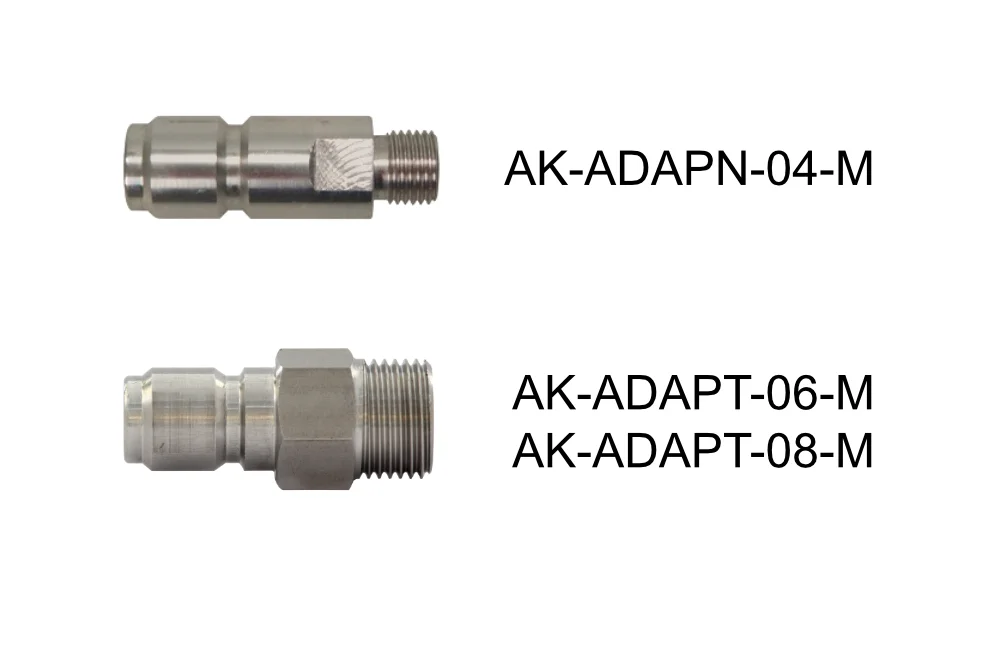

Article number	Product variant name	DN	BAR	Availability	Actions
AK-ADAPN-04-M	Quick coupling plug DN11.8, 1/4" BSP male, a wrench flat, stainless steel	-	200	In stock	Enquiry
AK-ADAPT-06-M	Quick coupling plug DN11.8, 3/8" BSP male, stainless steel	-	200	In stock	Enquiry
AK-ADAPT-08-M	Quick coupling plug DN11.8, 1/2" BSP male, stainless steel	-	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Plug quick coupling DN11.8 with a thread external facilitating fast connection spray gun for water with a hose or with other accessories for washing. Material: steel AISI 303/304L. Working pressure: 200 bar. Operating temperature: up to +100°C.
