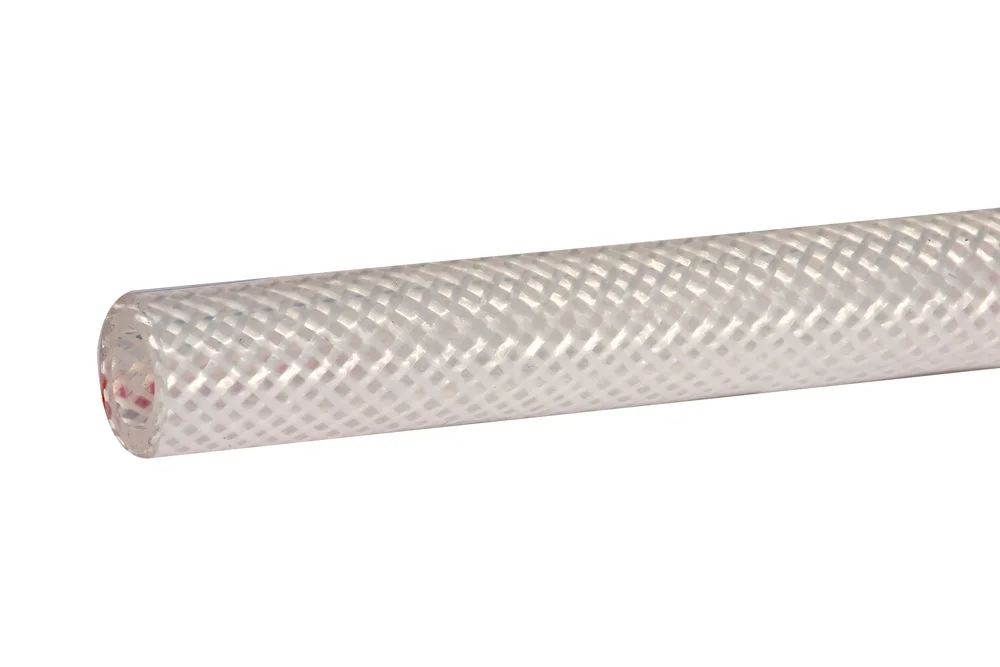

Reinforced silicone hose PHARMATECH
High-quality hydrophobic pressure hose manufactured using platinum-enhanced technology. Odorless and tasteless. Smooth surface prevents contamination adhesion. Sterilization by steam at +135°C, alternatively by argon, cobalt. Compliant with FDA requirements, USP Class VI, European Pharmacopoeia 3.1.9, and directives EC 1935/2004 and EC 2023/2006 (GMP). Safety factor 3:1. Inner layer: translucent silicone. Reinforcement: polyester braid. Outer layer: translucent silicone. Operating temperature: from -60°C to +200°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| MT-PHARMATECH-05 | PHARMATECH hose 4.76x11.3 mm | 5 | 15 | |
| MT-PHARMATECH-06 | PHARMATECH hose 6.35x13.2 mm | 6 | 14 | |
| MT-PHARMATECH-08 | PHARMATECH hose 7.93x15 mm | 8 | 12 | |
| MT-PHARMATECH-10 | PHARMATECH hose 9.52x16.6 mm | 10 | 11 | |
| MT-PHARMATECH-13 | PHARMATECH hose 12.7x20.3 mm | 12 | 9 | |
| MT-PHARMATECH-16 | PHARMATECH hose 15.87x24.5 mm | 16 | 8 | |
| MT-PHARMATECH-19 | PHARMATECH hose 19.05x27.9 mm | 20 | 6 | |
| MT-PHARMATECH-22 | PHARMATECH hose 22.2x31.3 mm | 22 | 5 | |
| MT-PHARMATECH-25 | PHARMATECH hose 25.4x34.5 mm | 25 | 5 | |
| MT-PHARMATECH-32 | PHARMATECH hose 31.75x40.8 mm | 32 | 4 |
High-quality hydrophobic pressure hose manufactured using platinum-enhanced technology. Odorless and tasteless. Smooth surface prevents contamination adhesion. Sterilization by steam at +135°C, alternatively by argon, cobalt. Compliant with FDA requirements, USP Class VI, European Pharmacopoeia 3.1.9, and directives EC 1935/2004 and EC 2023/2006 (GMP). Safety factor 3:1. Inner layer: translucent silicone. Reinforcement: polyester braid. Outer layer: translucent silicone. Operating temperature: from -60°C to +200°C.
Additional information
| Material | VMQ – silicone |
|---|---|
| Maximum operating temperature [°C] | 200 |
| Minimum operating temperature [°C] | -60 |
| Vacuum resistance | check |
| Standard length [m] | 10, 25, 40, 50 |
