Is the Round nozzle for coolant, 3/8" system, JETON compatible with all coolant hoses in 1/4", 3/8", and 1/2" sizes?

Short answer: No. Explanation: The Round nozzle for coolant, 3/8" system, JETON Format is designed for a 3/8" system; although it is available in outer sizes 1/4", 3/8", and 1/2" and made of acetal (working pressure up to 3 bar, temperature up to +65Â°C), compatibility depends on the internal connection type and the hose/fitting dimensions. A nozzle sized 3/8" will fit hoses/fittings made for a 3/8" system; 1/4" and 1/2" versions are separate items for those hose sizes. You cannot assume a single 3/8" nozzle is universally compatible with all 1/4", 3/8", and 1/2" hoses without the correct adapters or matching fittings.

What is the maximum operating temperature and pressure for the Round nozzle for coolant, 3/8" system, JETON?

The maximum operating temperature for the Round nozzle for coolant, 3/8" system, JETON is +65Â°C, and the maximum working pressure is up to 3 bar.

Can the Round nozzle for coolant, 3/8" system, JETON be used with fluids other than water-based coolants?

Yes, the Round nozzle for coolant, 3/8" system, JETON is primarily designed for water-based coolants, but it can be used with other fluids provided they are chemically compatible with acetal (POM), and meet the productâs pressure and temperature limits. Key constraints: - Material compatibility: The nozzle is made of acetal. It resists many oils, greases, and some solvents, but is attacked by strong acids, strong bases, and certain chlorinated or aromatic solvents. Check the chemical compatibility of your specific fluid with acetal before use. - Pressure: Maximum working pressure is up to 3 bar. Do not exceed this for any fluid. - Temperature: Maximum operating temperature is +65Â°C. Fluids hotter than this may deform or degrade the acetal and compromise sealing. - Application specifics: Viscous or particulate-laden fluids may alter spray pattern or clog the nozzle. Aggressive chemicals can damage fittings, seals, or connected components. If your intended fluid is non-aggressive, under 3 bar and 65Â°C, and free of large solids or excessive viscosity, the Round nozzle for coolant, 3/8" system, JETON can likely be used. For corrosive, high-temperature, high-pressure, or solvent-based fluids, consult the fluid manufacturerâs compatibility data or JETON technical support for confirmation.

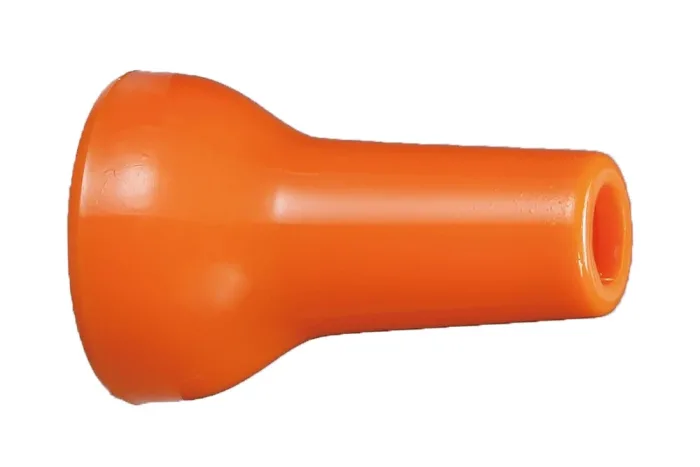

Round nozzle for coolant, 3/8″ system, JETON

Air and water hoses, All products/

Additional information

Round nozzle for coolant hoses JETON – 3/8″ system. Available in sizes 1/4″, 3/8″, and 1/2″. Material: acetal. Working pressure: up to 3 bar. Operating temperature: up to +65°C.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
JT-83032	Round nozzle 1/4" (3/8" system)	-	3
JT-83033	Round nozzle 3/8" (3/8" system)	-	3
JT-83034	Round nozzle 1/2" (3/8" system)	-	3

Round nozzle for coolant hoses JETON – 3/8″ system. Available in sizes 1/4″, 3/8″, and 1/2″. Material: acetal. Working pressure: up to 3 bar. Operating temperature: up to +65°C.
