Is the RS shell bracket (EN 14420-3/DIN 2817), stainless steel, compatible with hoses and ends to safely withstand 25 bar working pressure?

Yes . the RS shell bracket (EN 14420-3/DIN 2817), stainless steel is compatible with hoses and ends to safely withstand 25 bar working pressure, provided the hose and end fittings are correctly selected and conform to EN 14420-3. The product description states it is designed for securing hoses on standard (smooth) ends with a safety flange, is made of AISI 316 stainless steel, and specifies working pressure 25 bar (with appropriately selected hose and end EN 14420-3). To ensure safety in application, verify: - the hose and end fittings are EN 14420-3/DIN 2817 compliant and rated for â¥25 bar; - proper matching of hose outer diameter to the RS shell bracket size; - correct assembly and tightening per manufacturer instructions; - compatibility with fluids, temperature range and dynamic conditions of your system; - periodic inspection and maintenance.

Can the RS shell bracket (EN 14420-3/DIN 2817), stainless steel, be used with smooth-ended hoses and safety flanges rated for 25 bar?

Yes. The RS shell bracket (EN 14420-3/DIN 2817), stainless steel, is designed for securing smooth-ended hoses with a safety flange. Made of AISI 316 and specified for a working pressure of 25 bar (when used with an appropriately selected hose and end to EN 14420-3), it is suitable for that application-provided the hose and safety flange are compliant with EN 14420-3 and rated for 25 bar, and all components (including clamps, hose, and flange) are correctly selected, assembled and maintained per manufacturer and standard instructions.

Does the RS shell bracket (EN 14420-3/DIN 2817), stainless steel, require specific hose/end certifications to guarantee 25 bar safety?

Yes. the RS shell bracket (EN 14420-3/DIN 2817), stainless steel does require that the hose and the hose end fittings be certified and correctly matched to achieve the declared 25 bar working pressure. Why: The product description states working pressure "25 bar (with appropriately selected hose and end EN 14420-3)". That implies the clamp alone is not a pressure rating guarantee; the system rating depends on the weakest component. To safely achieve 25 bar you must use hoses and end fittings that are rated for at least 25 bar and conform to EN 14420-3 (DIN 2817) specifications. Additionally ensure compatibility of materials (AISI 316 stainless steel clamp with hose reinforcement and end material), correct assembly, and any required sealing or safety flange configurations. What to check: - Hose rating: manufacturerâs maximum working pressure â¥ 25 bar at operating temperature. - End fittings: compliant with EN 14420-3/DIN 2817 and rated â¥ 25 bar; correct matching type (smooth standard ends with safety flange). - Assembly instructions: hose length, mandrel/insert requirements, torque or fastening method, and any lubricant or seal recommendations. - System validation: pressure testing after assembly per relevant standards and local regulations. - Traceability/certificates: request manufacturer declarations, pressure test certificates or material certificates for hose and end fittings. Conclusion: The RS shell bracket (EN 14420-3/DIN 2817), stainless steel is part of a system; to guarantee 25 bar safety you must use certified, compatible hose and end fittings (EN 14420-3) and follow correct assembly and testing procedures.

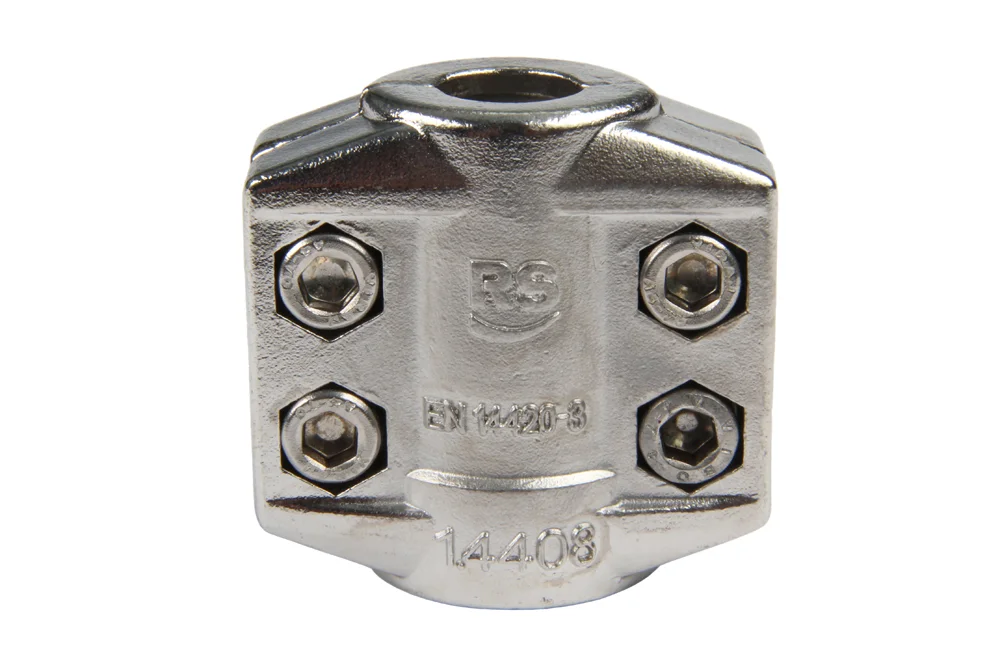

RS shell clamp (EN 14420-3/DIN 2817), stainless steel

Additional information

Material	SS – stainless steel

Shell clamp intended for securing hoses on standard (smooth) fittings with a safety flange. Material: AISI 316 steel. Working pressure: 25 bar (with an appropriately selected hose and EN 14420-3 fitting).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RS-636013005020	Shell clamp acc. to DIN2817 13x5 mm, SS	-	-	In stock	Enquiry
RS-636019004020	Shell clamp acc. to DIN2817 19x4 mm, SS	-	-	In stock	Enquiry
RS-636019006020	Shell clamp acc. to DIN2817 19x6 mm, SS	-	-	In stock	Enquiry
RS-636025005020	Shell clamp acc. to DIN2817 25x5 mm, SS	-	-	In stock	Enquiry
RS-636025006020	Shell clamp acc. to DIN2817 25x6 mm, SS	-	-	In stock	Enquiry
RS-636032006020	Shell clamp acc. to DIN2817 32x6 mm, SS	-	-	In stock	Enquiry
RS-636032008020	Shell clamp acc. to DIN2817 32x8 mm, SS	-	-	In stock	Enquiry
RS-636038007020	Shell clamp acc. to DIN2817 38x6.5 mm, SS	-	-	In stock	Enquiry
RS-636038008020	Shell clamp acc. to DIN2817 38x8 mm, SS	-	-	In stock	Enquiry
RS-636040010020	Shell clamp acc. to DIN2817 40x10 mm, SS	-	-	In stock	Enquiry
RS-636050006020	Shell clamp acc. to DIN2817 50x6 mm, SS	-	-	In stock	Enquiry
RS-636050008020	Shell clamp acc. to DIN2817 50x8 mm, SS	-	-	In stock	Enquiry
RS-636050010020	Shell clamp acc. to DIN2817 50x10 mm, SS	-	-	In stock	Enquiry
RS-636065007020	Shell clamp acc. to DIN2817 65x7 mm, SS	-	-	In stock	Enquiry
RS-636075008020	Shell clamp acc. to DIN2817 75x8 mm, SS	-	-	In stock	Enquiry
RS-637100008020	Shell clamp acc. to DIN2826/2817 100x8 mm, SS	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Shell clamp intended for securing hoses on standard (smooth) fittings with a safety flange. Material: AISI 316 steel. Working pressure: 25 bar (with an appropriately selected hose and EN 14420-3 fitting).
