Is the Separation strip 2 - output, aluminum compatible with standard BSP-threaded pneumatic fittings and adapters?

Yes. The Separation strip 2 - output, aluminum is compatible with standard BSP-threaded pneumatic fittings and adapters. Both the inlet and outlets use internal BSP threads, so standard BSP male-threaded fittings will mate correctly. The rail is designed for pneumatic distribution (working pressure up to 12 bar, temperature range â10Â°C to +80Â°C) and is made of anodized aluminum; ensure the fittings you choose match the BSP thread size used on the specific rail model and are rated for the same pressure and temperature range.

Can Separation strip 2 - output, aluminum be mounted vertically and still maintain proper airflow and pressure rating?

Yes. Separation strip 2 - output, aluminum can be mounted vertically and still maintain proper airflow and pressure rating. The product is a two-output distribution rail for pneumatic systems with inlet and outlet internal BSP threads, designed to distribute compressed air under pressure to multiple branches. Its anodized aluminum construction and working pressure rating of 12 bar remain unchanged by orientation. The unit also has additional mounting holes so you can secure it in the desired installation location. Ensure fittings and connected tubing are properly supported and routed to avoid stress or kinks that could impede airflow. Operating temperature range: -10Â°C to +80Â°C.

Does Separation strip 2 - output, aluminum require sealing tape or paste on BSP threads to prevent leaks?

Separation strip 2 - output, aluminum uses internal BSP threads for both inlet and outlets. BSP threads are not inherently leak-tight; to prevent air leaks in pneumatic systems, sealing is normally required. For metal-to-metal fittings with BSP parallel threads (BSPP), a sealing washer or an O-ring at the joint face is commonly used; thread sealant tape (PTFE/Teflon tape) or paste can be applied on the male thread when connecting to BSP tapered threads (BSPT) or where a thread-fit seal is intended. Since the product description only states internal BSP threads and anodized aluminum construction without specifying whether the mating fittings are BSPP (parallel) with a face seal or BSPT (tapered), the safe approach is: - Use appropriate thread sealant (PTFE tape or thread paste) on male BSP threads when connecting to the Separation strip 2 - output, aluminum to ensure an airtight joint. - If mating fittings use an O-ring or washer face seal, do not apply tape on the sealing faceâfollow the fitting manufacturerâs guidance. Also ensure compatible sealant (suitable for compressed air, temperature range â10Â°C to +80Â°C, and aluminum) and apply thread sealant correctly to avoid contamination of the pneumatic system.

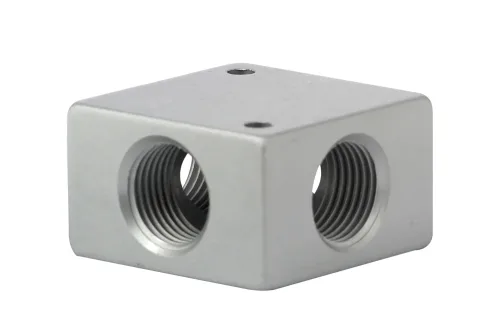

Separation strip 2 – output, aluminum

Accessories for pneumatic fittings, All products/

Additional information

Material	AL – aluminum

Two-output distribution rail for use in pneumatic systems, allowing for the distribution of compressed air under pressure to several other branches. It has additional holes for mounting in the desired location of the installation. Inlet – internal BSP threads, outlet – internal BSP threads. Working pressure: 12 bar. Operating temperature: from -10°C to +80°C. Material: anodized aluminum.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0502111001	Separator bar, 2 x inlet G thread BSP 1/4", 2 x outlet G thread BSP 1/8", aluminum	-	12	In stock	Enquiry
MW-W0502121002	Distribution rail, 2 x inlet G thread BSP 3/8", 2 x outlet G thread BSP 1/4", aluminum	-	12	In stock	Enquiry
MW-W0502131002	Separator bar, 2 x inlet G 1/2", 2 x outlet G 1/4", aluminum	-	12	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Two-output distribution rail for use in pneumatic systems, allowing for the distribution of compressed air under pressure to several other branches. It has additional holes for mounting in the desired location of the installation. Inlet – internal BSP threads, outlet – internal BSP threads. Working pressure: 12 bar. Operating temperature: from -10°C to +80°C. Material: anodized aluminum.
