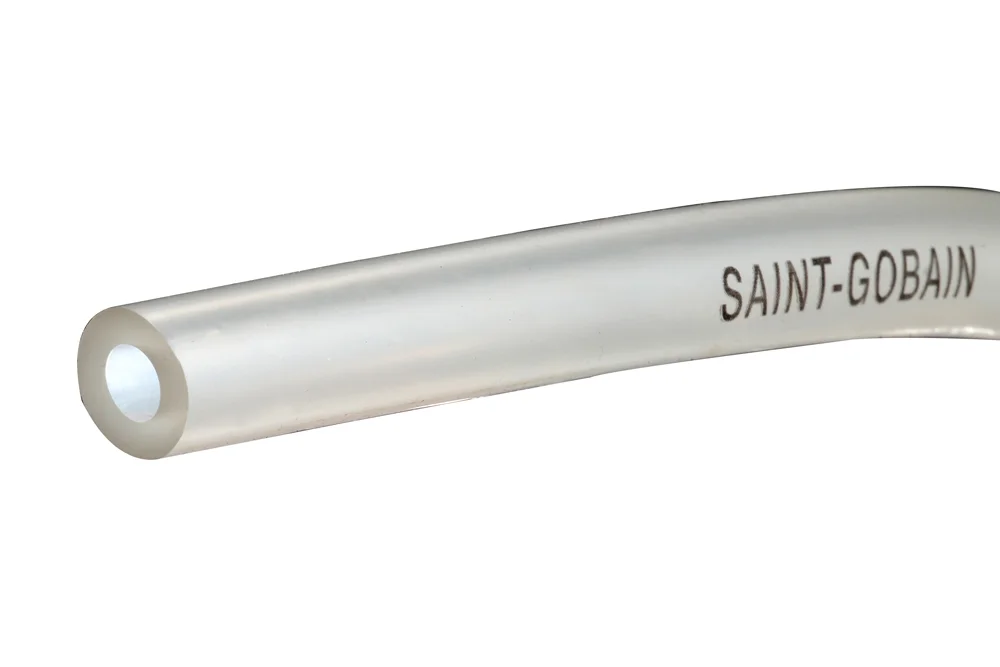

Silicone hose for biotechnological applications C-flex

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

135

Minimum operating temperature [°C]

-45

Vacuum resistance

no

Standard length [m]

15, 20, 4.5

Lightweight, transparent, flexible hose made of patented thermoplastic elastomer for biotechnological applications. Suitable for use in peristaltic pumps. Non-toxic, non-hemolytic, and apyrogenic with high purity class, easily thermally weldable, which is essential in biotechnological processes. Sterilization possible in autoclave, radiation, and ethylene oxide. Resistant to concentrated acids and bases. Meets USP Class VI requirements. Hose material: thermoplastic elastomer. Hardness: 60° Shore (A). Operating temperature: from -45°C to +135°C. Key features: thermal welding using C’eal-Flex™ TPE Ultra Sealer.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
VE-374-1000-6C-flex hose 25.4x34.9 mm25-
VE-374-1000-8C-flex hose 25.4x38.1 mm25-
VE-374-125-2C-flex hose 3.2x6.4 mm3-
VE-374-188-2C-flex hose 4.8x8 mm5-
VE-374-188-3C-flex hose 4.8x9.6 mm5-
VE-374-250-2C-flex hose 6.4x9.6 mm6-
VE-374-250-3C-flex hose 6.4x11.2 mm6-
VE-374-250-4C-flex hose 6.4x12.7 mm6-
VE-374-313-3C-flex hose 8x12.7 mm8-
VE-374-375-2C-flex hose 9.5x12.7 mm10-
VE-374-375-3C-flex hose 9.5x14.3 mm10-
VE-374-375-4C-flex hose 9.5x15.9 mm10-
VE-374-500-3C-flex hose 12.7x17.5 mm12-
VE-374-500-4C-flex hose 12.7x19.1 mm12-
VE-374-625-4C-flex hose 15.9x22.3 mm16-
VE-374-750-4C-flex hose 19x25.4 mm20-
VE-374-750-6C-flex hose 19x28.3 mm20-
VE-374-750-8C-flex hose 19x31.7 mm20-

Lightweight, transparent, flexible hose made of patented thermoplastic elastomer for biotechnological applications. Suitable for use in peristaltic pumps. Non-toxic, non-hemolytic, and apyrogenic with high purity class, easily thermally weldable, which is essential in biotechnological processes. Sterilization possible in autoclave, radiation, and ethylene oxide. Resistant to concentrated acids and bases. Meets USP Class VI requirements. Hose material: thermoplastic elastomer. Hardness: 60° Shore (A). Operating temperature: from -45°C to +135°C. Key features: thermal welding using C’eal-Flex™ TPE Ultra Sealer.

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

135

Minimum operating temperature [°C]

-45

Vacuum resistance

no

Standard length [m]

15, 20, 4.5
