Is the SV straight bulkhead fitting, stainless steel, compatible with hydraulic systems using 24Â° DIN 2353 connections and external metric threads on both sides?

Yes. The SV straight bulkhead fitting, stainless steel is compatible with hydraulic systems using 24Â° DIN 2353 connections and external metric threads on both sides. The product description states it is a DIN 2353 straight partition (bulkhead) fitting, type SV with counter nut, featuring a 24Â° DIN 2353 socket on both sides with external metric threads. It is made of AISI 316 stainless steel and offered in light (L) and heavy (S) series, which confirms material and pressure/robustness options suitable for hydraulic applications that use the 24Â° DIN 2353 standard and external metric threaded ports.

Does the SV straight bulkhead fitting, stainless steel, come in both L (light) and S (heavy) series for 24Â° DIN 2353 external metric threads?

Yes. The SV straight bulkhead fitting, stainless steel Format for 24Â° DIN 2353 external metric threads is available in both L (light) and S (heavy) series. Material: AISI 316 steel.

Can the SV straight bulkhead fitting, stainless steel, be used in corrosive environments due to its AISI 316 material?

Yes. the SV straight bulkhead fitting, stainless steel, made from AISI 316, is generally suitable for many corrosive environments. AISI 316 (marine grade) stainless steel contains molybdenum, which significantly improves resistance to pitting and crevice corrosion compared with 304 stainless, especially in chloride-containing media (e.g., seawater, coastal atmospheres). For typical industrial applications featuring salt spray, brackish water, mild acids, and many chemical exposures, AISI 316 offers good durability. However, suitability depends on the specific corrosive agents, their concentrations, temperature, pressure cycles and presence of galvanic couples. Strong reducing acids (like hydrochloric acid), hot concentrated chlorides, some chlorinated solvents, and highly oxidizing environments can still attack 316. Also, crevice corrosion risk increases in stagnant conditions or where deposits form around the fitting and counter nut interface. Mechanical factors (vibration, abrasion) and sealing materials used with the 24Â° DIN 2353 connections also affect long-term performance. Recommendations: - For seawater, coastal and many chemical service uses, SV straight bulkhead fitting, stainless steel (AISI 316) is a suitable choice. - For highly aggressive or high-temperature chloride environments, or where absolute corrosion immunity is required, consider higher-alloy materials (e.g., duplex stainless steels or 6% Mo alloys) and verify compatibility with the specific medium. - Perform site-specific corrosion assessment, material compatibility checks and, if needed, corrosion testing or consult the manufacturer with process conditions (media, concentration, temp, pressure) before final selection.

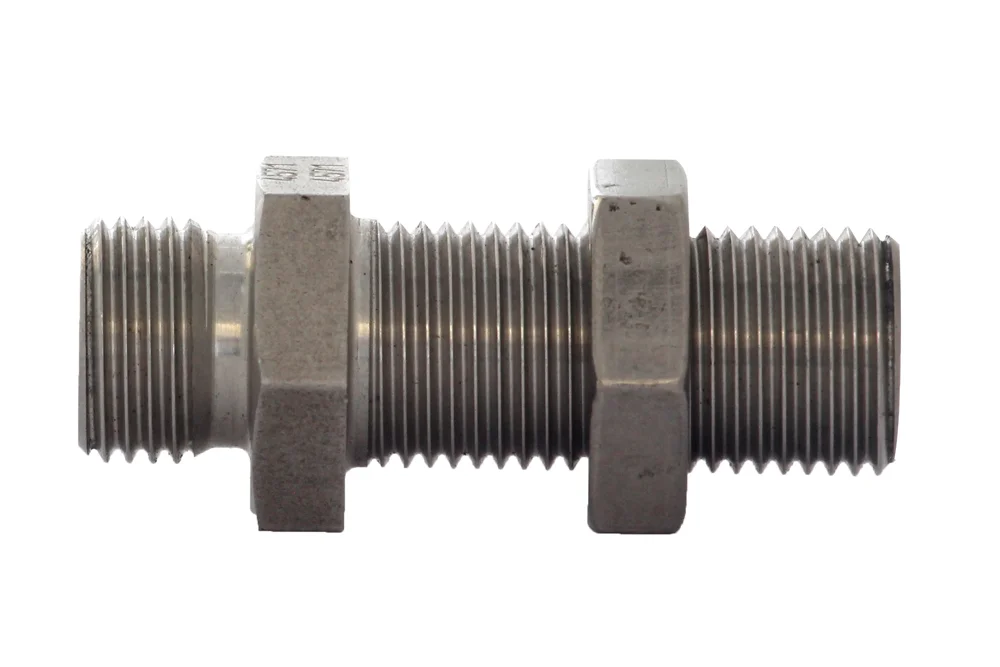

Fitting straight bulkhead SV, stainless steel

Additional information

Material	SS – stainless steel

Fitting DIN 2353 straight bulkhead, type SV with a locknut: 24° DIN 2353 socket on both sides with metric male thread. Available as: L (series light), S (series heavy). Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-SV-06L-SS	Fitting DIN 2353 SV 6L, AISI 316	-	500	In stock	Enquiry
HD-SV-06S-SS	Fitting DIN 2353 SV 6S, AISI 316	-	800	In stock	Enquiry
HD-SV-08L-SS	Fitting DIN 2353 SV 8L, AISI 316	-	500	In stock	Enquiry
HD-SV-08S-SS	Fitting DIN 2353 SV 8S, AISI 316	-	800	In stock	Enquiry
HD-SV-10L-SS	Fitting DIN 2353 SV 10L, AISI 316	-	500	In stock	Enquiry
HD-SV-10S-SS	Fitting DIN 2353 SV 10S, AISI 316	-	800	In stock	Enquiry
HD-SV-12L-SS	Fitting DIN 2353 SV 12L, AISI 316	-	400	In stock	Enquiry
HD-SV-12S-SS	Fitting DIN 2353 SV 12S, AISI 316	-	630	In stock	Enquiry
HD-SV-14S-SS	Fitting DIN 2353 SV 14S, AISI 316	-	630	In stock	Enquiry
HD-SV-15L-SS	Fitting DIN 2353 SV 15L, AISI 316	-	400	In stock	Enquiry
HD-SV-16S-SS	Fitting DIN 2353 SV 16S, AISI 316	-	630	In stock	Enquiry
HD-SV-18L-SS	Fitting DIN 2353 SV 18L, AISI 316	-	400	In stock	Enquiry
HD-SV-20S-SS	Fitting DIN 2353 SV 20S, AISI 316	-	420	In stock	Enquiry
HD-SV-22L-SS	Fitting DIN 2353 SV 22L, AISI 316	-	250	In stock	Enquiry
HD-SV-25S-SS	Fitting DIN 2353 SV 25S, AISI 316	-	420	In stock	Enquiry
HD-SV-28L-SS	Fitting DIN 2353 SV 28L, AISI 316	-	250	In stock	Enquiry
HD-SV-30S-SS	Fitting DIN 2353 SV 30S, AISI 316	-	420	In stock	Enquiry
HD-SV-35L-SS	Fitting DIN 2353 SV 35L, AISI 316	-	250	In stock	Enquiry
HD-SV-38S-SS	Fitting DIN 2353 SV 38S, AISI 316	-	420	In stock	Enquiry
HD-SV-42L-SS	Fitting DIN 2353 SV 42L, AISI 316	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 straight bulkhead, type SV with a locknut: 24° DIN 2353 socket on both sides with metric male thread. Available as: L (series light), S (series heavy). Material: AISI 316.
