Is the Straight reduction fitting KOR-L, stainless steel compatible with standard 24Â° DIN 2353 connectors and available in light series (L) AISI 316?

Yes. The Straight reduction fitting KOR-L, stainless steel is compatible with standard 24Â° DIN 2353 connectors and is available in the light series (L) made from AISI 316 steel. The product description specifies: 24Â° DIN 2353 socket with external metric thread and internal metric thread (locking ring), nut; available as L (light series); material AISI 316.

Does the Straight reduction fitting KOR-L, stainless steel include a locking ring and nut for installation?

Yes. The Straight reduction fitting KOR-L, stainless steel includes a locking ring and nut for installation. The product description specifies a 24Â° DIN 2353 socket with external metric thread and internal metric thread (locking ring), plus a nut. Material: AISI 316 steel.

Can the Straight reduction fitting KOR-L, stainless steel be used with both external and internal metric threads?

Yes. The Straight reduction fitting KOR-L, stainless steel is designed with both an external metric thread and an internal metric thread (locking ring), so it can be used with components having either external or internal metric threads. The fitting includes the 24Â° DIN 2353 socket and nut, allowing connection compatibility in systems that use metric-threaded male or female ports. The material is AISI 316 stainless steel and the fitting is available in the L (light) series.

Straight reduction fitting KOR-L, stainless steel

Additional information

Material	SS – stainless steel
Standard length [m]	60

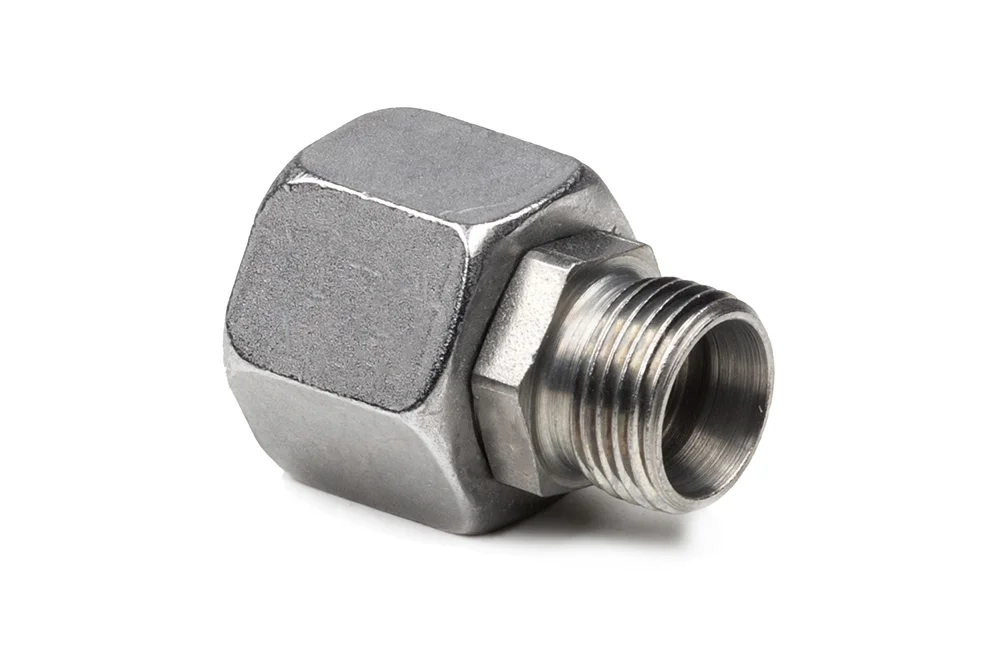

Straight reducing fitting, type KOR-L: 24° DIN 2353 socket with external metric thread and internal metric thread (locking ring), nut. Available as: L (light series). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-KOR-08-06L-SS	DIN 2353 connector type KOR 08/06L, AISI 316	-	315	In stock	Enquiry
HD-KOR-10-06L-SS	DIN 2353 connector type KOR 10/06L, AISI 316	-	315	In stock	Enquiry
HD-KOR-10-08L-SS	DIN 2353 connector type KOR 10/08L, AISI 316	-	315	In stock	Enquiry
HD-KOR-12-06L-SS	DIN 2353 fitting type KOR 12/06L, AISI 316	-	315	In stock	Enquiry
HD-KOR-12-08L-SS	DIN 2353 fitting type KOR 12/08L, AISI 316	-	315	In stock	Enquiry
HD-KOR-12-10L-SS	DIN 2353 connector type KOR 12/10L, AISI 316	-	315	In stock	Enquiry
HD-KOR-15-06L-SS	DIN 2353 connector type KOR 15/06L, AISI 316	-	315	In stock	Enquiry
HD-KOR-15-08L-SS	DIN 2353 connector type KOR 15/08L, AISI 316	-	315	In stock	Enquiry
HD-KOR-15-10L-SS	DIN 2353 fitting type KOR 15/10L, AISI 316	-	315	In stock	Enquiry
HD-KOR-15-12L-SS	DIN 2353 fitting type KOR 15/12L, AISI 316	-	315	In stock	Enquiry
HD-KOR-18-06L-SS	DIN 2353 fitting type KOR 18/06L, AISI 316	-	315	In stock	Enquiry
HD-KOR-18-08L-SS	DIN 2353 connector type KOR 18/08L, AISI 316	-	315	In stock	Enquiry
HD-KOR-18-10L-SS	DIN 2353 connector type KOR 18/10L, AISI 316	-	315	In stock	Enquiry
HD-KOR-18-12L-SS	DIN 2353 connector type KOR 18/12L, AISI 316	-	315	In stock	Enquiry
HD-KOR-18-15L-SS	DIN 2353 connector type KOR 18/15L, AISI 316	-	315	In stock	Enquiry
HD-KOR-22-06L-SS	DIN 2353 connector type KOR 22/06L, AISI 316	-	160	In stock	Enquiry
HD-KOR-22-08L-SS	DIN 2353 connector type KOR 22/08L, AISI 316	-	160	In stock	Enquiry
HD-KOR-22-10L-SS	DIN 2353 fitting type KOR 22/10L, AISI 316	-	160	In stock	Enquiry
HD-KOR-22-12L-SS	DIN 2353 fitting type KOR 22/12L, AISI 316	-	160	In stock	Enquiry
HD-KOR-22-15L-SS	DIN 2353 connector type KOR 22/15L, AISI 316	-	160	In stock	Enquiry
HD-KOR-22-18L-SS	DIN 2353 connector type KOR 22/18L, AISI 316	-	160	In stock	Enquiry
HD-KOR-28-06L-SS	DIN 2353 connector type KOR 28/06L, AISI 316	-	160	In stock	Enquiry
HD-KOR-28-08L-SS	DIN 2353 fitting type KOR 28/08L, AISI 316	-	160	In stock	Enquiry
HD-KOR-28-10L-SS	DIN 2353 connector type KOR 28/10L, AISI 316	-	160	In stock	Enquiry
HD-KOR-28-12L-SS	DIN 2353 connector type KOR 28/12L, AISI 316	-	160	In stock	Enquiry
HD-KOR-28-15L-SS	DIN 2353 connector type KOR 28/15L, AISI 316	-	160	In stock	Enquiry
HD-KOR-28-18L-SS	DIN 2353 connector type KOR 28/18L, AISI 316	-	160	In stock	Enquiry
HD-KOR-28-22L-SS	DIN 2353 fitting type KOR 28/22L, AISI 316	-	160	In stock	Enquiry
HD-KOR-35-06L-SS	DIN 2353 connector type KOR 35/06L, AISI 316	-	160	In stock	Enquiry
HD-KOR-35-08L-SS	DIN 2353 fitting type KOR 35/08L, AISI 316	-	160	In stock	Enquiry
HD-KOR-35-10L-SS	DIN 2353 connector type KOR 35/10L, AISI 316	-	160	In stock	Enquiry
HD-KOR-35-12L-SS	DIN 2353 connector type KOR 35/12L, AISI 316	-	160	In stock	Enquiry
HD-KOR-35-15L-SS	DIN 2353 connector type KOR 35/15L, AISI 316	-	160	In stock	Enquiry
HD-KOR-35-18L-SS	DIN 2353 connector type KOR 35/18L, AISI 316	-	160	In stock	Enquiry
HD-KOR-35-22L-SS	DIN 2353 fitting type KOR 35/22L, AISI 316	-	160	In stock	Enquiry
HD-KOR-35-28L-SS	DIN 2353 connector type KOR 35/28L, AISI 316	-	160	In stock	Enquiry
HD-KOR-42-10L-SS	DIN 2353 connector type KOR 42/10L, AISI 316	-	160	In stock	Enquiry
HD-KOR-42-12L-SS	DIN 2353 connector type KOR 42/12L, AISI 316	-	160	In stock	Enquiry
HD-KOR-42-15L-SS	DIN 2353 connector type KOR 42/15L, AISI 316	-	160	In stock	Enquiry
HD-KOR-42-18L-SS	DIN 2353 connector type KOR 42/18L, AISI 316	-	160	In stock	Enquiry
HD-KOR-42-22L-SS	DIN 2353 fitting type KOR 42/22L, AISI 316	-	160	In stock	Enquiry
HD-KOR-42-28L-SS	DIN 2353 connector type KOR 42/28L, AISI 316	-	160	In stock	Enquiry
HD-KOR-42-35L-SS	DIN 2353 connector type KOR 42/35L, AISI 316	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight reducing fitting, type KOR-L: 24° DIN 2353 socket with external metric thread and internal metric thread (locking ring), nut. Available as: L (light series). Material: AISI 316 steel.
