Is the TRI-CLAMP tip with GZ BSP, polypropylene, 3C series compatible with food-grade gaskets and which gasket material is recommended?

Yes. The TRI-CLAMP tip with GZ BSP, polypropylene, 3C series is compatible with food-grade gaskets. The fitting is intended for laboratory, medical, pharmaceutical, chemical and food industry use and is supplied without a gasket so you can select the appropriate food-safe material for your medium. Recommended gasket materials for food-grade applications are EPDM and PTFE; EPDM offers good chemical and temperature resistance for many aqueous and steam processes, while PTFE provides excellent chemical inertness and wide temperature range when maximum purity is required. GylonÂ® (PTFE-based) can also be used where enhanced chemical resistance and leak-tightness are needed. FKM is generally not recommended for many food applications due to lower suitability for steam and certain food-contact regulations.use only if compatibility with your specific medium and regulatory requirements is confirmed.

Can the TRI-CLAMP tip with GZ BSP, polypropylene, 3C series withstand sterilization processes like autoclaving or chemical sterilants?

Yes - the TRI-CLAMP tip with GZ BSP, polypropylene, 3C series can tolerate many common sterilization methods, but with important limits: - Steam autoclaving: Polypropylene withstands standard low-temperature autoclaving (121Â°C) for short cycles in many cases, but repeated or high-temperature cycles can cause deformation or loss of mechanical strength. PVDF variants tolerate autoclaving better than polypropylene. - Chemical sterilants: Compatible with many chemical agents (dilute bleach, peracetic acid, ethanol) if exposure times and concentrations are controlled. Avoid strong oxidizers or aggressive solvents that attack polypropylene/PVDF. - Gasket compatibility: Sterilization resistance depends on chosen gasket material (EPDM, FKM, GylonÂ®, PTFE). Select gasket rated for your sterilization method. - Pressure: Working pressure is 6 bar; ensure sterilization conditions (temperature/pressure) do not exceed this limit. Recommendation: Validate the specific sterilization cycle and gasket selection in your application; when in doubt choose PVDF body and PTFE or suitable FKM/GylonÂ® gasket validated for the method.

Does the TRI-CLAMP tip with GZ BSP, polypropylene, 3C series need specific torque settings for proper sealing?

Yes. the TRI-CLAMP tip with GZ BSP, polypropylene, 3C series requires correct tightening but does not have a single proprietary torque value specified in the provided description. Proper sealing depends on correct assembly practice and the correct gasket selection for the medium. Key points: - The TRI-CLAMP tip with GZ BSP, polypropylene, 3C series is supplied without a gasket; choose the appropriate gasket material (EPDM, FKM, GylonÂ®, PTFE) for chemical compatibility and temperature. - Because the connection uses a Tri-Clamp (TriâClover) flange per DIN 32676 / ISO 2852 / BS 4825 with an external BSP thread, sealing is achieved by the clamp and the selected gasket rather than by overâtorquing a threaded fitting. - Polypropylene has limited mechanical strength versus metals; avoid excessive torque that can deform the plastic or damage the flange. Tighten clamps and threaded parts evenly and snugly until the gasket is compressed to form a leak-free seal. typical practice for plastic TriâClamp fittings is hand-tight plus a moderate additional turn with tools, not high torque. - For pressurized systems (working pressure up to 6 bar for this part), perform a leak check after assembly and reâinspect torque after initial pressurization or thermal cycling. - If exact torque values are required for your procedure or quality documentation, obtain manufacturer or supplier guidance for the specific gasket material and clamp type used; they can provide recommended torque ranges or tightening instructions appropriate for polypropylene components. In summary: use correct gasket, tighten evenly and conservatively to compress the gasket without overstressing the polypropylene, perform leak checks, and consult the supplier for exact torque figures if needed.

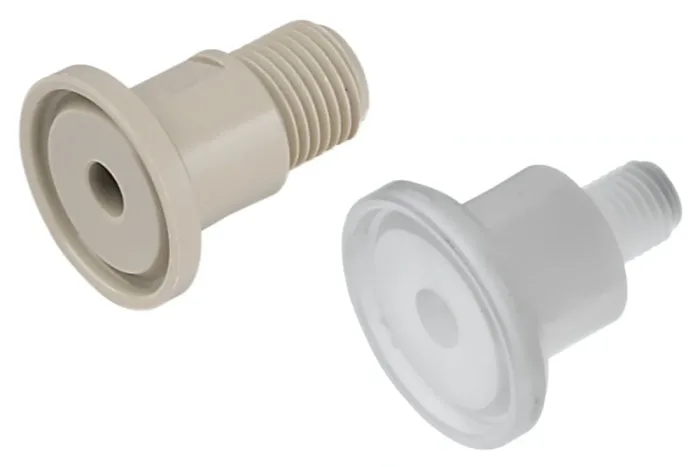

Straight TRI-CLAMP fitting with a BSP male thread of PP, PVDF plastic, 3C series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight TRI-CLAMP fitting with a BSP male thread 3C series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. The Tri-Clamp (Triclover) fitting is made in accordance with DIN 32676, ISO 2852 and BS 4825 standards and terminated with a BSP male thread. Supplied without a gasket, which should be ordered separately depending on the medium. Gaskets are available made of EPDM, FKM, Gylon® and PTFE. Material: polypropylene, PVDF. Working pressure: 6 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-3C100MG250614PP	Fitting TRI-CLAMP (3C series) 25 mm with 1/4" BSP male, polypropylene	-	6	In stock	Enquiry
EM-3C100MG250614PV	Fitting TRI-CLAMP (3C series) 25 mm with 1/4" BSP male, PVDF	-	6	In stock	Enquiry
EM-3C100MG250618PP	Fitting TRI-CLAMP (3C series) 25 mm with 1/8" BSP male, polypropylene	-	6	In stock	Enquiry
EM-3C100MG250618PV	Fitting TRI-CLAMP (3C series) 25 mm with 1/8" BSP male, PVDF	-	6	In stock	Enquiry
EM-3C100MG341612PV	Fitting TRI-CLAMP (3C series) 34 mm with 1/2" BSP male, PVDF	-	6	In stock	Enquiry
EM-3C100MG341614PV	Fitting TRI-CLAMP (3C series) 34 mm with 1/4" BSP male, PVDF	-	6	In stock	Enquiry
EM-3C100MG341638PV	Fitting TRI-CLAMP (3C series) 34 mm with 3/8" BSP male, PVDF	-	6	In stock	Enquiry
EM-3C100MG502612PP	Fitting TRI-CLAMP (3C series) 50.5 mm with 1/2" BSP male, polypropylene	-	6	In stock	Enquiry
EM-3C100MG502612PV	Fitting TRI-CLAMP (3C series) 50.5 mm with 1/2" BSP male, PVDF	-	6	In stock	Enquiry
EM-3C100MG502614PV	Fitting TRI-CLAMP (3C series) 50.5 mm with 1/4" BSP male, PVDF	-	6	In stock	Enquiry
EM-3C100MG502634PP	Fitting TRI-CLAMP (3C series) 50.5 mm with 3/4" BSP male, polypropylene	-	6	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight TRI-CLAMP fitting with a BSP male thread 3C series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. The Tri-Clamp (Triclover) fitting is made in accordance with DIN 32676, ISO 2852 and BS 4825 standards and terminated with a BSP male thread. Supplied without a gasket, which should be ordered separately depending on the medium. Gaskets are available made of EPDM, FKM, Gylon® and PTFE. Material: polypropylene, PVDF. Working pressure: 6 bar.
