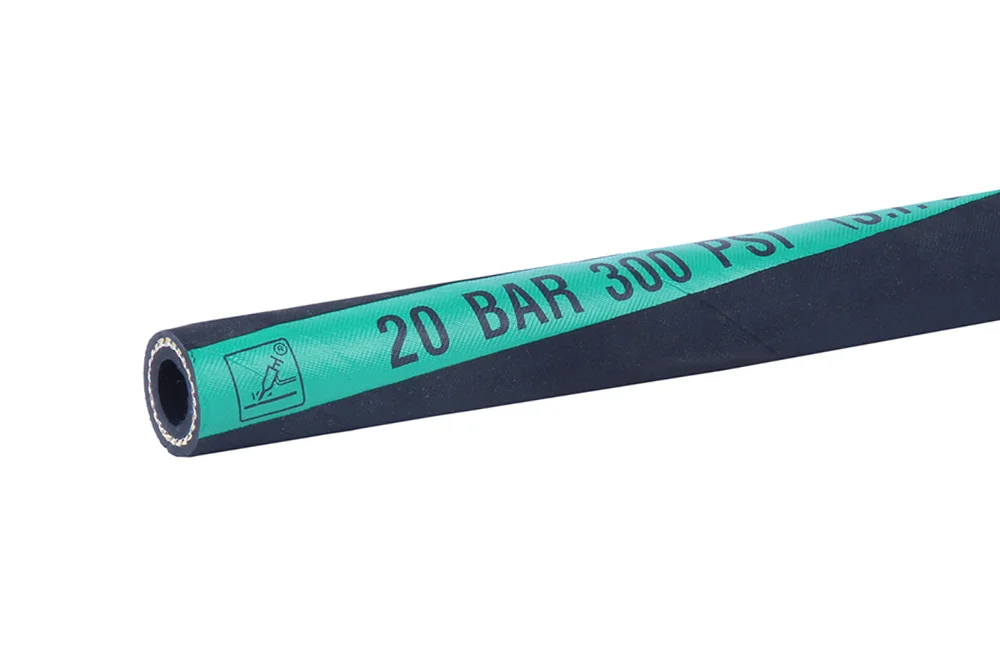

Sturdy industrial hose for water and air MONTANA 20®

, /
Sturdy industrial hose for water and air MONTANA 20®

Strong industrial suction hose for water and compressed air, designed for operation in harsh conditions in industry, road construction, and even in quarries. Inner layer resistant to oil mist. Abrasion and weather resistant. Widely used and proven in various industrial applications. Hose available in black and yellow. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black SBR rubber. Reinforcement: synthetic cord. Outer layer: black or yellow EPDM rubber. Working pressure: 20 bar. Operating temperature: from -30°C to +70°C.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
IV-MONTANA20-010MONTANA/20 hose 10x19 mm1020
IV-MONTANA20-010YMONTANA/20 hose 10x17 mm, yellow1020
IV-MONTANA20-013MONTANA/20 hose 13x23 mm1220
IV-MONTANA20-013YHose MONTANA/20 13x20 mm, yellow1220
IV-MONTANA20-016MONTANA/20 hose 16x26 mm1620
IV-MONTANA20-016YMONTANA/20 hose 16x26 mm, yellow1620
IV-MONTANA20-019MONTANA/20 hose 19x30 mm2020
IV-MONTANA20-019YMONTANA/20 hose 19x29 mm, yellow2020
IV-MONTANA20-022Hose MONTANA/20 22x32 mm2220
IV-MONTANA20-025MONTANA/20 hose 25x35 mm2520
IV-MONTANA20-025YHose MONTANA/20 25x36 mm, yellow2520
IV-MONTANA20-032MONTANA/20 hose 32x44 mm3220
IV-MONTANA20-032YMONTANA/20 hose 32x42 mm, yellow3220
IV-MONTANA20-035MONTANA/20 hose 35x45 mm3520
IV-MONTANA20-038MONTANA/20 hose 38x51 mm3820
IV-MONTANA20-038YHose MONTANA/20 38x49 mm, yellow3820
IV-MONTANA20-040MONTANA/20 hose 40x54 mm4020
IV-MONTANA20-045MONTANA/20 hose 45x58 mm4520
IV-MONTANA20-051MONTANA/20 hose 51x69 mm5020
IV-MONTANA20-051YHose MONTANA/20 51x67 mm, yellow5020
IV-MONTANA20-063Hose MONTANA/20 63.5x81.5 mm6520
IV-MONTANA20-063YMONTANA/20 hose 63.5x81 mm, yellow6520
IV-MONTANA20-076Hose MONTANA/20 76x94.5 mm7520
IV-MONTANA20-076YMONTANA/20 hose 76x93 mm, yellow7520
IV-MONTANA20-080MONTANA/20 hose 80x96 mm8020
IV-MONTANA20-090MONTANA/20 hose 90x110 mm9020
IV-MONTANA20-102MONTANA/20 hose 102x122 mm10020
IV-MONTANA20-102YHose MONTANA/20 102x120 mm, yellow10020
Sturdy industrial hose for water and air MONTANA 20®

Strong industrial suction hose for water and compressed air, designed for operation in harsh conditions in industry, road construction, and even in quarries. Inner layer resistant to oil mist. Abrasion and weather resistant. Widely used and proven in various industrial applications. Hose available in black and yellow. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black SBR rubber. Reinforcement: synthetic cord. Outer layer: black or yellow EPDM rubber. Working pressure: 20 bar. Operating temperature: from -30°C to +70°C.

Additional information

Material

SBR – styrene-butadiene rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

100, 25, 50, 60

Reinforcement

synthetic braid

Additional information

Material

SBR – styrene-butadiene rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

100, 25, 50, 60

Reinforcement

synthetic braid
