Can the Spigot to be welded to flange, carbon steel, type WRS be installed using an RS shell clamp or tightened with sleeve TI-LR/TI-LDR on EN 1092-1 PN16 flanges?

Yes. The Spigot to be welded to flange, carbon steel, type WRS Format described for flange EN 1092-1 PN16 is intended for installation with an RS shell clamp or for tightening with sleeve TI-LR / TI-LDR. It is compatible with EN 1092-1 PN16 flanges and can be welded to the flange and then secured using either the RS shell clamp or the TI-LR / TI-LDR sleeve as specified. Ensure welding and assembly follow relevant standards, manufacturer instructions and torque/installation values for the RS clamp or TI-LR/TI-LDR sleeves to maintain pressure rating and joint integrity.

Is Spigot to be welded to flange, carbon steel, type WRS compatible with RS shell clamps or TI-LR/TI-LDR sleeves on EN 1092-1 PN16?

Yes. Spigot to be welded to flange, carbon steel, type WRS Format described as "Welding stub, type WRS, for flange EN 1092-1 PN16 for installation with RS shell clamp or for tightening with sleeve TI-LR, TI-LDR. Material: carbon steel" is compatible with RS shell clamps and with TI-LR / TI-LDR sleeves on EN 1092-1 PN16 flanges, provided welding and dimensions meet EN 1092-1 PN16 and the clamp/sleeve manufacturerâs installation tolerances. Ensure correct face type, bore alignment and weld procedure to maintain pressure rating.

Does Spigot to be welded to flange, carbon steel, type WRS fit EN 1092-1 PN16 flanges using RS shell clamp or TI-LR/TI-LDR?

Yes. Spigot to be welded to flange, carbon steel, type WRS Format described as "Welding stub, type WRS, for flange EN 1092-1 PN16 for installation with RS shell clamp or for tightening with sleeve TI-LR, TI-LDR. Material: carbon steel." is intended to fit EN 1092-1 PN16 flanges when installed using either the RS shell clamp or tightened with the TI-LR / TI-LDR sleeve. Ensure correct dimensions and surface preparation per EN 1092-1 and the clamp/sleeve manufacturerâs installation instructions before welding and assembly.

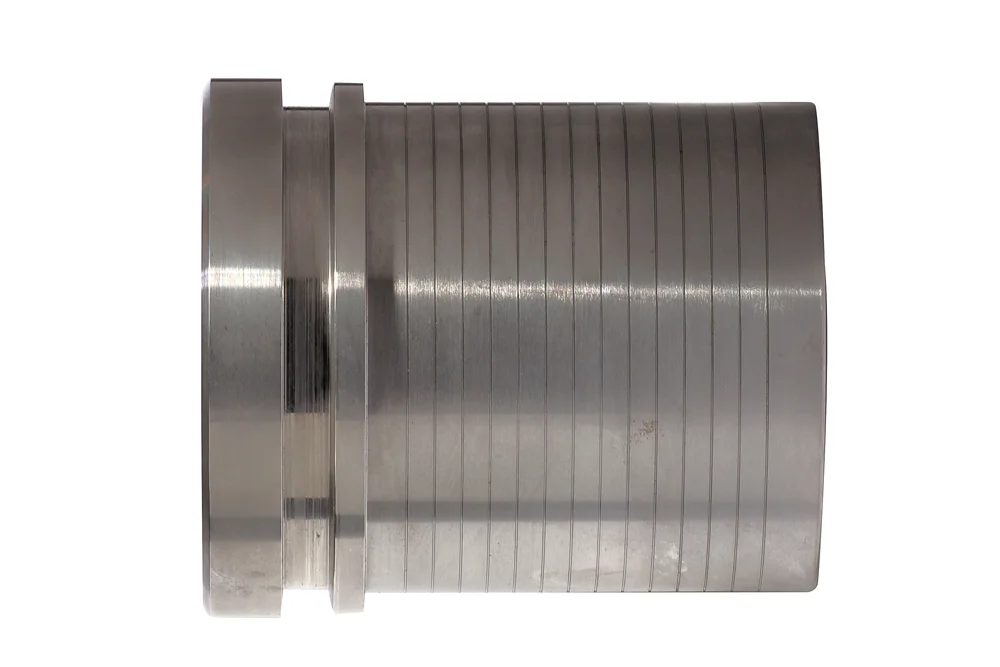

Spigot for welding for flange, steel carbon, type WRS

All products, Flange couplings/

Additional information

Material	CS – steel (cast iron)

A weld-on spigot, type WRS, for an EN 1092-1 PN16 flange, for mounting with an RS shell clamp or for crimping with a TI-LR, TI-LDR ferrule. Material: steel carbon.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions	Catalogue
TK-WRS-015-013	Spigot for welding (RS) DN15 for 13 mm hose, carbon steel	12	25	In stock	Enquiry	-
TK-WRS-020-019	Spigot for welding (RS) DN20 for 19 mm hose, carbon steel	20	25	In stock	Enquiry
TK-WRS-025-025	Spigot for welding (RS) DN25 for 25 mm hose, carbon steel	25	25	In stock	Enquiry	-
TK-WRS-032-032	Spigot for welding (RS) DN32 for 32 mm hose, carbon steel	32	25	In stock	Enquiry
TK-WRS-040-038	Spigot for welding (RS) DN40 for 38 mm hose, carbon steel	38	25	In stock	Enquiry	-
TK-WRS-040-040	Spigot for welding (RS) DN40 for 40 mm hose, carbon steel	40	25	In stock	Enquiry
TK-WRS-050-050	Spigot for welding (RS) DN50 for 50 mm hose, carbon steel	50	25	In stock	Enquiry
TK-WRS-050-051	Spigot for welding (RS) DN50 for 51 mm hose, carbon steel	50	25	In stock	Enquiry
TK-WRS-065-063	Spigot for welding (RS) DN65 for 63 mm hose, carbon steel	65	25	In stock	Enquiry	-
TK-WRS-065-065	Spigot for welding (RS) DN65 for 65 mm hose, carbon steel	65	25	In stock	Enquiry
TK-WRS-080-076	Spigot for welding (RS) DN80 for 76 mm hose, carbon steel	75	25	In stock	Enquiry	-
TK-WRS-080-080	Spigot for welding (RS) DN80 for 80 mm hose, carbon steel	80	25	In stock	Enquiry	-
TK-WRS-100-100	Spigot for welding (RS) DN100 for 100 mm hose, carbon steel	100	25	In stock	Enquiry	-
TK-WRS-100-102	Spigot for welding (RS) DN100 for 102 mm hose, carbon steel	100	25	In stock	Enquiry
TK-WRS-125-125	Spigot for welding (RS) DN125 for 125 mm hose, carbon steel	125	25	In stock	Enquiry
TK-WRS-125-127	Spigot for welding (RS) DN125 for 127 mm hose, carbon steel	125	25	In stock	Enquiry
TK-WRS-150-150	Spigot for welding (RS) DN150 for 150 mm hose, carbon steel	150	25	In stock	Enquiry	-
TK-WRS-150-152	Spigot for welding (RS) DN150 for 152 mm hose, carbon steel	150	25	In stock	Enquiry	-
TK-WRS-200-200	Spigot for welding (RS) DN200 for 200 mm hose, carbon steel	200	25	In stock	Enquiry
TK-WRS-200-203	Spigot for welding (RS) DN200 for 203 mm hose, carbon steel	200	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A weld-on spigot, type WRS, for an EN 1092-1 PN16 flange, for mounting with an RS shell clamp or for crimping with a TI-LR, TI-LDR ferrule. Material: steel carbon.
