Is MT1 steel braided thermoplastic hose available in a microperforated (MP) version for gases and air, and what applications is it suitable for?

Yes. MT1 steel braided thermoplastic hose is available in a microperforated (MP) version for gases and air . indicated by adding "MP" at the end of the product index. Suitable applications: - Conveying compressed air and other gases where microperforation is required (e.g., pneumatic tooling, air distribution lines, blow-off lines). - Industrial gas sampling and venting where controlled permeability is acceptable. - Low-pressure air curtains or aeration systems (observe temperature and pressure limits). - Any gas/air application demanding a lightweight, flexible hose with high mechanical resistance from a steel braid reinforcement. Key characteristics to observe: - Inner layer: polyamide; outer: polyurethane; reinforcement: steel braid. - Working pressure: 70â375 bar depending on diameter (ensure selected diameter meets system pressure). - Operating temperature: â40Â°C to +100Â°C (for water and air up to +70Â°C) . for gas/air use keep within +70Â°C.

Can MT1 steel braided thermoplastic hose handle isocyanates and polyols safely at high working pressures?

Yes. MT1 steel braided thermoplastic hose is specifically designed for solvents, paints, isocyanates and polyols, with a polyamide inner layer, steel-braid reinforcement and polyurethane outer cover. Its working pressure range (70â375 bar depending on diameter) and operating temperature range (â40Â°C to +100Â°C; up to +70Â°C for water/air) indicate it can safely handle isocyanates and polyols at high working pressures when used within those pressure, temperature and chemical-compatibility limits. Ensure you select the correct diameter/pressure rating and follow recommended installation, inspection and chemical-resistance guidance for your specific fluids and conditions.

Does MT1 steel braided thermoplastic hose resist chemical degradation from solvent-based coatings and cleaners?

Yes. MT1 steel braided thermoplastic hose is specifically designed for solvents, paints, isocyanates, polyols and water-based fluids, so its materials resist chemical degradation from typical solventâbased coatings and cleaners used in those applications. The hose constructionâpolyamide inner layer, steel braid reinforcement and polyurethane outer coverâoffers good chemical compatibility and mechanical protection. Operating temperature range (â40Â°C to +100Â°C) and working pressures (70â375 bar depending on diameter) indicate it is suitable for demanding solvent transfer conditions. Caveats: compatibility can vary with specific solvents, concentrations, temperatures and exposure duration. For aggressive or specialty solvents (strong acids, bases, certain chlorinated solvents, ketones at high temperature, or solvent blends), and for prolonged exposure or elevated temperatures, verify chemical compatibility with the hose manufacturer or test under actual service conditions. For gas/air use, choose the MP (microperforated) version if specified.

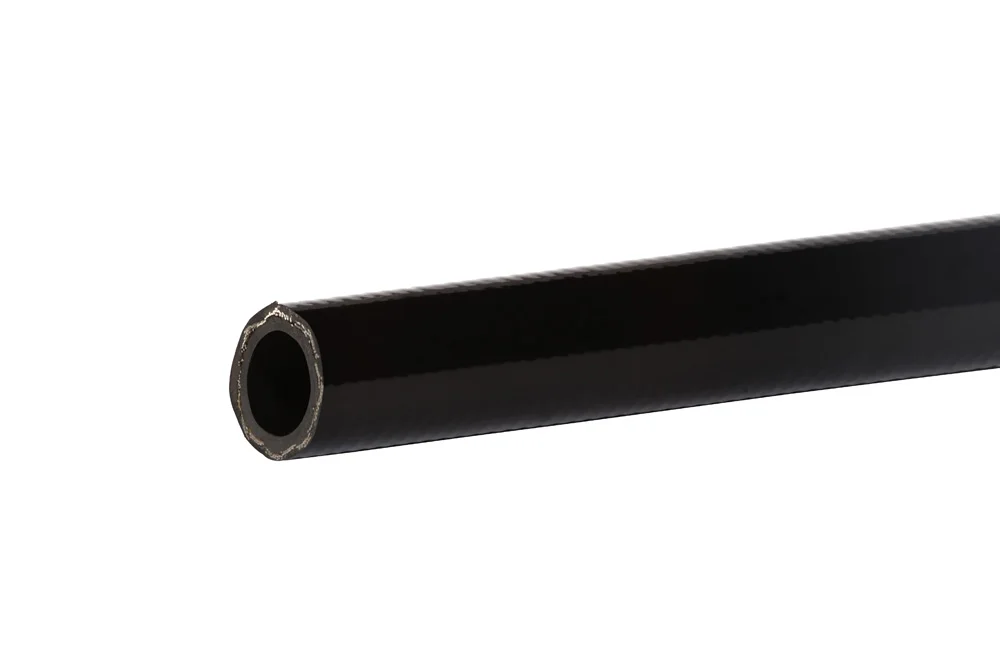

MT1 steel braided thermoplastic hose

All products, Thermoplastic hoses/

Additional information

Material	PA – polyamide
Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-40
Vacuum resistance	check
Reinforcement	steel braid

Lightweight, flexible hose designed for solvents, paints, isocyanates, polyols, and water-based fluids. Also available in a microperforated version (for gases and air), marked with the letters “MP” at the end of the index. Inner layer: polyamide. Reinforcement: steel braid. Outer layer: polyurethane. Working pressure: from 70 bar to 375 bar – depending on the diameter. Operating temperature: from -40°C to +100°C (for water and air up to +70°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
ZC-MT1-03	MT1 thermoplastic hose 1/8"	4	375	In stock	Enquiry
ZC-MT1-05	MT1 thermoplastic hose 3/16"	5	350	In stock	Enquiry
ZC-MT1-06	MT1 thermoplastic hose 1/4"	6	300	In stock	Enquiry
ZC-MT1-08	MT1 thermoplastic hose 5/16"	8	240	In stock	Enquiry
ZC-MT1-08MP	MT1 thermoplastic hose 5/16", microperforated	8	240	In stock	Enquiry
ZC-MT1-10	MT1 thermoplastic hose 3/8"	10	225	In stock	Enquiry
ZC-MT1-13	MT1 thermoplastic hose 1/2"	12	190	In stock	Enquiry
ZC-MT1-13MP	MT1 thermoplastic hose 1/2", microperforated	12	190	In stock	Enquiry
ZC-MT1-16	MT1 thermoplastic hose 5/8"	16	150	In stock	Enquiry
ZC-MT1-19	MT1 thermoplastic hose 3/4"	20	130	In stock	Enquiry
ZC-MT1-25	MT1 1" thermoplastic hose	25	105	In stock	Enquiry
ZC-MT1-32	MT1 thermoplastic hose 1.1/4"	32	70	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Lightweight, flexible hose designed for solvents, paints, isocyanates, polyols, and water-based fluids. Also available in a microperforated version (for gases and air), marked with the letters “MP” at the end of the index. Inner layer: polyamide. Reinforcement: steel braid. Outer layer: polyurethane. Working pressure: from 70 bar to 375 bar – depending on the diameter. Operating temperature: from -40°C to +100°C (for water and air up to +70°C).
