Is the R7 ANTIABRASION synthetic braided thermoplastic hose compatible with hydraulic oil, fuels, gases, air and water-based fluids across its stated temperature range?

Yes. The R7 ANTIABRASION synthetic braided thermoplastic hose is specified for hydraulic oil, fuels, gases, air and water-based fluids and its construction (polyester inner layer, one or two synthetic braids, microâperforated polyurethane outer layer) and standards compliance (SAE 100R7, EN855âR7, ISO 3949âR7) confirm compatibility across the stated operating conditions. Note the temperature limits: -40Â°C to +100Â°C generally, but for water and air the maximum is +70Â°C; ensure the hose diameter and corresponding working pressure (70â210 bar depending on size) suit your application.

Can the R7 ANTIABRASION synthetic braided thermoplastic hose withstand continuous exposure to fuels and gases at its maximum working pressure?

Yes - the R7 ANTIABRASION synthetic braided thermoplastic hose is designed for fuels and gases and, within its specified working pressure range (70â210 bar depending on diameter), can withstand continuous exposure to those media. Its polyester inner layer and one- or two-braid synthetic reinforcement provide chemical compatibility and strength for hydraulic oil installations, gases, air, fuels and water-based fluids. Ensure operation stays within the hoseâs rated working pressure and temperature limits (â40Â°C to +100Â°C; for water and air up to +70Â°C). For specific fuel types, pressure/temperature combinations, and long-term compatibility, verify with the manufacturerâs detailed chemical compatibility and service-life data.

Does the R7 ANTIABRASION synthetic braided thermoplastic hose require specific fittings for different fluids or pressures?

Yes. the R7 ANTIABRASION synthetic braided thermoplastic hose does require appropriate fittings matched to the fluid type, pressure rating and application conditions. Key points to follow: - Pressure rating: Choose fittings rated equal to or above the hose working pressure for the specific hose diameter (70â210 bar). Underrated fittings can lead to leaks or failure. - Fluid compatibility: Use fittings made of materials compatible with the conveyed media (hydraulic oils, gases, air, fuels, water-based fluids). For example, certain fuels or aggressive fluids may require corrosionâresistant alloys or specific seals. - Temperature limits: Ensure fitting materials and seals tolerate the hoseâs operating temperature range (â40Â°C to +100Â°C; for water and air up to +70Â°C). Some seal materials degrade at higher/lower temperatures. - Construction match: Select fittings suitable for synthetic braided thermoplastic hose construction (crimp, swaged, or mechanical clamps designed for oneâ or twoâbraid reinforcement). Proper hose/fitting assembly method is critical for secure connection. - Standards and certification: Prefer fittings compliant with relevant standards and installation practices for SAE/EN/ISO systems to maintain system integrity. - Application specifics: For gaseous or highâsafety applications, use fittings rated for gas service and any required safety features (e.g., locking collars, pressure relief provisions). In short, use fittings that match the R7 ANTIABRASION hoseâs pressure rating, fluid compatibility, temperature range and braid construction to ensure safe, durable performance.

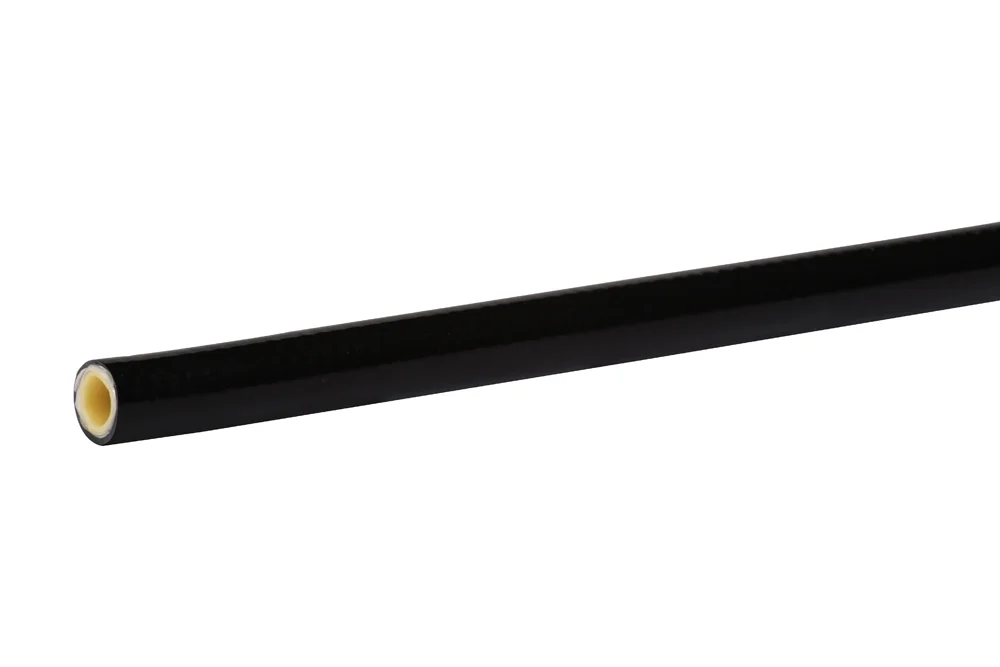

R7 ANTIABRASION synthetic braided thermoplastic hose

All products, Thermoplastic hoses/

Additional information

Material	PEE – polyester
Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-40
Vacuum resistance	check

Lightweight, flexible hose designed for hydraulic oil installations, gases, air, fuels, water-based fluids. Standards: SAE 100R7, EN855-R7, ISO 3949-R7. Inner layer: polyester. Reinforcement: one or two synthetic braids. Outer layer: micro-perforated polyurethane. Working pressure: from 70 bar to 210 bar, depending on hose diameter. Operating temperature: from -40°C to +100°C (for water and air up to +70°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TO-R7-04	Hose R7 ANTIABRASION 5/32"	4	210	In stock	Enquiry
TO-R7-05	Hose R7 ANTIABRASION 3/16"	5	210	In stock	Enquiry
TO-R7-06	Hose R7 ANTIABRASION 1/4"	6	210	In stock	Enquiry
TO-R7-08	R7 ANTIABRASION Hose 5/16"	8	190	In stock	Enquiry
TO-R7-10	Hose R7 ANTIABRASION 3/8"	10	160	In stock	Enquiry
TO-R7-13	Hose R7 ANTIABRASION 1/2"	12	140	In stock	Enquiry
TO-R7-16	Hose R7 ANTIABRASION 5/8"	16	105	In stock	Enquiry
TO-R7-19	Hose R7 ANTIABRASION 3/4"	20	90	In stock	Enquiry
TO-R7-25	Hose R7 ANTIABRASION 1"	25	70	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Lightweight, flexible hose designed for hydraulic oil installations, gases, air, fuels, water-based fluids. Standards: SAE 100R7, EN855-R7, ISO 3949-R7. Inner layer: polyester. Reinforcement: one or two synthetic braids. Outer layer: micro-perforated polyurethane. Working pressure: from 70 bar to 210 bar, depending on hose diameter. Operating temperature: from -40°C to +100°C (for water and air up to +70°C).
