Is the TrÃ³jnik gwintowany GW / GW / GW BSP z tworzywa PP, PVDF, seria 3F typ EM suitable for use with food-grade substances and compliant with relevant food safety standards?

Based on the provided description, the TrÃ³jnik gwintowany GW / GW / GW BSP z tworzywa PP, PVDF, seria 3F typ EM is intended for use across laboratories, medicine, pharmaceutical, chemical, and food industries and is made from polypropylene (PP) and PVDF.materials commonly used for food-contact applications. This indicates it is likely suitable for handling food-grade substances. However, suitability and compliance with food safety standards cannot be confirmed from the description alone. Important factors to verify: - Specific grade and food-contact certification of the PP and PVDF (e.g., EU Regulation 10/2011, Regulation (EC) No 1935/2004, and/or FDA CFR Title 21 approvals). - Certification or declaration of conformity from the manufacturer stating suitability for food contact. - Details on additives, pigments, or processing aids that might affect food safety. - Compatibility with the specific food types, temperatures, and cleaning/sanitization procedures used (e.g., hot-fill, sterilization). - Traceability and documentation for regulatory audits. Conclusion: The TrÃ³jnik gwintowany GW / GW / GW BSP z tworzywa PP, PVDF, seria 3F typ EM is likely appropriate for food-industry use given its materials and stated applications, but you should obtain manufacturer certifications (EU/FDA declarations of conformity) and confirm material grades and compatibility with your specific food processes to ensure full compliance with relevant food safety standards.

Does the TrÃ³jnik gwintowany GW / GW / GW BSP z tworzywa PP, PVDF, seria 3F typ EM withstand sterilization processes used in medical and laboratory settings?

TrÃ³jnik gwintowany GW / GW / GW BSP z tworzywa PP, PVDF, seria 3F typ EM can be compatible with some sterilization processes, but suitability depends on the material and method. PVDF offers good chemical resistance and higher thermal stability than polypropylene, so PVDF versions are more likely to tolerate common sterilization methods (e.g., chemical sterilants, autoclave at moderate temperatures) better than PP. Polypropylene has more limited heat resistance and may deform under high-temperature steam autoclaving. Neither material is universally guaranteed for all medical/lab sterilization cycles. Confirm compatibility by specifying the exact sterilization method (steam autoclave temperature/time, gamma irradiation, EO, chemical sterilants) and consult manufacturer data for temperature limits, chemical resistance and pressure/ seal integrity under those conditions.

Can the TrÃ³jnik gwintowany GW / GW / GW BSP z tworzywa PP, PVDF, seria 3F typ EM be used with corrosive chemical reagents?

TrÃ³jnik gwintowany GW / GW / GW BSP z tworzywa PP, PVDF, seria 3F typ EM can be used with many corrosive chemical reagents, but suitability depends on the specific chemical, its concentration, temperature and exposure duration. Polypropylene (PP) offers good chemical resistance to a wide range of acids, alkalis and solvents at moderate temperatures, while PVDF (polyvinylidene fluoride) provides superior resistance to stronger acids, halogenated hydrocarbons and more aggressive media, especially at higher temperatures. The productâs working pressure is 10 bar, which must be respected under operating conditions. Before use with corrosive reagents, verify: - Chemical compatibility of PP or PVDF with the specific reagent (including concentration and temperature). - That operating temperature and pressure do not exceed material limits (working pressure 10 bar). - That any seals or ancillary parts are also compatible with the reagent. For highly aggressive chemicals (e.g., strong oxidizers, concentrated nitric acid, some chlorinated solvents at elevated temperatures), prefer PVDF or consult a chemical compatibility chart and the manufacturerâs recommendations. When in doubt, contact the manufacturer or perform compatibility testing to ensure safe, long-term use.

Trójnik gwintowany GW / GW / GW BSP z tworzywa PP, PVDF, seria 3F typ EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

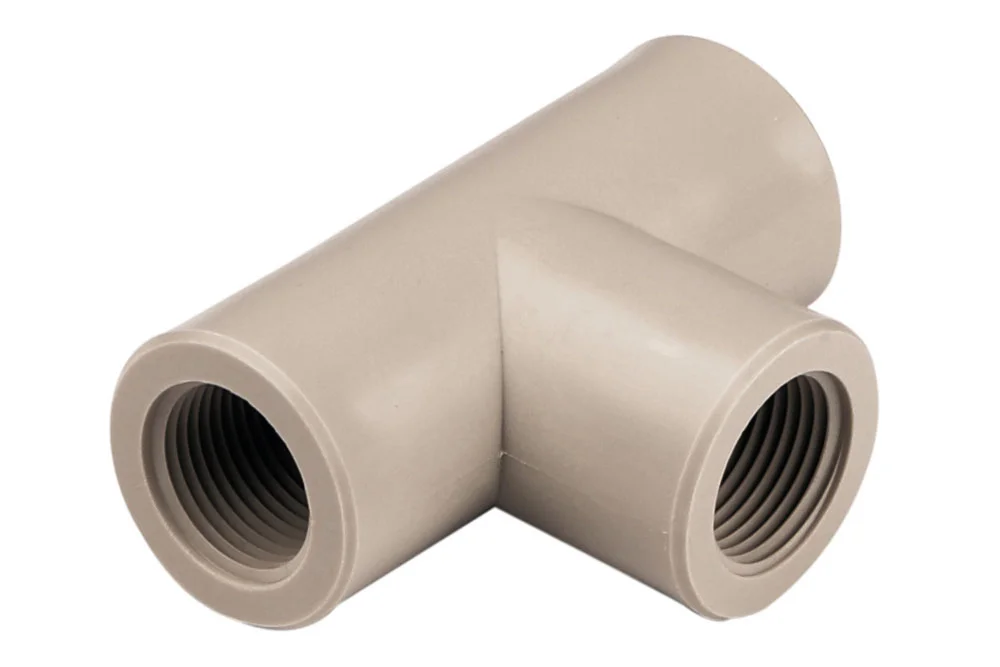

Threaded tee type “T” with three internal BSP threads, series 3F type EM. The tee has wide applications in laboratories, medicine, pharmaceutical, chemical, and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-3F344GG12PP	Tee (series 3F) with G1/2" BSP, polypropylene	-	10	In stock	Enquiry
EM-3F344GG12PV	Tee (series 3F) with G1/2" BSP, PVDF	-	10	In stock	Enquiry
EM-3F344GG14PP	Tee (series 3F) with G1/4" BSP, polypropylene	-	10	In stock	Enquiry
EM-3F344GG14PV	Tee (series 3F) with G 1/4" BSP, PVDF	-	10	In stock	Enquiry
EM-3F344GG18PP	Tee (series 3F) with G1/8" BSP, polypropylene	-	10	In stock	Enquiry
EM-3F344GG18PV	Tee (series 3F) with G 1/8" BSP, PVDF	-	10	In stock	Enquiry
EM-3F344GG38PP	Tee (series 3F) with G1/2" BSP 3/8", polypropylene	-	10	In stock	Enquiry
EM-3F344GG38PV	Tee (series 3F) with G thread BSP 3/8", PVDF	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Threaded tee type “T” with three internal BSP threads, series 3F type EM. The tee has wide applications in laboratories, medicine, pharmaceutical, chemical, and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.
