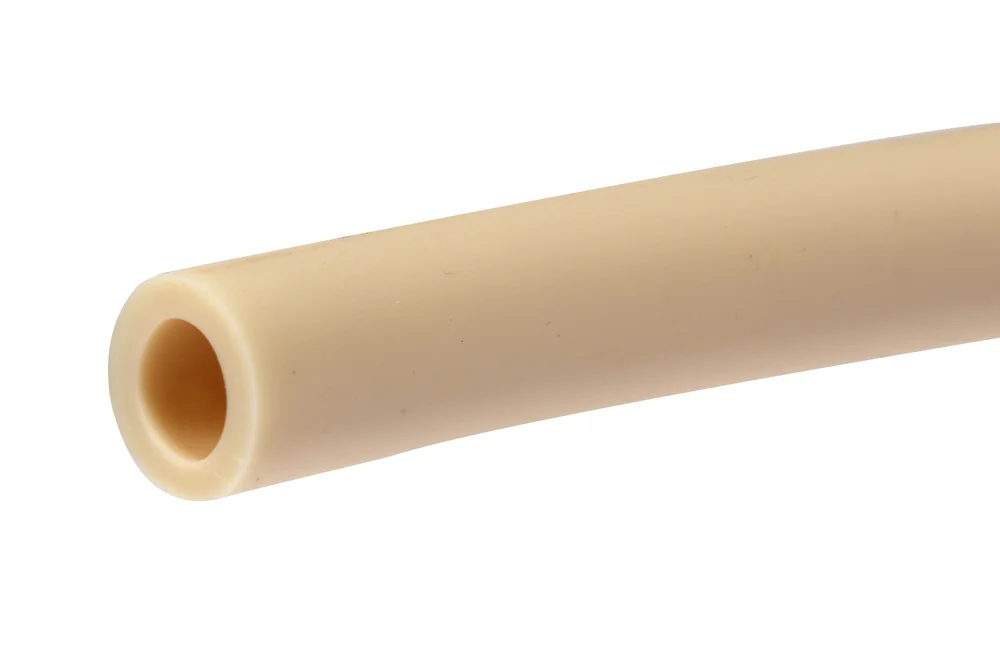

TYGON® A-60-C universal temperature-resistant food hose for peristaltic pumps

Creamy-beige flexible hose, odorless and tasteless, non-toxic. Resistant to temperatures ranging from -60°C to +135°C. Extremely flexible, elastic, with high fatigue resistance to deformation, abrasion-resistant. Excellent for use in peristaltic pumps. Used for dispensing and portioning cold and hot food products, for soap, detergents, and disinfectants, for paints and toners, pesticides and fertilizers, as well as in laboratories. The soft hose material (61° Shore-A) is highly flexible and provides excellent longevity of up to 1000 hours of operation in a peristaltic pump. The hose is an alternative to commonly used PVC or silicone hoses. It has good chemical resistance to a range of chemicals, particularly acids and bases, oxidizing agents such as hydrogen peroxide, sodium hypochlorite, or ozone. Resistant to a variety of animal and vegetable fats. Not recommended for hydrocarbons. Resistant to aging and UV radiation. Meets FDA 21 CFR 177.2600 requirements for food contact. Multiple sterilization possible with steam in autoclaves, CIP and SIP cleaning in the installation, ethylene oxide, or radiation methods. Full hose roll length: 15 m. Material: TPE (Norprene® – thermoplastic elastomer). Maximum operating temperature: up to +135°C. Brittleness temperature: -60°C. Hardness: 61° Shore (A). Density: 0.98 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
VE-AZT00003TYGON A-60-C hose 1.6x4.8 mm22.3
VE-AZT00004TYGON A-60-C hose 3x5 mm31
VE-AZT00007TYGON A-60-C hose 3.2x6.4 mm31.3
VE-AZT00008TYGON A-60-C hose 4x6 mm40.8
VE-AZT00009TYGON A-60-C hose 4x8 mm41.4
VE-AZT00010TYGON A-60-C hose 6x10 mm61
VE-AZT00012TYGON A-60-C hose 4.8x8 mm50.9
VE-AZT00017TYGON A-60-C hose 6.4x9.6 mm60.7
VE-AZT00018TYGON A-60-C hose 7x11 mm60.8
VE-AZT00019TYGON A-60-C hose 6.4x12.8 mm61.3
VE-AZT00022Hose TYGON A-60-C 8x11.2 mm80.6
VE-AZT00023TYGON A-60-C hose 8x12 mm80.8
VE-AZT00027TYGON A-60-C hose 9.5x12.7 mm100.5
VE-AZT00028TYGON A-60-C hose 10x14 mm100.6
VE-AZT00029TYGON A-60-C hose 9.5x15.9 mm100.9
VE-AZT00038TYGON A-60-C hose 12.7x19.1 mm120.7
VE-AZT00046Hose TYGON A-60-C 15.9x22.3 mm160.6
VE-AZT00053Hose TYGON A-60-C 19x25.4 mm200.5

Creamy-beige flexible hose, odorless and tasteless, non-toxic. Resistant to temperatures ranging from -60°C to +135°C. Extremely flexible, elastic, with high fatigue resistance to deformation, abrasion-resistant. Excellent for use in peristaltic pumps. Used for dispensing and portioning cold and hot food products, for soap, detergents, and disinfectants, for paints and toners, pesticides and fertilizers, as well as in laboratories. The soft hose material (61° Shore-A) is highly flexible and provides excellent longevity of up to 1000 hours of operation in a peristaltic pump. The hose is an alternative to commonly used PVC or silicone hoses. It has good chemical resistance to a range of chemicals, particularly acids and bases, oxidizing agents such as hydrogen peroxide, sodium hypochlorite, or ozone. Resistant to a variety of animal and vegetable fats. Not recommended for hydrocarbons. Resistant to aging and UV radiation. Meets FDA 21 CFR 177.2600 requirements for food contact. Multiple sterilization possible with steam in autoclaves, CIP and SIP cleaning in the installation, ethylene oxide, or radiation methods. Full hose roll length: 15 m. Material: TPE (Norprene® – thermoplastic elastomer). Maximum operating temperature: up to +135°C. Brittleness temperature: -60°C. Hardness: 61° Shore (A). Density: 0.98 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

135

Vacuum resistance

yes

Standard length [m]

15

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

135

Vacuum resistance

yes

Standard length [m]

15
