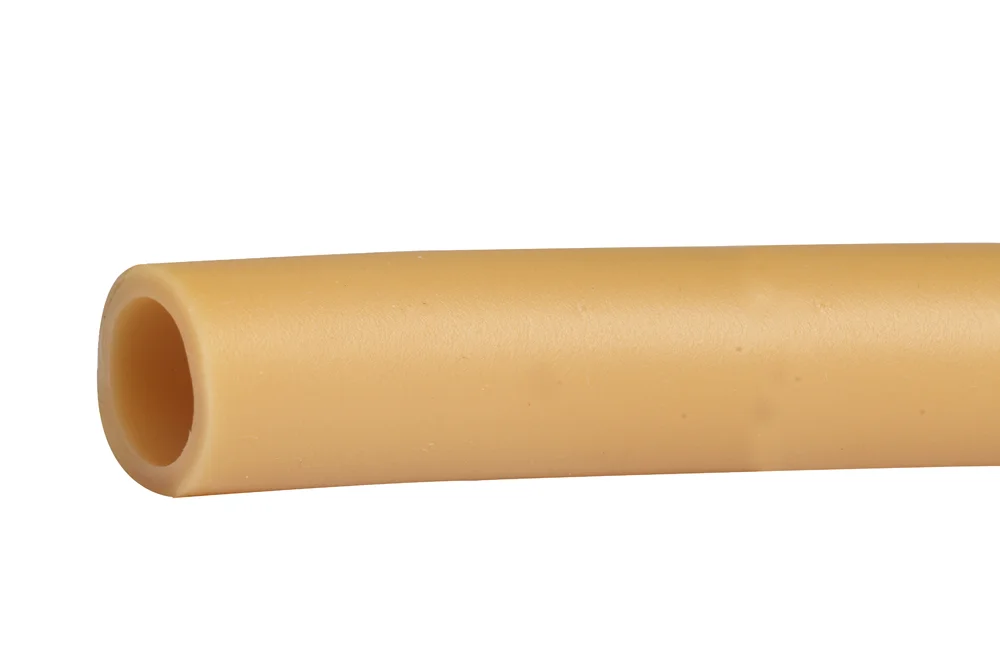

Universal, soft, flexible, and stretchable hose made of light brown natural rubber VERSILON™ GA
Known and proven for years, a lightweight and soft natural rubber hose in light brown color. Easy to install due to its softness (hardness 40° Shore – A), flexibility, and elasticity (maximum elongation 500%). It has properties similar to latex. Abrasion-resistant, with good resistance to acids and bases. Used for liquids and gases, for various industrial applications such as dispensing and dosing soaps and detergents, alcoholic and dairy products, laboratories. Sterilization with steam for 30 minutes (1 bar, 141°C) or ethylene oxide. Full hose roll length is 50 m (from inner diameter 7 mm – 25 m). The specified working pressure is determined relative to the burst pressure with a safety factor of 1:5. Material: natural rubber (NR). Operating temperature: from -35°C to +70°C (120°C for moist heat). Brittleness temperature: -40°C. Hardness: 40° Shore (A). Density: 0.98 g/cm³. Note: Product packaged in the Clean Zone of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| VE-702030 | VERSILON GA hose 2x4 mm | 2 | 0.5 | |
| VE-702075 | VERSILON GA hose 3x5 mm | 3 | 0.46 | |
| VE-702195 | VERSILON GA hose 4x6 mm | 4 | 0.36 | |
| VE-702210 | VERSILON GA hose 4x7 mm | 4 | 0.54 | |
| VE-702315 | VERSILON hose GA 5x8 mm | 5 | 0.46 | |
| VE-702345 | VERSILON GA hose 5x10 mm | 5 | 0.63 | |
| VE-702405 | VERSILON GA hose 6x9 mm | 6 | 0.37 | |
| VE-702420 | VERSILON GA hose 6x10 mm | 6 | 0.45 | |
| VE-702465 | VERSILON hose GA 7x10 mm | 6 | 0.31 | |
| VE-702480 | VERSILON hose GA 7x11 mm | 6 | 0.27 | |
| VE-702525 | VERSILON GA hose 8x12 mm | 8 | 0.37 | |
| VE-702555 | VERSILON hose GA 8x16 mm | 8 | 0.61 | |
| VE-702585 | VERSILON hose GA 10x14 mm | 10 | 0.37 | |
| VE-702600 | VERSILON hose GA 10x15 mm | 10 | 0.34 | |
| VE-702645 | VERSILON hose GA 18x24 mm | 18 | 0.32 |
Known and proven for years, a lightweight and soft natural rubber hose in light brown color. Easy to install due to its softness (hardness 40° Shore – A), flexibility, and elasticity (maximum elongation 500%). It has properties similar to latex. Abrasion-resistant, with good resistance to acids and bases. Used for liquids and gases, for various industrial applications such as dispensing and dosing soaps and detergents, alcoholic and dairy products, laboratories. Sterilization with steam for 30 minutes (1 bar, 141°C) or ethylene oxide. Full hose roll length is 50 m (from inner diameter 7 mm – 25 m). The specified working pressure is determined relative to the burst pressure with a safety factor of 1:5. Material: natural rubber (NR). Operating temperature: from -35°C to +70°C (120°C for moist heat). Brittleness temperature: -40°C. Hardness: 40° Shore (A). Density: 0.98 g/cm³. Note: Product packaged in the Clean Zone of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
Additional information
| Material | NR – natural rubber |
|---|---|
| Maximum operating temperature [°C] | 70 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | no |
| Standard length [m] | 25, 50 |
Additional information
| Material | NR – natural rubber |
|---|---|
| Maximum operating temperature [°C] | 70 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | no |
| Standard length [m] | 25, 50 |
