HOSES AND FITTINGS FOR INDUSTRY

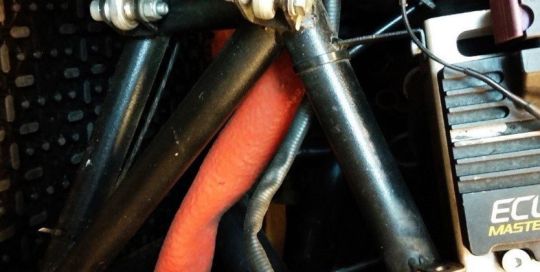

High temperature sleeve on electrical wire harness Application protection for wire harness on AGH Racing car Medium electric current Description: A wire harness on the internal combustion engine of AGH Racing car was routed near an exhaust collector, which means that it needed protection from high temperature. The team used a high temperature [...]

Rubber hose for nitric acid transfer Application nitric acid transfer in the production of fertilisers Medium nitric acid at a concentration of 50% Pressure up to 2 bar Working temperature up to +30°C Ambient temperature +30°C Description: Fully antistatic rubber hose MANICHEM MARBLE DN 32,  with a  very low coefficient of friction for  superior [...]

Polyamide hose in pneumatic shifting system on AGH Racing car Application connecting actuators to compressed air tank on AGH Racing car Medium compressed air Pressure 10 bar Description: While building an internal combustion engine for their race car, AGH Racing team faced the challenge of  finding a flexible connection between actuators and a [...]

High pressure hose assembly for water jet cutting Application water jet pastry cutting Medium woda Pressure 2500 bar Working temperature ambient Assembly technology external crimping with a special crimping machine and special dies Description: A water jet cutting machine for pastry was upgraded with Spir Star hose assembly, DN 5. Upgrading the machine involved [...]

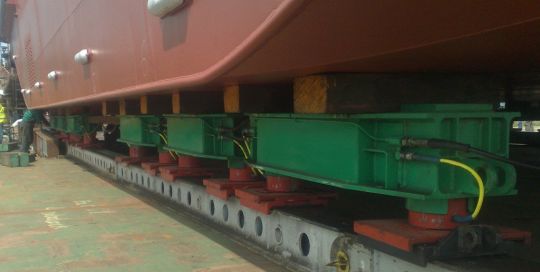

Thermoplastic high pressure Spir Star hose Application lifting large-size construction elements Medium hydraulic oil Pressure 700 bar Working temperature ambient Assembly technology external crimping with a special crimping machine and special dies Description: A fluorescent outer layer of these thermoplastic Spir Star Viper hose assemblies, DN 6 makes them perfectly visible even in [...]

Pressure washer hose 2500 bar Application high pressure surface cleaning Medium water Pressure 2500 bar Working temperature ambient Assembly technology external crimping with a special crimping machine and special dies Description: A flexible 6 braids Spir Star hose assembly, DN 8 fitted with a dry-break water spray gun with Monro Jet F25 nozzle. [...]

Antistatic PTFE hose assembly for hot cooking oil Application hot cooking oil transfer in food plants Medium hot cooking oil Pressure 1 bar Working temperature +200°C Description: CORROFLON DN 20 antistatic PTFE hose assembly in a rubber cover and a protective spiral assembled with stainless steel female thread fittings. Crimped with special ferrules [...]

Dairy coupling DIN 11851 on FOOD STAR/SD hose Application fermented milk beverages production line Medium milk Pressure 10 bar Working temperature ambient Description:  FOOD STAR/SD DN 51 rubber hose assembly with stainless steel dairy couplings DIN 11851. Crimped with 304 stainless steel ferrules. The fact that the hose withstands cleaning with chemical agents was a critical [...]

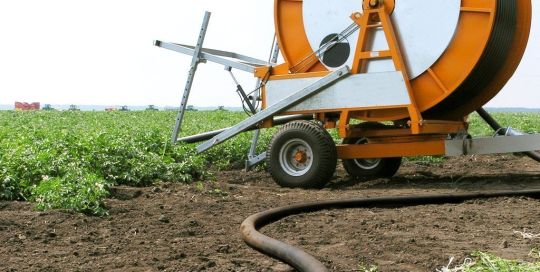

Reel sprinkler hose Application reel sprinkler system Medium water Pressure 9 bar Working temperature ambient Description: lightweight and flexible Hilcoflex hose proved to be the best solution for a reel sprinkler irrigation system. The hose comes with Perrot lever coupling. Assembled with HDC bolt clamps.

Sawdust extraction hose Application wood milling machine Medium sawdust Working temperature ambient Description: P1NPU SE-A AE ducting hose DN 160 mm used to transport sawdust to the main tank. Resistant to microbes and hydrolysis. Flame retardant conforms to DIN 4102 B1.
