Is the Ball valve 2-part with GW BSP stainless steel, H-710 suitable for both liquid and gas service at temperatures from -42Â°C to +204Â°C?

Yes. Ball valve 2-part with GW BSP stainless steel, H-710 is suitable for both liquid and gas service and is rated for operation from â42Â°C to +204Â°C. It is specified for liquids and gases, constructed from AISI 316 stainless steel with modified PTFE seals, pressure-tested with nitrogen, and certified to ISO 15848-1:2006 (E). Working pressure is up to 137 bar depending on temperature; ensure the specific pressure/temperature point for your application falls within the valveâs allowable limits.

Does the Ball valve 2-part with GW BSP stainless steel, H-710 meet ISO 15848-1:2006 (E) certification for fugitive emissions?

Yes. Ball valve 2-part with GW BSP stainless steel, H-710 meets ISO 15848-1:2006 (E) certification for fugitive emissions, as stated in the product description.

Can the Ball valve 2-part with GW BSP stainless steel, H-710 be used for precision instrumentation in pharmaceutical applications?

Yes. Ball valve 2-part with GW BSP stainless steel, H-710 is suitable for precision instrumentation in pharmaceutical applications, subject to specific system requirements and qualification steps. Supporting points: - Intended use: The product description explicitly lists pharmaceutical applications among suitable industries, indicating design intent for such environments. - Materials: Wetted parts are AISI 316 stainless steel and modified PTFE seals. common, corrosion-resistant, and broadly compatible with pharmaceutical process media. - Performance: Tight shut-off with low permissible internal leakage (0.1 NcmÂ³/min), low torque, and wide pressure rating (up to 137 bar depending on temperature) support accurate control and reliable isolation in instrumentation lines. - Cleanability and testing: Each valve is pressure-tested with nitrogen and certified to ISO 15848-1:2006 (E), which addresses fugitive emissions/seat and stem leakage. relevant for containment and regulatory compliance. - Temperature range: -42Â°C to +204Â°C covers most pharmaceutical processes. - Limitations to verify: BSP female thread connection, 2-piece design (may affect disassembly/clean-in-place compared with full-bore or three-piece valves), and seal materials (modified PTFE) should be confirmed compatible with specific media, CIP/SIP procedures, and sterilization temperatures/chemistries used. Also confirm surface finish (Ra), batch traceability, and any required pharmaceutical certifications (e.g., FDA/USP, 3.1/3.2 certificates) are available if mandated. Recommendation: Use Ball valve 2-part with GW BSP stainless steel, H-710 where material/temperature/pressure and leak-tightness meet process needs, and perform compatibility checks plus required qualification (material certificates, surface finish, CIP/SIP validation, and any regulatory documentation) before deployment.

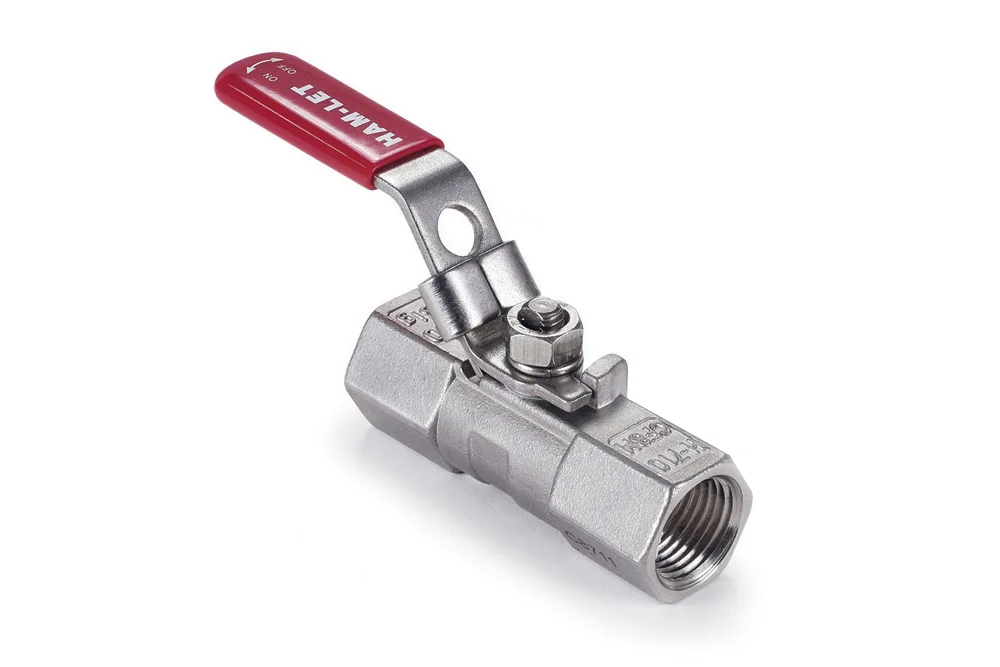

Ball valve 2-part with GW BSP stainless steel, H-710

All products, Straight screw connection/

Additional information

Material	SS – stainless steel

Compact, two-piece medium-pressure ball valve designed for demanding general applications. It can be used for precision instrumentation in the chemical, petrochemical, pharmaceutical, energy, and process engineering industries – for liquids and gases. Intended for pipeline installation. The valve features a large size range to ensure sufficiently high flow, tight shut-off (permissible internal leakage through the ball seal 0.1 Ncm³/min), high durability, and low torque. Designed for operation in fully open or fully closed positions. Each valve is pressure tested with nitrogen. Certified according to ISO 15848-1:2006 (E). Body material: AISI 316 steel. Ball and stem material: AISI 316 steel. Lever material: AISI 304 steel, PVC. Ball seal: modified PTFE. Stem seal: PTFE. Operating temperature: from -42°C to +204°C. Working pressure: up to 137 bar (depending on temperature). Connection: BSP female thread.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-H710-SS-G-04-TLD	2-piece ball valve, 2 x G 1/4" BSP, PTFE sealing, SS	5	135	In stock	Enquiry
HM-H710-SS-G-06-TLD	2-piece ball valve, 2 x G 3/8" BSP, PTFE sealing, SS	6	135	In stock	Enquiry
HM-H710-SS-G-08-TLD	2-piece ball valve, 2 x G 1/2" BSP, PTFE sealing, SS	8	135	In stock	Enquiry
HM-H710-SS-G-12-TLD	2-piece ball valve, 2 x G 3/4" BSP, PTFE sealing, SS	12	135	In stock	Enquiry
HM-H710-SS-G-16-TLD	2-piece ball valve, 2 x 1" BSP female thread, PTFE sealing, stainless steel	16	135	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Compact, two-piece medium-pressure ball valve designed for demanding general applications. It can be used for precision instrumentation in the chemical, petrochemical, pharmaceutical, energy, and process engineering industries – for liquids and gases. Intended for pipeline installation. The valve features a large size range to ensure sufficiently high flow, tight shut-off (permissible internal leakage through the ball seal 0.1 Ncm³/min), high durability, and low torque. Designed for operation in fully open or fully closed positions. Each valve is pressure tested with nitrogen. Certified according to ISO 15848-1:2006 (E). Body material: AISI 316 steel. Ball and stem material: AISI 316 steel. Lever material: AISI 304 steel, PVC. Ball seal: modified PTFE. Stem seal: PTFE. Operating temperature: from -42°C to +204°C. Working pressure: up to 137 bar (depending on temperature). Connection: BSP female thread.
