Is the Ball valve 2-part with GW NPT stainless steel, H-710 suitable for both liquid and gas applications at pressures up to 137 bar?

Ball valve 2-part with GW NPT stainless steel, H-710 . Yes. According to the provided description, this compact two-piece medium-pressure ball valve is explicitly designed for liquids and gases and is intended for pipeline installation in demanding instrumentation and process applications. It is constructed from AISI 316 (body, ball, stem) with PTFE-based seals, certified per ISO 15848-1:2006 (E), pressure tested with nitrogen, and rated for working pressures up to 137 bar (depending on temperature). Operating temperature range is â42Â°C to +204Â°C. Therefore, Ball valve 2-part with GW NPT stainless steel, H-710 is suitable for both liquid and gas service at pressures up to 137 bar, provided the specific operating temperature and application conditions fall within the valveâs stated temperature-dependent pressure limits and compatibility of materials with the media.

Can the Ball valve 2-part with GW NPT stainless steel, H-710 maintain tight shut-off at low temperatures down to -42Â°C?

Ball valve 2-part with GW NPT stainless steel, H-710 - Yes. The valve is specified for an operating temperature range from â42Â°C to +204Â°C and uses modified PTFE ball seals and PTFE stem seals, stainless AISI 316 wetted parts, and pressure testing per nitrogen with ISO 15848-1:2006 (E) certification. Permissible internal leakage through the ball seal is 0.1 NcmÂ³/min, indicating tight shut-off performance. Therefore, when installed and operated within its rated limits (temperature, pressure up to 137 bar depending on temperature), it can maintain tight shut-off down to â42Â°C.

Does the Ball valve 2-part with GW NPT stainless steel, H-710 meet ISO 15848-1:2006 (E) fugitive emissions standards?

Yes. Ball valve 2-part with GW NPT stainless steel, H-710 meets ISO 15848-1:2006 (E) fugitive emissions standards. The product description explicitly states it is "Certified according to ISO 15848-1:2006 (E)." The valveâs constructionâAISI 316 body, PTFE/modified PTFE seals, tested with nitrogen, and designed for tight shut-off (internal leakage through the ball seal 0.1 NcmÂ³/min)âsupports compliance with fugitive emissions requirements over the specified temperature (â42Â°C to +204Â°C) and pressure (up to 137 bar) ranges.

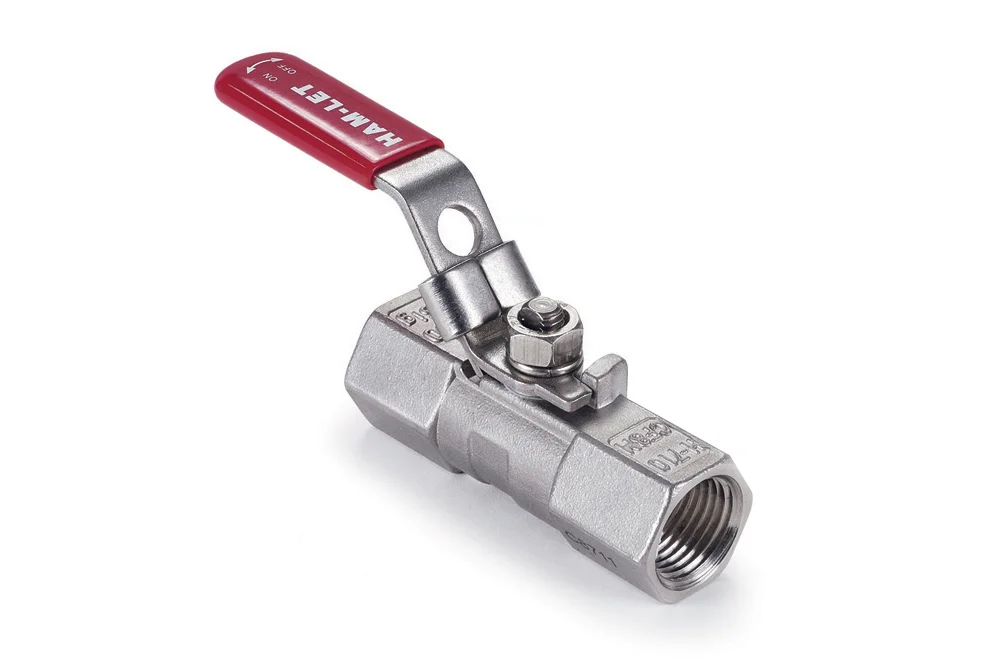

Ball valve 2-piece with NPT female thread steel stainless, H-710

All products, Straight screw connection/

Additional information

Material	SS – stainless steel

A compact, two-piece medium-pressure ball valve intended for demanding general applications. It can be used for precision fittings (instrumentation) for industry chemical, petrochemical, pharmaceutical, power generation, process engineering – for liquids and for gases. Intended for in-line mounting. The valve is characterized by a large size range to ensure an adequately large flow, tightness closing (permissible leakage internal through sealing the ball 0.1 Ncm 3 /min), high durable and low torque swivel. designed for use in position completely open or completely closed. Each valve is pressure-tested with nitrogen. Certified according to ISO 15848-1:2006 (E). Material the body: steel AISI 316. Material the ball and stem: steel AISI 316. Material lever: steel AISI 304, PVC. sealing the ball: modified PTFE. sealing stem: PTFE. Operating temperature: from -42°C to +204°C. pressure working: up to 137 bar (depending od temperature). connection: NPT female.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-H710-SS-N-04-TLD	Valve ball 2-piece, 2 x 1/4" NPT female, seal modified PTFE, SS	5	135	In stock	Enquiry
HM-H710-SS-N-06-TLD	Valve ball 2-piece, 2 x 3/8" NPT female, seal modified PTFE, SS	6	135	In stock	Enquiry
HM-H710-SS-N-08-TLD	Valve ball 2-piece, 2 x 1/2" NPT female, seal modified PTFE, SS	8	135	In stock	Enquiry
HM-H710-SS-N-12-TLD	Valve ball 2-piece, 2 x 3/4" NPT female, seal modified PTFE, SS	12	135	In stock	Enquiry
HM-H710-SS-N-16-TLD	Valve ball 2-piece, 2 x 1" NPT female, seal modified PTFE, SS	16	135	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A compact, two-piece medium-pressure ball valve intended for demanding general applications. It can be used for precision fittings (instrumentation) for industry chemical, petrochemical, pharmaceutical, power generation, process engineering – for liquids and for gases. Intended for in-line mounting. The valve is characterized by a large size range to ensure an adequately large flow, tightness closing (permissible leakage internal through sealing the ball 0.1 Ncm 3 /min), high durable and low torque swivel. designed for use in position completely open or completely closed. Each valve is pressure-tested with nitrogen. Certified according to ISO 15848-1:2006 (E). Material the body: steel AISI 316. Material the ball and stem: steel AISI 316. Material lever: steel AISI 304, PVC. sealing the ball: modified PTFE. sealing stem: PTFE. Operating temperature: from -42°C to +204°C. pressure working: up to 137 bar (depending od temperature). connection: NPT female.
