Can the 90Â° hose end with GW BSP plastic PP, PVDF, series 1B type EM withstand short pressure spikes up to 30 bar at +20Â°C while its working pressure is 10 bar?

Yes. The 90Â° hose end with GW BSP plastic PP, PVDF, series 1B type EM Format has a rated working pressure of 10 bar, but it is explicitly specified to withstand short pressure spikes up to 30 bar at +20Â°C. Ensure correct installation (hose pushed fully onto the integrated connecting sleeve and secured with the knurled nut) and use hoses with the recommended materials and wall thickness (PVC, silicone, reinforced). Multiple installations are supported.

Is the 90Â° hose end with GW BSP plastic PP, PVDF, series 1B type EM suitable for multiple hose installations on a single line?

Yes. The 90Â° hose end with GW BSP plastic PP, PVDF, series 1B type EM is suitable for multiple hose installations on a single line. It is designed for flexible hoses (PVC, silicone) with specified wall thickness; installation is by pushing the hose onto the integrated connecting sleeve and locking with the knurled nut, and the description explicitly states multiple installations are possible. Working pressure is 10 bar (short spikes up to 30 bar at +20Â°C). Ensure hose material and dimensions match the fitting specifications for secure, leak-free operation.

Can the 90Â° hose end with GW BSP plastic PP, PVDF, series 1B type EM be used with silicone hoses reinforced to the specified wall thickness?

Yes. The 90Â° hose end with GW BSP plastic PP, PVDF, series 1B type EM can be used with silicone hoses reinforced to the specified wall thickness. The fitting is specifically designed for flexible hoses (PVC, silicone) with the required reinforcement and wall thickness; installation is by pushing the hose onto the integrated connecting sleeve and securing it with the knurled nut, which clamps the hose. The assembly supports multiple installations and the fitting is rated for a working pressure of 10 bar, with short pressure spikes up to 30 bar at +20Â°C. Ensure the silicone hose matches the specified inner diameter and reinforced wall thickness for a proper seal and safe operation.

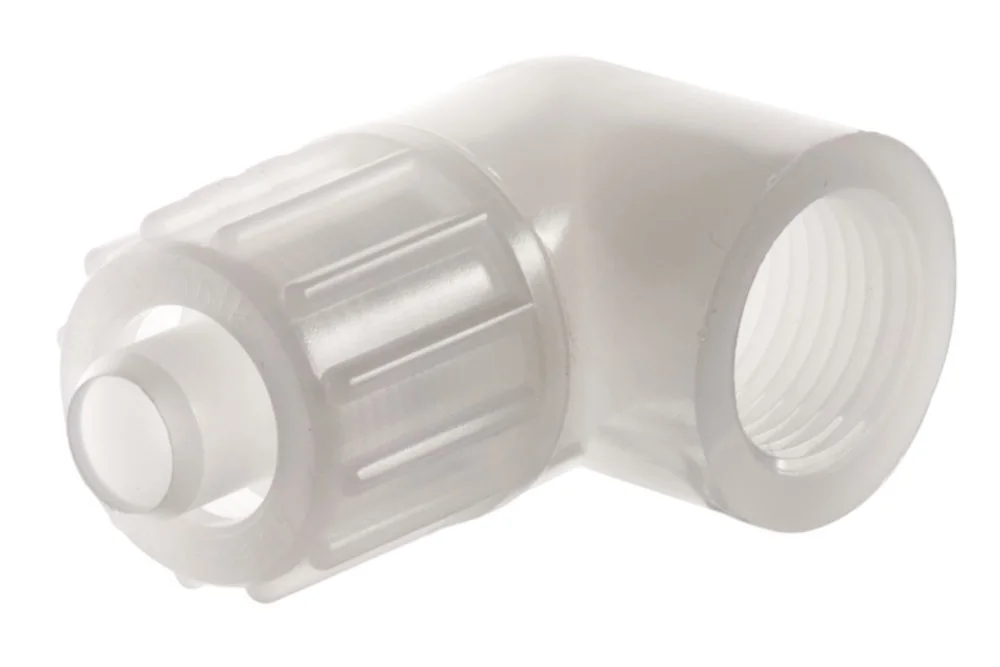

90° hose end with GW BSP plastic PP, PVDF, series 1B type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

90° hose fitting with BSP female thread series 1B type EM, widely used in laboratories, medicine, pharmaceutical, chemical, and food industries. Installation is done by pushing the hose onto the integrated connecting sleeve, and locking occurs via a knurled nut that clamps the flexible hose onto the connecting sleeve. Multiple installations are possible. Designed for flexible hoses made of materials (PVC, silicone) reinforced with a specific wall thickness. The fitting withstands short pressure spikes up to 30 bar at +20°C. Other sizes and diameters of fittings and couplings are available. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1B200FG4414PP	90° fitting (series 1B) with BSP 1/4" female thread, hose 6x12 mm, polypropylene	6	10	In stock	Enquiry
EM-1B200FG4438PP	90° fitting (series 1B) with BSP 3/8" female thread, hose 6x12 mm, polypropylene	6	10	In stock	Enquiry
EM-1B200FG4438PV	90° fitting (series 1B) with BSP 3/8" female thread, hose 6x12 mm, PVDF	6	10	In stock	Enquiry
EM-1B200FG4514PP	90° fitting (series 1B) with BSP 1/4" female thread, hose 8x14 mm, polypropylene	8	10	In stock	Enquiry
EM-1B200FG4712PV	90° fitting (series 1B) with BSP 1/2" female thread, hose 9x15 mm, PVDF	8	10	In stock	Enquiry
EM-1B200FG4714PP	90° fitting (series 1B) with BSP 1/4" female thread, hose 9x15 mm, polypropylene	8	10	In stock	Enquiry
EM-1B200FG4738PP	90° fitting (series 1B) with BSP 3/8" female thread, hose 9x15 mm, polypropylene	8	10	In stock	Enquiry
EM-1B200FG4938PP	90° fitting (series 1B) with BSP 3/8" female thread, hose 10x16 mm, polypropylene	10	10	In stock	Enquiry
EM-1B200FG5212PP	90° fitting (series 1B) with BSP 1/2" female thread, hose 12x18 mm, polypropylene	12	10	In stock	Enquiry
EM-1B200FG5238PP	90° fitting (series 1B) with BSP 3/8" female thread, hose 12x18 mm, polypropylene	12	10	In stock	Enquiry
EM-1B200FG5612PV	90° fitting (series 1B) with BSP 1/2" female thread, hose 13x19 mm, PVDF	12	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° hose fitting with BSP female thread series 1B type EM, widely used in laboratories, medicine, pharmaceutical, chemical, and food industries. Installation is done by pushing the hose onto the integrated connecting sleeve, and locking occurs via a knurled nut that clamps the flexible hose onto the connecting sleeve. Multiple installations are possible. Designed for flexible hoses made of materials (PVC, silicone) reinforced with a specific wall thickness. The fitting withstands short pressure spikes up to 30 bar at +20°C. Other sizes and diameters of fittings and couplings are available. Material: polypropylene, PVDF. Working pressure: 10 bar.
