Can Hose end 90Â° to hose with BSP GZ plastic PP, PVDF, series 1D type EM be used with flexible PFA hoses that require flared connections?

Yes. Hose end 90Â° to hose with BSP GZ plastic PP, PVDF, series 1D type EM is designed specifically for flexible PFA hoses that require flared (thermally expanded) ends. The fitting accommodates the thermal expansion installation method, ensuring a tight, leak-free connection while minimizing particle deposition and bacterial accumulation. Made of polypropylene or PVDF and rated to 10 bar, it is suitable for laboratory, medical, pharmaceutical, chemical, and food industry applications where sanitary, contamination-free connections are required.

Is the Hose end 90Â° to hose with BSP GZ plastic PP, PVDF, series 1D type EM suitable for sterile PFA hoses with thermal flared ends?

Yes. The Hose end 90Â° to hose with BSP GZ plastic PP, PVDF, series 1D type EM is suitable for sterile PFA hoses with thermal flared ends. It is specifically designed for flexible PFA hoses that require thermal expansion (flared connection) at the ends, ensuring secure installation without particle deposition, bacterial accumulation, or medium leakage. Materials (PP, PVDF) and a working pressure of 10 bar make it appropriate for laboratory, medical, pharmaceutical, chemical, and food industry sterile applications.

Does the Hose end 90Â° to hose with BSP GZ plastic PP, PVDF, series 1D type EM prevent bacterial buildup in PFA flared connections?

Yes. Hose end 90Â° to hose with BSP GZ plastic PP, PVDF, series 1D type EM prevents bacterial buildup in PFA flared connections. The fitting is specifically designed for flexible PFA hoses that use a flared (thermal expansion) endâthis configuration eliminates dead spaces where particles and bacteria can accumulate. With smooth mating surfaces, leak-free sealing and materials (PP, PVDF) compatible with sanitary and chemical environments, the design minimizes particle deposition and bacterial accumulation while preventing medium leakage. Working pressure up to 10 bar supports reliable, contaminant-free operation in laboratory, medical, pharmaceutical, chemical and food applications.

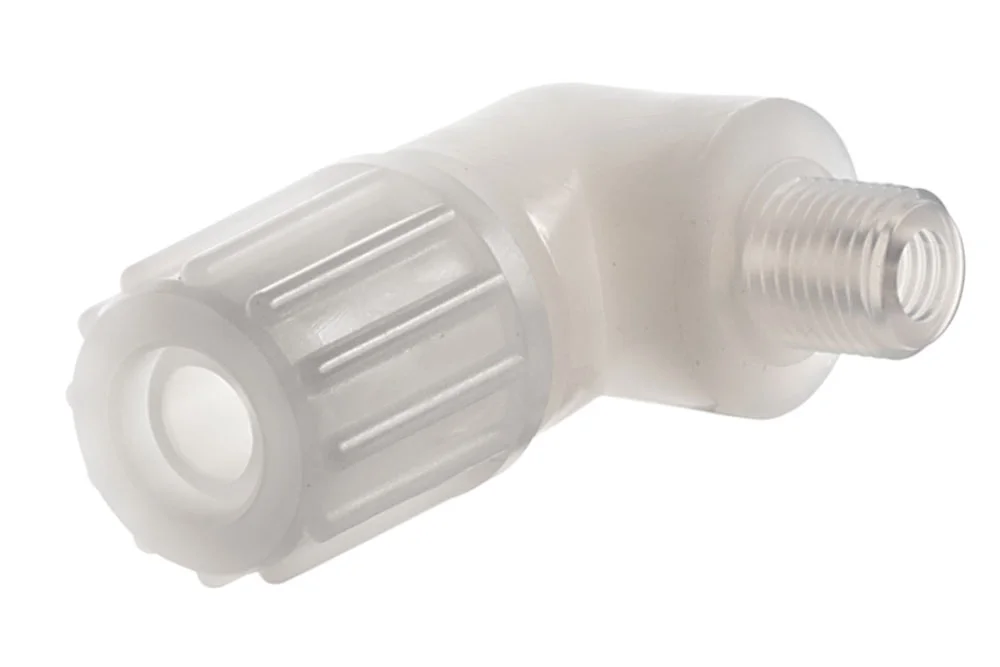

90° hose fitting with a BSP male thread of PP, PVDF plastic, 1D series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

90° hose fitting with a BSP male thread 1D series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. It is intended for flexible PFA hoses, whose ends must be thermally expanded for assembly (a so-called flared connection). This solution ensures no particle deposition, no bacterial build-up and elimination of medium leakage. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1D200MG0314PN	Fitting 90° (1D series) with 1/4" BSP male, hose 1/8" x 1/4", natural polypropylene	-	10	In stock	Enquiry
EM-1D200MG0314PV	Fitting 90° (1D series) with 1/4" BSP male, hose 1/8" x 1/4", PVDF	-	10	In stock	Enquiry
EM-1D200MG1114PN	Fitting 90° (1D series) with 1/4" BSP male, hose 1/4" x 3/8", natural polypropylene	-	10	In stock	Enquiry
EM-1D200MG1114PV	Fitting 90° (1D series) with 1/4" BSP male, hose 1/4" x 3/8", PVDF	-	10	In stock	Enquiry
EM-1D200MG1512PN	Fitting 90° (1D series) with 1/2" BSP male, hose 3/8" x 1/2", natural polypropylene	-	10	In stock	Enquiry
EM-1D200MG1512PV	Fitting 90° (1D series) with 1/2" BSP male, hose 3/8" x 1/2", PVDF	-	10	In stock	Enquiry
EM-1D200MG1514PN	Fitting 90° (1D series) with 1/4" BSP male, hose 3/8" x 1/2", natural polypropylene	-	10	In stock	Enquiry
EM-1D200MG1514PV	Fitting 90° (1D series) with 1/4" BSP male, hose 3/8" x 1/2", PVDF	-	10	In stock	Enquiry
EM-1D200MG2012PN	Fitting 90° (1D series) with 1/2" BSP male, hose 5/8" x 3/4", natural polypropylene	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° hose fitting with a BSP male thread 1D series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. It is intended for flexible PFA hoses, whose ends must be thermally expanded for assembly (a so-called flared connection). This solution ensures no particle deposition, no bacterial build-up and elimination of medium leakage. Material: polypropylene, PVDF. Working pressure: 10 bar.
