Can the 90Â° quick coupling socket for injection molds with hose end and valve, DYROS series 6 withstand continuous operation at 15 bar with Viton seals when used with cooling liquids?

Yes. The 90Â° quick coupling socket for injection molds with hose end and valve, DYROS series 6 is specified for cooling liquids and lists Viton seals with a working pressure of 15 bar. Its construction.brass body with treated stainlessâsteel retaining rings, springs and balls.plus the intended application (cooling liquids in plastic processing) indicates it is designed to withstand continuous operation at the rated pressure. Caveats: continuous life at 15 bar depends on the specific cooling fluid (chemical compatibility and temperature limits of Viton), fluid cleanliness (particulates can accelerate wear of moving parts and seats), and duty cycle (frequent coupling/uncoupling increases mechanical wear). For elevated temperatures, aggressive chemicals, or critical safety margins, verify fluid temperature and compatibility with Viton, and consider periodic inspection/replacement of seals.

Is the 90Â° quick coupling socket for injection molds with hose end and valve, DYROS series 6 compatible with aggressive cooling fluids at 15 bar?

Yes. The 90Â° quick coupling socket for injection molds with hose end and valve, DYROS series 6 is compatible with aggressive cooling fluids at 15 bar, provided those fluids are chemically compatible with brass and Viton seals. All components are brass with treated stainless steel springs/balls/retaining rings, Viton sealing, and a working pressure of 15 bar. Verify the specific aggressive fluidâs compatibility with brass and Viton (temperature and chemical resistance) before use.

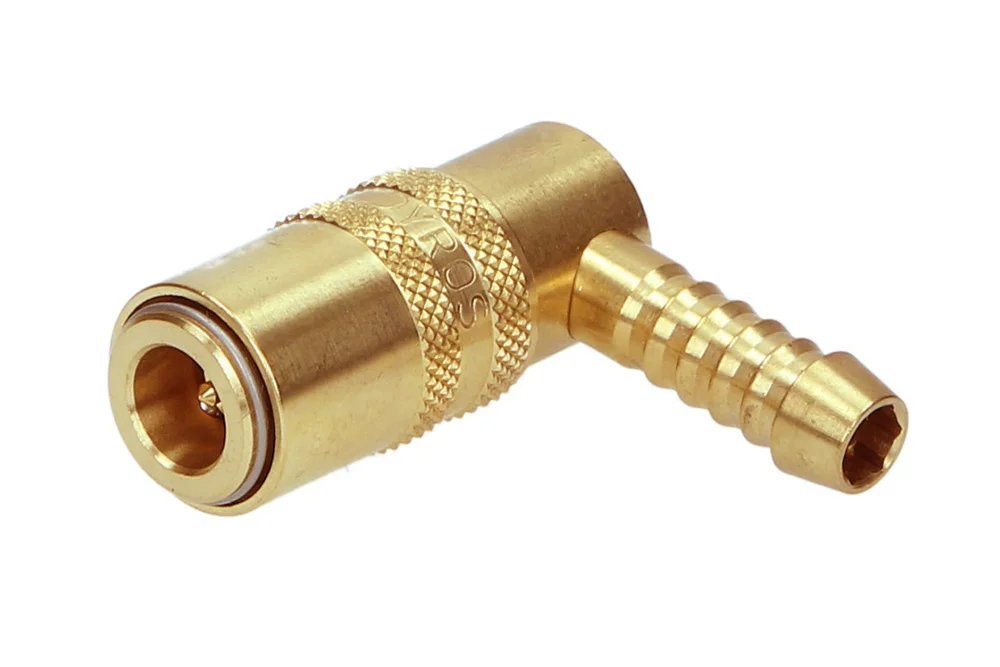

90° quick coupling socket for injection molds with hose end and valve, DYROS series 6

Additional information

Material	B – brass (bronze)

90° quick coupling socket DYROS series 6 with hose end and shut-off valve. Designed for cooling liquids in plastic processing, compressed air installations, gas cylinder applications, and other technical fields. Material: all components made of brass, while retaining rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DY-VK614-90	90° socket DN 6 with 1/4" hose connection, with valve	6	15	In stock	Enquiry
DY-VK615-90	90° socket DN 6 with end for hose 5/16", with valve	8	15	In stock	Enquiry
DY-VK616-90	90° socket DN 6 with end for 3/8" hose, with valve	10	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° quick coupling socket DYROS series 6 with hose end and shut-off valve. Designed for cooling liquids in plastic processing, compressed air installations, gas cylinder applications, and other technical fields. Material: all components made of brass, while retaining rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.
