Is BURGACLIP 90Â° tube end with R134 valve with UNF GW, steel, 54719 compatible with both HP (16 mm) and LP (13 mm) ports on 3090 type AC hoses?

Yes. BURGACLIP 90Â° tube end with R134 valve with UNF GW, steel, 54719 is described as compatible with 3090 type air conditioning hoses and is available with either the R134 HP (16 mm) or LP (13 mm) valve version with internal UNF thread. That means the product line includes versions specifically for the 16 mm highâpressure port and the 13 mm lowâpressure port used on 3090 hoses.so you must choose the correct variant (HP 16 mm or LP 13 mm) to match the port. The part itself allows connection of rubber hoses to AC system components; clips and clamps sold separately.

Can BURGACLIP 90Â° tube end with R134 valve with UNF GW, steel, 54719 be used interchangeably on 3090 type AC hoses for HP (16 mm) and LP (13 mm) valves?

Yes. BURGACLIP 90Â° tube end with R134 valve with UNF GW, steel, 54719 is designed for 3090 type air conditioning hoses and explicitly supports R134 HP (16 mm) or LP (13 mm) valves with internal UNF thread, so it can be used interchangeably on 3090 type AC hoses for the specified HP (16 mm) and LP (13 mm) fittings. Ensure appropriate clips/clamps are fitted (sold separately) and verify material and thread compatibility before installation.

Does BURGACLIP 90Â° tube end with R134 valve with UNF GW, steel, 54719 require different installation tools for HP (16 mm) vs LP (13 mm)?

BURGACLIP 90Â° tube end with R134 valve with UNF GW, steel, 54719 does require different installation tools for HP (16 mm) vs LP (13 mm). The product description specifies two valve sizes: high-pressure (HP) with a 16 mm dimension and low-pressure (LP) with a 13 mm dimension. Because the valve hex or nut sizes differ, you will need correspondingly sized wrenches or sockets to tighten and install them properly. Other installation steps and fittings (UNF internal thread, connection to 3090 type air conditioning hose, use of clips/clamps) remain the same, but use a 16 mm tool for the HP version and a 13 mm tool for the LP version to ensure correct torque and secure sealing.

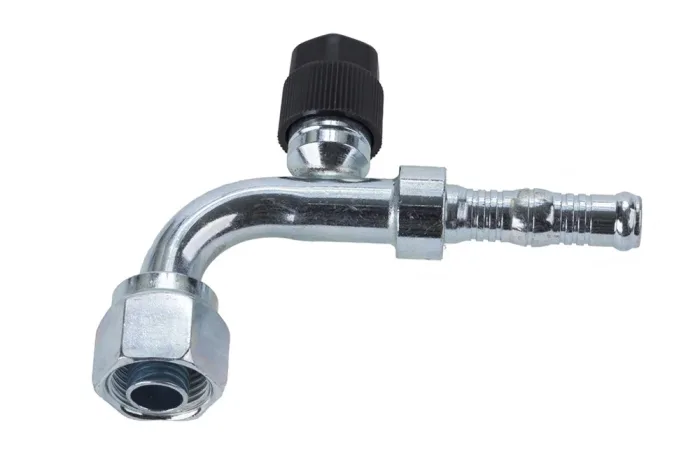

BURGACLIP 90° tube end with R134 valve with UNF GW, steel, 54719

Additional information

Material	CS – steel (cast iron)

90° tube end BURGACLIP with R134 HP (16 mm) or LP (13 mm) valve with internal UNF thread, for 3090 type air conditioning hose. Allows for the connection of rubber hoses to air conditioning system components. Clips and clamps are available as a separate assortment. Material: steel.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
BU-54719-06-06-HP-S	End 90° BC tube with valve R134 HP, GW 5/8", hose 5/16", steel	-	-
BU-54719-08-08-HP-S	End 90° BC tube with valve R134 HP, GW 3/4", hose 13/32", steel	-	-
BU-54719-10-10-HP-S	End 90° BC tube with valve R134 HP, GW 7/8", hose 1/2", steel	-	-
BU-54719-10-10-LP-S	End 90° BC tube with valve R134 LP, GW 7/8", hose 1/2", steel	-	-
BU-54719-10-12-LP-S	End 90° BC tube with valve R134 LP, GW 7/8", hose 5/8", steel	-	-
BU-54719-12-12-LP-S	End 90° BC tube with valve R134 LP, GW 1.1/16", hose 5/8", steel	-	-

90° tube end BURGACLIP with R134 HP (16 mm) or LP (13 mm) valve with internal UNF thread, for 3090 type air conditioning hose. Allows for the connection of rubber hoses to air conditioning system components. Clips and clamps are available as a separate assortment. Material: steel.
