Is the Adaptor for steam hose end with GZ, zinc-plated steel, GMB, type BOSS compatible with female spherical ends of different diameters and wing nut thread sizes?

Adaptor for steam hose end with GZ, zinc-plated steel, GMB, type BOSS is designed to mate with female spherical ends and to be tightened by a wing nut. Thanks to its conical surface with a polymer or copper insert, it seals against the spherical sealing surface and creates a steam- and high-temperature-resistant connection. However, compatibility depends on matching the spherical seat diameter and the wing nut thread: the wing nut thread on the adapter is larger than the external thread of the GMB adapter, and the adapter must match the diameter of the female spherical end and the wing nut/thread used. In practice this means the adaptor can be used with different female spherical ends and wing nuts only if those components share the correct mating diameters and compatible thread sizes; mismatched diameters or incompatible thread pitches will prevent a proper seal or tightening. For reliable use, verify that the female spherical end diameter and wing-nut/thread dimensions correspond to the Adaptor for steam hose end with GZ, zinc-plated steel, GMB, type BOSS specifications.

Can the Adaptor for steam hose end with GZ, zinc-plated steel, GMB, type BOSS withstand repeated thermal cycling at high steam temperatures?

Yes. The Adaptor for steam hose end with GZ, zinc-plated steel, GMB, type BOSS is designed for steam service and, per the provided spec, is made of galvanized steel with a polymer or copper conical insert and sealed by a wing nut. Rated working pressure 18 bar at +210Â°C and operating temperature up to +230Â°C, it is specified as resistant to steam and high temperature. Therefore it is suitable for repeated thermal cycling at high steam temperatures within those limits. For cycles exceeding +230Â°C, pressures above 18 bar, or aggressive chemical environments, consult manufacturer for fatigue/compatibility data.

Does the Adaptor for steam hose end with GZ, zinc-plated steel, GMB, type BOSS require special maintenance after exposure to saturated steam?

Adaptor for steam hose end with GZ, zinc-plated steel, GMB, type BOSS does not require special maintenance after exposure to saturated steam beyond standard inspection and care practices. Because it is made of galvanized (zincâplated) steel and designed for saturated steam service (working pressure 18 bar at +210Â°C, operating temperature up to +230Â°C) and features a polymer or copper insert that seals against the spherical surface, it is resistant to steam and high temperature. Recommended routine actions: - Inspect visually for mechanical damage, deformation or thread wear before reuse. - Check the polymer or copper sealing insert for cracks, compression set or erosion; replace if damaged. - Verify wing nut and mating threads for corrosion or galling; clean threads and apply appropriate anti-seize or highâtemperature lubricant only if compatible with steam service and sealing materials. - Ensure the connection still forms a tight seal during a test under working conditions. - If heavy scaling, chemical contamination or prolonged exposure beyond specified temperatures/pressures occurred, perform more thorough inspection and consider replacement.

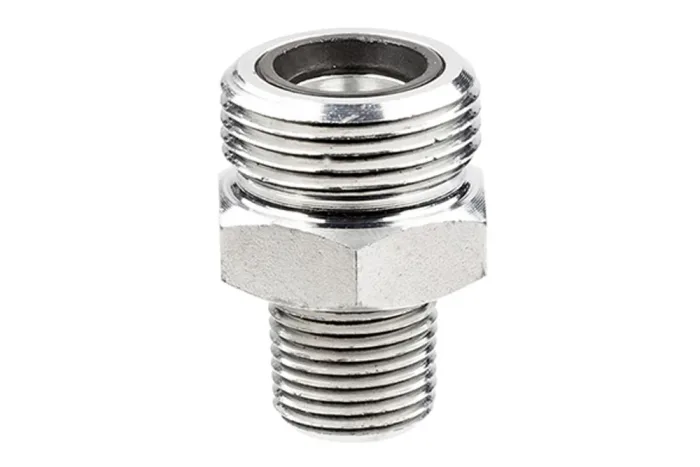

Adaptor for steam hose end with GZ, zinc-plated steel, GMB, type BOSS

All products, Steam hoses/

Additional information

Material	CS – steel (cast iron)

Adapter for spherical end and wing nut. Made of galvanized steel, it features a special polymer or copper insert on the conical surface that interacts with the spherical sealing surface of the end. It is tightened to the spherical end using a wing nut. This creates a tight connection resistant to steam and high temperature, which is also easy to unscrew and screw without the use of tools. The thread of the wing nut has a different (larger) size than the external thread of the GMB adapter. The use of the adapter allows for the creation of various connections, depending on the components used in the installation. Material: galvanized steel. Working pressure: 18 bar (+210°C) – saturated steam. Operating temperature: up to +230°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DX-GMB-06-NPT	Adaptor GMB, GZ NPT 3/8"	-	18	In stock	Enquiry
DX-GMB-08-NPT	Adaptor GMB, GZ NPT 1/2"	-	18	In stock	Enquiry
DX-GMB-12-NPT	Adaptor GMB, GZ NPT 3/4"	-	18	In stock	Enquiry
DX-GMB-16	Adaptor GMB, GZ BSPT 1"	-	18	In stock	Enquiry
DX-GMB-16-NPT	Adaptor GMB, GZ NPT 1"	-	18	In stock	Enquiry
DX-GMB-20	Adaptor GMB, GZ BSPT 1.1/4"	-	18	In stock	Enquiry
DX-GMB-20-NPT	Adaptor GMB, GZ NPT 1.1/4"	-	18	In stock	Enquiry
DX-GMB-24	Adaptor GMB, GZ BSPT 1.1/2"	-	18	In stock	Enquiry
DX-GMB-24-NPT	Adaptor GMB, GZ NPT 1.1/2"	-	18	In stock	Enquiry
DX-GMB-32	Adaptor GMB, GZ BSPT 2"	-	18	In stock	Enquiry
DX-GMB-32-NPT	Adaptor GMB, GZ NPT 2"	-	18	In stock	Enquiry
DX-GMB-40	Adaptor GMB, GZ BSPT 2.1/2"	-	18	In stock	Enquiry
DX-GMB-40-NPT	Adaptor GMB, GZ NPT 2.1/2"	-	18	In stock	Enquiry
DX-GMB-48	Adaptor GMB, GZ BSPT 3"	-	18	In stock	Enquiry
DX-GMB-48-NPT	Adaptor GMB, GZ NPT 3"	-	18	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter for spherical end and wing nut. Made of galvanized steel, it features a special polymer or copper insert on the conical surface that interacts with the spherical sealing surface of the end. It is tightened to the spherical end using a wing nut. This creates a tight connection resistant to steam and high temperature, which is also easy to unscrew and screw without the use of tools. The thread of the wing nut has a different (larger) size than the external thread of the GMB adapter. The use of the adapter allows for the creation of various connections, depending on the components used in the installation. Material: galvanized steel. Working pressure: 18 bar (+210°C) – saturated steam. Operating temperature: up to +230°C.
