Is ADVANSTAR R15 - 420 BAR multi-spiral hydraulic hose suitable for use with biodegradable hydraulic oils at -40Â°C to +120Â°C?

Yes. ADVANSTAR R15 - 420 BAR multi-spiral hydraulic hose is suitable for use with biodegradable hydraulic oils across the specified temperature range (-40Â°C to +120Â°C). The hose is explicitly rated for operating temperatures from -40Â°C to +120Â°C (hydraulic oil) and features an inner layer of synthetic rubber compatible with hydraulic fluids. Its construction (four layers of spiral steel wire reinforcement, enhanced flexibility, long impulse-life and industry standards EN 856 R15 / SAE 100 R15 / ISO 3862-1 R15) supports high-pressure applications using hydraulic oils, including biodegradable types, within the stated temperature limits.

Can ADVANSTAR R15 - 420 BAR multi-plane hydraulic hose be used in offshore environments with salt spray exposure?

Yes - ADVANSTAR R15 - 420 BAR multi-plane hydraulic hose can be used in offshore environments with salt spray exposure, with some precautions. Its four-layer spiral steel reinforcement and synthetic rubber outer cover offer robust mechanical and oil-resistant performance and MSHA flame resistance; operating range â40Â°C to +120Â°C suits typical offshore conditions. However, prolonged salt spray accelerates corrosion of steel wire reinforcement and may degrade the outer cover over long-term exposure. For reliable offshore use, protect hose ends/fittings with corrosion-resistant fittings (stainless steel), use additional external corrosion protection (covers, sleeves, or sacrificial coatings), and follow a regular inspection and replacement schedule. If continuous direct salt spray immersion is expected, consider hoses or assemblies specifically certified for marine/offshore salt-spray corrosion resistance.

Can ADVANSTAR R15 - 420 BAR multi-plane hydraulic hose be used with phosphate ester (fireâresistant) hydraulic fluids?

ADVANSTAR R15 - 420 BAR multi-plane hydraulic hose: short answer. generally no, not recommended without supplier confirmation. Why: phosphate ester (HF, fireâresistant) fluids are chemically aggressive and have different compatibility and swelling characteristics versus mineral oils. The hose description states an inner layer of "black synthetic rubber" but does not specify the rubber compound (e.g., NBR, HNBR, EPDM, FKM) or explicit compatibility with phosphateâester fluids. Compatibility depends on the exact elastomer formulation; some synthetics resist phosphate esters, others degrade, swell, lose mechanical properties or embrittle, leading to leaks or failure. Other considerations: - Temperature range: -40Â°C to +120Â°C (hydraulic oil) may be acceptable for many phosphate esters, but verify the fluidâs temperature limits and how it affects hose materials. - Standards (EN 856 R15 / SAE 100 R15 / ISO 3862â1 R15) cover construction and pressure ratings but do not guarantee chemical compatibility with phosphate esters. - Flameâresistant outer layer (MSHA) addresses external fire risk, not fluid compatibility. - High working pressure (420 bar) and proven impulse life are advantages only if the inner tube is compatible with the fluid. Recommended actions: 1. Contact the manufacturer/supplier of ADVANSTAR R15 - 420 BAR to request explicit confirmation of compatibility with the specific phosphateâester fluid you plan to use (provide fluid trade name and spec). 2. If manufacturer data are unavailable, request material specification of the inner tube and run a chemical compatibility test or get a compatibility statement from the fluid producer. 3. Consider hoses explicitly rated for phosphateâester fluids or hoses with documented inner tube elastomers compatible with HF fluids. Conclusion: Do not assume safe use. obtain manufacturer confirmation or use a hose explicitly certified for phosphateâester (fireâresistant) hydraulic fluids.

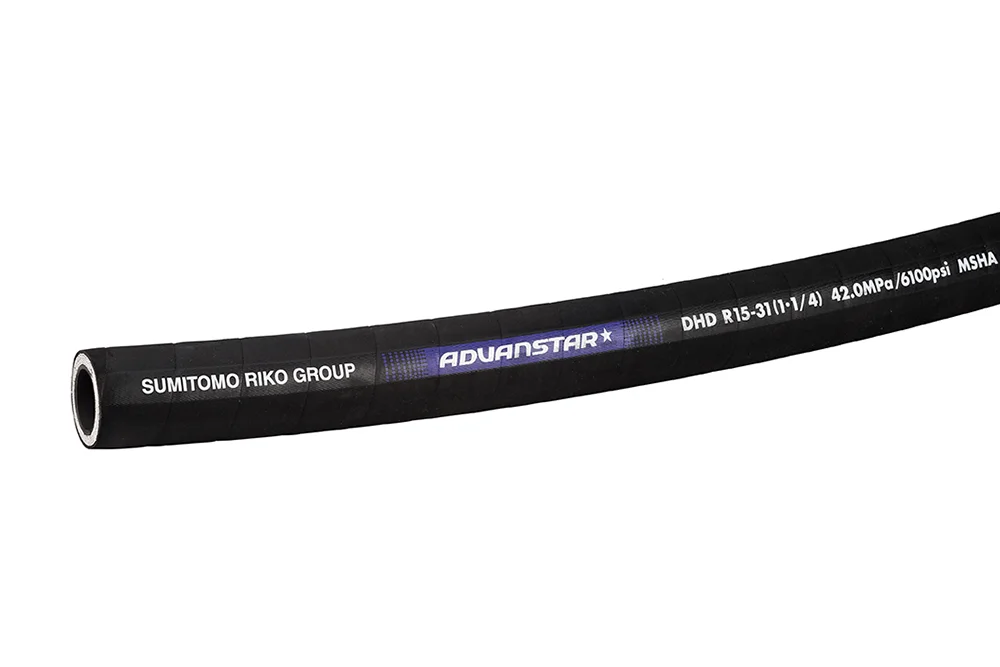

ADVANSTAR R15 – 420 BAR multi-plane hydraulic hose

All products, Hydraulic rubber hoses/

Additional information

Material	synthetic rubber
Maximum operating temperature [°C]	120
Minimum operating temperature [°C]	-40
Reinforcement	4 steel braids

Multi-spiral hydraulic hose for high pressure. Hose with increased flexibility (bending radius 50% better than standard norm). Hose lifespan confirmed by a test of 500,000 impulse cycles. Outer layer flame-resistant (MSHA). Used in hydraulic power systems of large construction machinery and all types of hydraulic-driven equipment. Standards: EN 856 R15, SAE 100 R15, ISO 3862-1 R15. Inner layer: black synthetic rubber. Reinforcement: four layers of spiral steel wire. Outer layer: black synthetic rubber. Working pressure: 420 bar. Operating temperature: from -40°C to +120°C (hydraulic oil).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HW-R15-13A	ADVANSTAR R15 1/2" hydraulic hose MSHA	12	420	In stock	Enquiry
HW-R15-16A	ADVANSTAR R15 5/8" hydraulic hose MSHA	16	420	In stock	Enquiry
HW-R15-19A	ADVANSTAR R15 3/4" hydraulic hose MSHA	20	420	In stock	Enquiry
HW-R15-25A	ADVANSTAR R15 1" hydraulic hose MSHA	25	420	In stock	Enquiry
HW-R15-32A	ADVANSTAR R15 1.1/4" hydraulic hose MSHA	32	420	In stock	Enquiry
HW-R15-38A	ADVANSTAR R15 1.1/2" hydraulic hose MSHA	38	420	In stock	Enquiry
HW-R15-51A	ADVANSTAR R15 2" hydraulic hose MSHA	50	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Multi-spiral hydraulic hose for high pressure. Hose with increased flexibility (bending radius 50% better than standard norm). Hose lifespan confirmed by a test of 500,000 impulse cycles. Outer layer flame-resistant (MSHA). Used in hydraulic power systems of large construction machinery and all types of hydraulic-driven equipment. Standards: EN 856 R15, SAE 100 R15, ISO 3862-1 R15. Inner layer: black synthetic rubber. Reinforcement: four layers of spiral steel wire. Outer layer: black synthetic rubber. Working pressure: 420 bar. Operating temperature: from -40°C to +120°C (hydraulic oil).
