Is Band-ItÂ® Standard tape, AISI 316 steel, suitable for clamping hoses with a double-loop configuration and which clips and tools (BD-C07599, BD-C00189, BD-C00399) are required?

Yes. Band-ItÂ® Standard tape, AISI 316 steel, is suitable for clamping hoses in a double-loop configuration . the system is designed to be formed into bands on hoses of any diameter and a double loop of tape is recommended. You must purchase separate clips with âearsâ to secure the tape end after bending. For installation use the specified tools: BD-C07599, BD-C00189, and BD-C00399. Tape length: 30.5 m.

Can Band-ItÂ® Standard tape, AISI 316 steel, be cut to custom lengths from the 30.5 m roll for specific hose diameters?

Yes. Band-ItÂ® Standard tape, AISI 316 steel, can be cut from the 30.5 m roll to custom lengths for specific hose diameters. Cut sections are formed into bands (a double loop is recommended) and secured with separate clips with "ears" (purchased separately). Use the specified installation tools (BD-C07599, BD-C00189, BD-C00399) for proper fitting. Ensure you leave enough tape length for overlap to engage the clip and for the recommended double-loop configuration.

How do I secure the Band-ItÂ® Standard tape, AISI 316 steel, ends after bending and which ear clips fit best?

To secure the Band-ItÂ® Standard tape, AISI 316 steel ends after bending, form the tape into the required band around the hose (a double loop of tape is recommended for best clamping stability). After bending the tape end over the band, fit a separate ear clip (sold separately) over the overlapped tape ends and crimp the ear to lock the joint. Use the recommended installation tools (BD-C07599, BD-C00189, or BD-C00399) to properly crimp the ear clip; these tools ensure consistent, secure deformation of the ear and correct tensioning of the band. For best fit, choose ear clips sized to match the tape width and application; Band-ItÂ® Standard tape, AISI 316 steel is supplied on a 30.5 m roll, so select clips designed for the same tape width and stainless 316 material. Proper clip selection and crimping with the specified tools will provide a durable, corrosion-resistant joint suited to hose diameters using the double-loop recommendation.

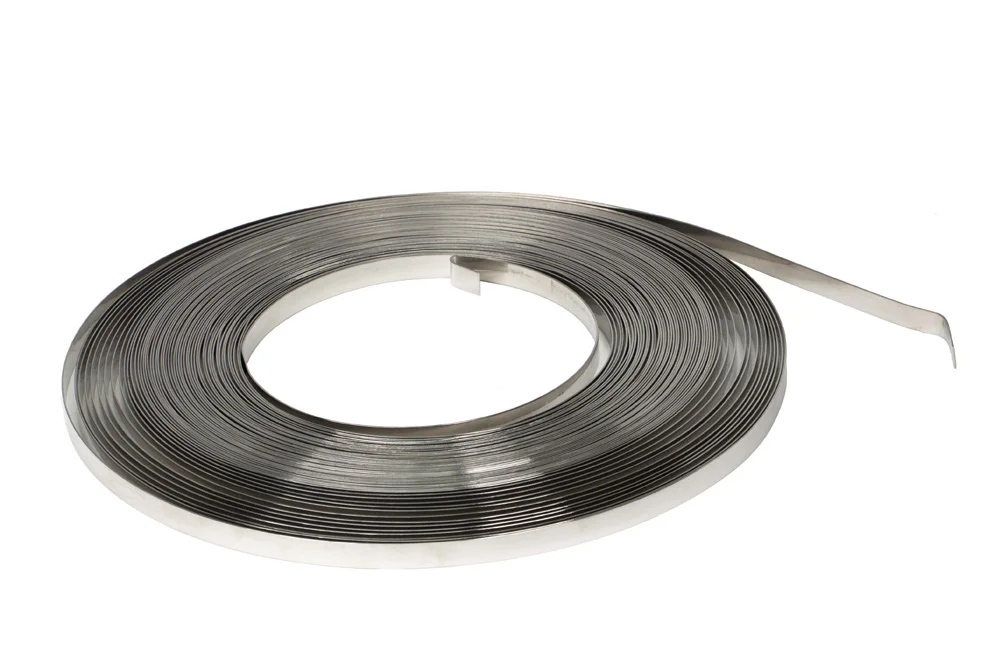

Band-It® Standard tape, AISI 316 steel

All products, Band clamping system/

Additional information

Material	SS – stainless steel

Band-It® Standard system tape, made of AISI 316 steel. Standard is the basic clamping system using roll tape, formed into bands on hoses of any diameter (a double loop of tape is recommended). Separate clips with “ears” must be purchased to secure the end of the tape after bending. Installation using tools BD-C07599, BD-C00189, BD-C00399. Length: 30.5 m.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
BD-C40299	Non-perforated tape STANDARD, width 1/4", AISI 316 - 30.5 m	-	-	In stock	Enquiry
BD-C40399	Non-perforated STANDARD tape, width 3/8", AISI 316 - 30.5 m	-	-	In stock	Enquiry
BD-C40499	Non-perforated STANDARD tape, width 1/2", AISI 316 - 30.5 m	-	-	In stock	Enquiry
BD-C40599	Non-perforated STANDARD tape, width 5/8", AISI 316 - 30.5 m	-	-	In stock	Enquiry
BD-C40699	Non-perforated STANDARD tape, width 3/4", AISI 316 - 30.5 m	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Band-It® Standard system tape, made of AISI 316 steel. Standard is the basic clamping system using roll tape, formed into bands on hoses of any diameter (a double loop of tape is recommended). Separate clips with “ears” must be purchased to secure the end of the tape after bending. Installation using tools BD-C07599, BD-C00189, BD-C00399. Length: 30.5 m.
