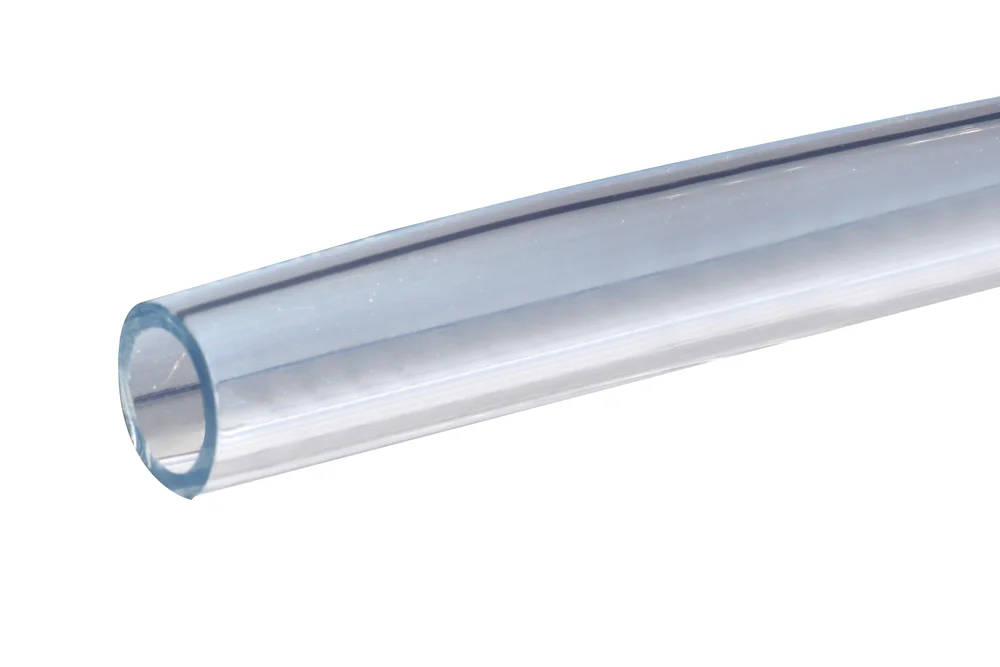

TYGON® ND100-65 biocompatible medical hose

Crystal clear, flexible, and completely biocompatible medical hose free of phthalates (DEHP). Intended for use in dialysis equipment, blood transfusion and drainage, infusion, chemotherapy, inhalation, minimally invasive procedures, catheters, and medical laboratories. Can be used with peristaltic pumps, but lifespan is limited. High transparency of the hose and non-wettability of the inner surface ensure good flow visualization and easy complete drainage of the hose. Can be connected with mechanical clamps, thermally welded, ultrasonically welded, or glued. Compliant with ISO 10993, European Pharmacopoeia 3.1.1.2, USP Class VI, and REACH requirements. Completely non-cytotoxic, non-hemolytic, and non-pyrogenic. Sterilization by steam in autoclaves, ethylene oxide, or radiation (up to 2.5 Mrad). Full hose roll length is 15 m. Medical hoses of different hardness are available, e.g., TYGON® ND100-80 (hardness 80° Shore (A)). The specified working pressure is defined relative to the burst pressure with a safety factor of 1:5. Material: PVC (special, DEHP-free). Maximum operating temperature: +74°C. Brittleness temperature: -42°C. Hardness: 65° Shore (A). Density: 1.19 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
VE-ADF00001Hose TYGON ND100-65 0.8x2.4 mm16.89
VE-ADF00002Hose TYGON ND100-65 1.6x3.2 mm23.79
VE-ADF00003Hose TYGON ND100-65 1.6x4.8 mm26.89
VE-ADF00004Hose TYGON ND100-65 2.4x4 mm22.76
VE-ADF00005Hose TYGON ND100-65 2.4x5.6 mm24.83
VE-ADF00006Hose TYGON ND100-65 3.2x4.8 mm32.07
VE-ADF00007Hose TYGON ND100-65 3.2 x 6.4 mm33.79
VE-ADF00009Hose TYGON ND100-65 4x5.6 mm41.72
VE-ADF00010Hose TYGON ND100-65 4x7.2 mm43.1
VE-ADF00011Hose TYGON ND100-65 4.8x6.4 mm51.38
VE-ADF00012Hose TYGON ND100-65 4.8x8 mm52.76
VE-ADF00013Hose TYGON ND100-65 4.8x9.6 mm53.79
VE-ADF00014Hose TYGON ND100-65 4.8x11.2 mm54.83
VE-ADF00017Hose TYGON ND100-65 6.4x9.6 mm62.07
VE-ADF00018Hose TYGON ND100-65 6.4x11.2 mm63.1
VE-ADF00019Hose TYGON ND100-65 6.4x12.8 mm63.79
VE-ADF00022Hose TYGON ND100-65 8x11.2 mm81.72
VE-ADF00023Hose TYGON ND100-65 8x12.7 mm82.41
VE-ADF00024Hose TYGON ND100-65 8x14.4 mm83.1
VE-ADF00027Hose TYGON ND100-65 9.5x12.8 mm101.38
VE-ADF00028Hose TYGON ND100-65 9.5x14.3 mm102.07
VE-ADF00029Hose TYGON ND100-65 9.5x15.9 mm102.76
VE-ADF00033Hose TYGON ND100-65 11.1x15.9 mm121.72
VE-ADF00037Hose TYGON ND100-65 12.7x17.5 mm121.72
VE-ADF00038Hose TYGON ND100-65 12.7x19.1 mm122.07
VE-ADF00041Hose TYGON ND100-65 14.3x19.1 mm141.38
VE-ADF00046Hose TYGON ND100-65 15.9x22.3 mm161.72
VE-ADF00053Hose TYGON ND100-65 19x25.4 mm201.38
VE-ADF00059Hose TYGON ND100-65 22.2x28.6 mm221.38
VE-ADF00062Hose TYGON ND100-65 25.4x31.8 mm251.24

Crystal clear, flexible, and completely biocompatible medical hose free of phthalates (DEHP). Intended for use in dialysis equipment, blood transfusion and drainage, infusion, chemotherapy, inhalation, minimally invasive procedures, catheters, and medical laboratories. Can be used with peristaltic pumps, but lifespan is limited. High transparency of the hose and non-wettability of the inner surface ensure good flow visualization and easy complete drainage of the hose. Can be connected with mechanical clamps, thermally welded, ultrasonically welded, or glued. Compliant with ISO 10993, European Pharmacopoeia 3.1.1.2, USP Class VI, and REACH requirements. Completely non-cytotoxic, non-hemolytic, and non-pyrogenic. Sterilization by steam in autoclaves, ethylene oxide, or radiation (up to 2.5 Mrad). Full hose roll length is 15 m. Medical hoses of different hardness are available, e.g., TYGON® ND100-80 (hardness 80° Shore (A)). The specified working pressure is defined relative to the burst pressure with a safety factor of 1:5. Material: PVC (special, DEHP-free). Maximum operating temperature: +74°C. Brittleness temperature: -42°C. Hardness: 65° Shore (A). Density: 1.19 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.

Additional information

Material

PVC – polyvinyl chloride

Maximum operating temperature [°C]

74

Vacuum resistance

yes

Standard length [m]

15

Additional information

Material

PVC – polyvinyl chloride

Maximum operating temperature [°C]

74

Vacuum resistance

yes

Standard length [m]

15
