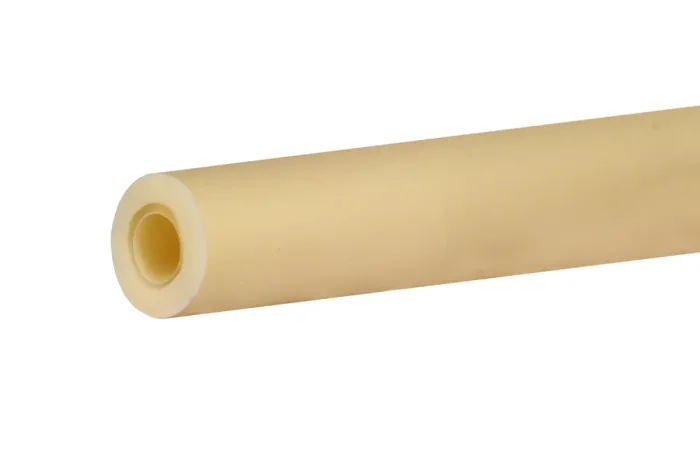

TYGON® CHEMICAL TUBING chemical and peristaltic pump hose

Creamy, flexible chemical hose with a multi-layer construction designed specifically to combine chemical resistance with high longevity in peristaltic pumps. Smooth inner layer with very good chemical resistance, free of plasticizers, resistant to acids, bases, salts, alcohols, and ketones, with low absorption and adsorption of water-based fluids. Outer layer made of thermoplastic elastomer (Norprene®) provides excellent properties and high longevity when used in peristaltic pumps. The hose meets hygiene requirements and is suitable for food contact: US FDA 21 CFR 177.1520 and is resistant to most cleaning and disinfecting agents. Sterilization by steam, ethylene oxide, or radiation. Ideal for dosing soap and detergents, laundry detergents, and dishwashing liquids. Used for the production and dosing of various chemicals in all sectors of industry. Full hose roll length is 15 m. The specified working pressure is defined relative to the burst pressure with a safety factor of 1:5. Material: polyolefin / TPE (Norprene® – thermoplastic elastomer). Operating temperature: from -60°C to +74°C. Brittleness temperature: -60°C. Hardness: 61° Shore (A). Density: 0.98 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
VE-AD300007TYGON CHEMICAL TUBING 3.2x6.4 mm32.28
VE-AD300012TYGON CHEMICAL TUBING 4.8x8 mm52
VE-AD300017TYGON CHEMICAL TUBING 6.4x9.5 mm61.38
VE-AD300027TYGON CHEMICAL TUBING 9.5x12.7 mm100.97
VE-AD300038TYGON CHEMICAL TUBING 12.7x19.1 mm121.1

Creamy, flexible chemical hose with a multi-layer construction designed specifically to combine chemical resistance with high longevity in peristaltic pumps. Smooth inner layer with very good chemical resistance, free of plasticizers, resistant to acids, bases, salts, alcohols, and ketones, with low absorption and adsorption of water-based fluids. Outer layer made of thermoplastic elastomer (Norprene®) provides excellent properties and high longevity when used in peristaltic pumps. The hose meets hygiene requirements and is suitable for food contact: US FDA 21 CFR 177.1520 and is resistant to most cleaning and disinfecting agents. Sterilization by steam, ethylene oxide, or radiation. Ideal for dosing soap and detergents, laundry detergents, and dishwashing liquids. Used for the production and dosing of various chemicals in all sectors of industry. Full hose roll length is 15 m. The specified working pressure is defined relative to the burst pressure with a safety factor of 1:5. Material: polyolefin / TPE (Norprene® – thermoplastic elastomer). Operating temperature: from -60°C to +74°C. Brittleness temperature: -60°C. Hardness: 61° Shore (A). Density: 0.98 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

74

Minimum operating temperature [°C]

-60

Vacuum resistance

yes

Standard length [m]

15

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

74

Minimum operating temperature [°C]

-60

Vacuum resistance

yes

Standard length [m]

15
