Can the DEP compressed air fine filter, SYNTESIÂ® series without end connections, operate at 6.3 bar and provide the recommended flow (460 l/min SY1, 620 l/min SY2)?

Yes. The DEP compressed air fine filter, SYNTESIÂ® series without end connections can operate at 6.3 bar and provide the recommended flows. The product data states supply pressure limits of up to 15 bar for size SY1 and up to 13 bar for size SY2, and the recommended flows (specified at 6.3 bar) are 460 l/min for SY1 and 620 l/min for SY2. Operating temperature and condensate drain options do not restrict operation at 6.3 bar.

Does the DEP compressed air fine filter, SYNTESIÂ® series without end connections, support operation at -10Â°C to +50Â°C?

Yes. The DEP compressed air fine filter, SYNTESIÂ® series without end connections, supports operation at -10Â°C to +50Â°C, as specified in the product description.

What condensate drain options are available for the DEP compressed air fine filter, SYNTESIÂ® series without end connections?

The DEP compressed air fine filter, SYNTESIÂ® series without end connections offers two condensate drain options: manual drain and semi-automatic drain (RMSA). Manual drain requires operator intervention to release collected condensate. The semi-automatic RMSA drain operates automatically with a manual override, reducing maintenance while ensuring reliable condensate removal.

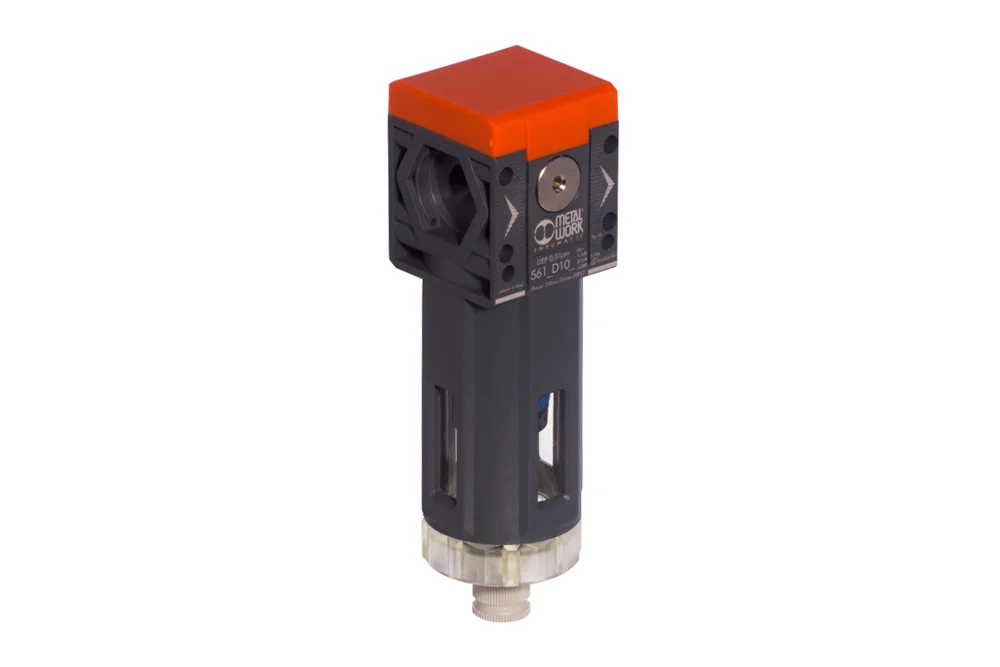

DEP compressed air fine filter, SYNTESI® series without end connections

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Minimum operating temperature [°C]	-10

The precise filter DEP series SYNTESI®, without end connections, is used to remove liquid or solid contaminants from compressed air with high accuracy. High filtration accuracy is achieved by using a special filtering element called a “coalescing cartridge.” Size: SY1, SY2. Filtration degree: 0.01 µm – air purity class according to ISO 8573-1: 1-7-2. Supply pressure: up to 15 bar – size SY1, up to 13 bar – size SY2. Operating temperature: from -10°C to +50°C. Condensate drain: manual / semi-automatic (RMSA). Recommended flow: 460 l/min – size SY1, 620 l/min – size SY2 (at a pressure of 6.3 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-5610D100	DEP SY1 RMSA fine filter without end plates.	-	-	In stock	0 zł		Enquiry
MW-5620D100	DEP SY2 RMSA fine filter without end plates.	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The precise filter DEP series SYNTESI®, without end connections, is used to remove liquid or solid contaminants from compressed air with high accuracy. High filtration accuracy is achieved by using a special filtering element called a “coalescing cartridge.” Size: SY1, SY2. Filtration degree: 0.01 µm – air purity class according to ISO 8573-1: 1-7-2. Supply pressure: up to 15 bar – size SY1, up to 13 bar – size SY2. Operating temperature: from -10°C to +50°C. Condensate drain: manual / semi-automatic (RMSA). Recommended flow: 460 l/min – size SY1, 620 l/min – size SY2 (at a pressure of 6.3 bar).
