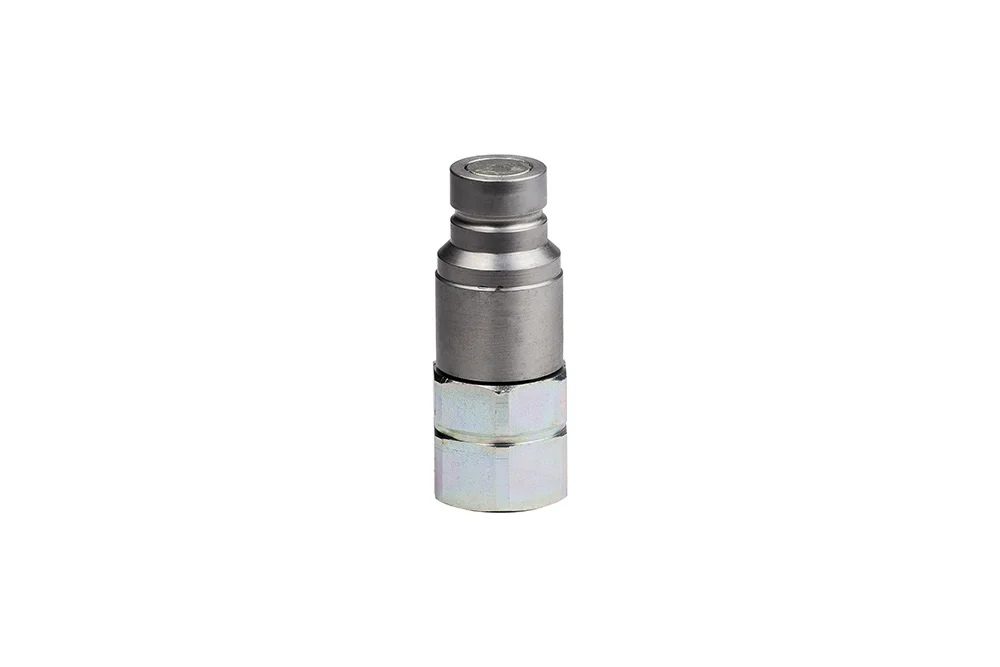

A hydraulic quick coupling Leak-free DNP PLK4, plug with an eliminator with female thread of carbon steel
Leak-free Quick-coupling plug type “flat-face” intended mainly for construction machinery, where large pressure surges occur. Version with a static-pressure eliminator. The quick coupling can be operated with one hand. Depending on the application, the appropriate seal material should be selected. interchangeable with quick coupling ISO-F from other manufacturers. Standard: ISO 16028. Application: power hydraulics (hydraulic oil), industrial. Working pressure: up to 400 bar. Material: steel with a zinc-nickel coating. Sealing: NBR (from -25°C to +100°C). Maximum static pressure when connecting quick couplings with a plug with a pressure eliminator: on the socket side 0 bar, on the plug side 250 bar. The flow is given at Δp = 3 bar.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Leak-free Quick-coupling plug type “flat-face” intended mainly for construction machinery, where large pressure surges occur. Version with a static-pressure eliminator. The quick coupling can be operated with one hand. Depending on the application, the appropriate seal material should be selected. interchangeable with quick coupling ISO-F from other manufacturers. Standard: ISO 16028. Application: power hydraulics (hydraulic oil), industrial. Working pressure: up to 400 bar. Material: steel with a zinc-nickel coating. Sealing: NBR (from -25°C to +100°C). Maximum static pressure when connecting quick couplings with a plug with a pressure eliminator: on the socket side 0 bar, on the plug side 250 bar. The flow is given at Δp = 3 bar.
Additional information
| Material | CS – steel (cast iron) |
|---|
