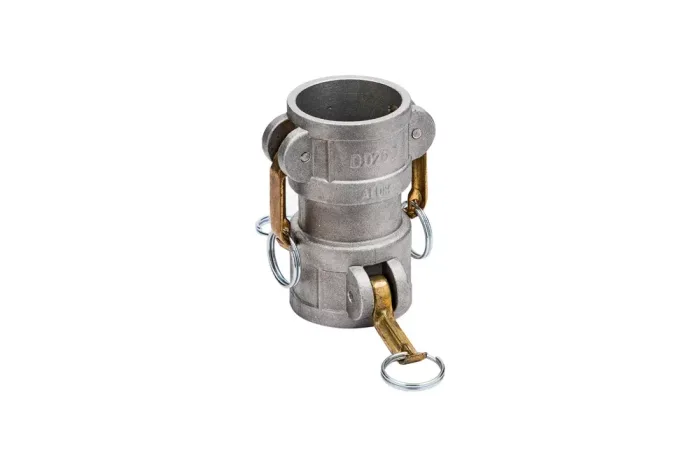

CAMLOCK DD double connector socket, aluminum
Double socket CAMLOCK DD connector made according to the American military standard MIL-C-27487 (A-A-59326). Commonly used as a transfer connector, particularly in the petrochemical industry. Working pressure: up to 10 bar, depending on the size of the connector. Material: aluminum. Levers: AISI 304 steel (in sizes 1.1/4″ to 4″ – levers made of brass). Sealing: NBR.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| AC-DD-150-150-AX | CAMLOCK connector DD 1.1/2" x 1.1/2", aluminum | - | 10 | |
| AC-DD-200-200-AX | CAMLOCK connector DD 2" x 2", aluminum | - | 10 | |
| AC-DD-300-300-AX | CAMLOCK connector DD 3" x 3", aluminum | - | 10 | |
| AC-DD-400-400-AX | CAMLOCK connector DD 4" x 4", aluminum | - | 10 |
Double socket CAMLOCK DD connector made according to the American military standard MIL-C-27487 (A-A-59326). Commonly used as a transfer connector, particularly in the petrochemical industry. Working pressure: up to 10 bar, depending on the size of the connector. Material: aluminum. Levers: AISI 304 steel (in sizes 1.1/4″ to 4″ – levers made of brass). Sealing: NBR.
Additional information
| Material | AL – aluminum |
|---|
Additional information
| Material | AL – aluminum |
|---|
