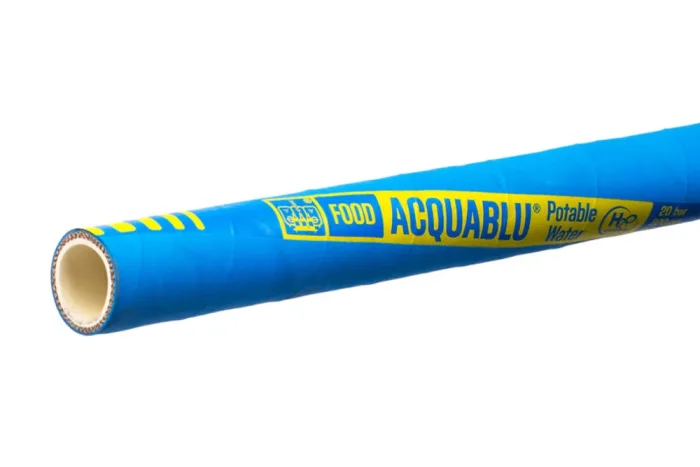

KTW ACQUABLU® approved drinking water hose.
Hose intended for the transmission of cold drinking water (+23°C – approvals KTW, DVGW – Germany, WRAS – United Kingdom, D.M.174 – Italy) in industry and applications such as households, campgrounds, etc. The inner layer material is of food-grade quality, odorless and tasteless, ensuring the preservation of unchanged organoleptic properties of water. Free from phthalates. The outer layer is resistant to weather conditions. Standards and requirements: 1) General: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) Approval for drinking water: UBA guideline, KTW, DVGW W270, D.M.174, WRAS according to BS 6920. 3) Food industry, contact with food: 1935/2004/EC, 2023/2006/EC (GMP); 21CFR 177.1520, BfR III, 10/2011/EU (inner layer). Inner layer: white plastomer. Reinforcement: synthetic braid. Outer layer: blue synthetic rubber. Working pressure: 20 bar. Operating temperature: -30°C to +60°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| IV-ACQUABLU-013 | ACQUABLU hose 13x21 mm | 12 | 20 | |
| IV-ACQUABLU-016 | ACQUABLU hose 16x25 mm | 16 | 20 | |
| IV-ACQUABLU-019 | ACQUABLU hose 19x28 mm | 20 | 20 | |
| IV-ACQUABLU-025 | ACQUABLU hose 25x34 mm | 25 | 20 | |
| IV-ACQUABLU-032 | ACQUABLU hose 32x43 mm | 32 | 20 | |
| IV-ACQUABLU-038 | ACQUABLU hose 38x51 mm | 38 | 20 | |
| IV-ACQUABLU-050 | ACQUABLU hose 50x65 mm | 50 | 20 |
Hose intended for the transmission of cold drinking water (+23°C – approvals KTW, DVGW – Germany, WRAS – United Kingdom, D.M.174 – Italy) in industry and applications such as households, campgrounds, etc. The inner layer material is of food-grade quality, odorless and tasteless, ensuring the preservation of unchanged organoleptic properties of water. Free from phthalates. The outer layer is resistant to weather conditions. Standards and requirements: 1) General: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) Approval for drinking water: UBA guideline, KTW, DVGW W270, D.M.174, WRAS according to BS 6920. 3) Food industry, contact with food: 1935/2004/EC, 2023/2006/EC (GMP); 21CFR 177.1520, BfR III, 10/2011/EU (inner layer). Inner layer: white plastomer. Reinforcement: synthetic braid. Outer layer: blue synthetic rubber. Working pressure: 20 bar. Operating temperature: -30°C to +60°C.
Additional information
| Material | plastomer |
|---|---|
| Maximum operating temperature [°C] | 60 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | no |
| Standard length [m] | 40, 60 |
| Reinforcement | synthetic braid |
