Can the E-YS flange rubber expansion joint handle petroleum products with up to 50% aromatic content and temperatures from -35Â°C to +100Â°C (temporarily +120Â°C)?

Yes. The E-YS flange rubber expansion joint is specifically designed for petroleum-derived products and fuels with aromatic content up to 50%, as well as for cooling water with oil-based anticorrosive agents, lubricating and hydraulic oils, and seawater. Construction details supporting this use: - Inner layer: HNBR (hydrogenated nitrile) rubber . good resistance to aromatic hydrocarbons and oils. - Reinforcement: steel cord . provides strength and pressure resistance. - Outer layer: CR (chloroprene) rubber . weather, ozone and oil-resistant protection. - Flanges: galvanized carbon steel. - Marking: yellow-blue-yellow stripe on the sleeve indicates suitability for petroleum products. Operating temperature range is â35Â°C to +100Â°C, with short-term (temporary) use up to +120Â°C depending on the medium. Based on the stated materials and temperature limits, the E-YS flange rubber expansion joint can handle petroleum products with up to 50% aromatic content within the specified temperature range.

Is the E-YS flange rubber expansion joint suitable for seawater and cooling water containing oil-based anti-corrosive agents?

Yes. The E-YS flange rubber expansion joint is suitable for seawater and cooling water containing oil-based anti-corrosive agents. It is specifically designed for media including petroleum-derived products and fuels (aromatic content up to 50%), cooling water with oil-based anti-corrosive agents, lubricating and hydraulic oils, and seawater. Construction details supporting this suitability: inner layer HNBR (nitrile) compatible with oils, reinforcement of steel cord, outer CR (chloroprene) for weather and ozone resistance, galvanized carbon steel flanges, and operating temperature range â35Â°C to +100Â°C (temporarily up to +120Â°C depending on medium).

Does the E-YS flange rubber expansion joint use HNBR inner and CR outer layers for oil and fuel resistance?

Yes. The E-YS flange rubber expansion joint uses an HNBR (nitrile) inner layer for oil and fuel resistance and a CR (chloroprene) outer layer, as specified. It is designed for petroleum-derived products and fuels (up to 50% aromatic compounds), lubricating and hydraulic oils, cooling water with oil-based inhibitors, and seawater. Operating temperature range: -35Â°C to +100Â°C (temporarily up to +120Â°C depending on the medium).

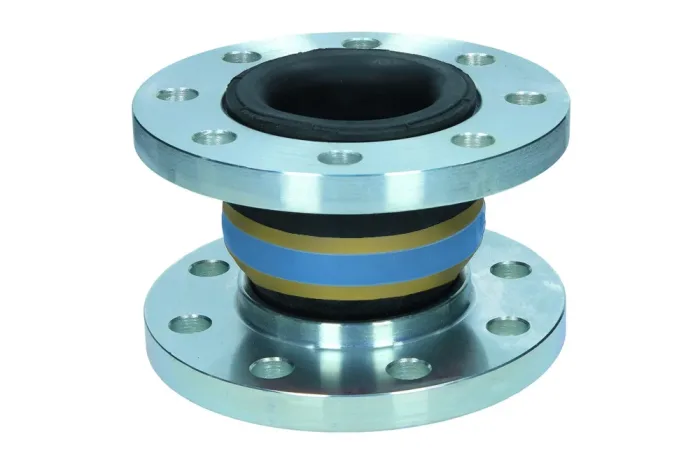

E-YS flange rubber expansion joint

All products, Rubber compensators/

Additional information

Material	HNBR – hydrogenated nitrile rubber
Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-35
Vacuum resistance	yes

Designed for use in installations where the medium consists of petroleum-derived products and fuels with aromatic compound content up to 50%, cooling water with oil-based anti-corrosive agents, lubricating and hydraulic oil, seawater. Marked with a yellow-blue-yellow stripe on the sleeve. Inner layer: HNBR rubber (nitrile). Reinforcement: steel cord. Outer layer: CR rubber (chloroprene). Flanges: galvanized carbon steel. Operating temperature: from -35°C to +100°C (temporarily +120°C depending on the medium).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TG-E-YS-025	Rubber compensator type E-YS, DN25, PN16	25	16	In stock	Enquiry
TG-E-YS-032	Rubber compensator type E-YS, DN32, PN16	32	16	In stock	Enquiry
TG-E-YS-040	Rubber compensator type E-YS, DN40, PN16	40	16	In stock	Enquiry
TG-E-YS-050	Rubber compensator type E-YS, DN50, PN16	50	16	In stock	Enquiry
TG-E-YS-065	Rubber compensator type E-YS, DN65, PN16	65	16	In stock	Enquiry
TG-E-YS-080	Rubber compensator type E-YS, DN80, PN16	80	16	In stock	Enquiry
TG-E-YS-100	Rubber compensator type E-YS, DN100, PN16	100	16	In stock	Enquiry
TG-E-YS-125	Rubber compensator type E-YS, DN125, PN16	125	16	In stock	Enquiry
TG-E-YS-150	Rubber compensator type E-YS, DN150, PN16	150	16	In stock	Enquiry
TG-E-YS-200	Rubber compensator type E-YS, DN200, PN10	200	10	In stock	Enquiry
TG-E-YS-250	Rubber compensator type E-YS, DN250, PN10	250	10	In stock	Enquiry
TG-E-YS-300	Rubber compensator type E-YS, DN300, PN10	300	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Designed for use in installations where the medium consists of petroleum-derived products and fuels with aromatic compound content up to 50%, cooling water with oil-based anti-corrosive agents, lubricating and hydraulic oil, seawater. Marked with a yellow-blue-yellow stripe on the sleeve. Inner layer: HNBR rubber (nitrile). Reinforcement: steel cord. Outer layer: CR rubber (chloroprene). Flanges: galvanized carbon steel. Operating temperature: from -35°C to +100°C (temporarily +120°C depending on the medium).
