How do I size the Filter - GAFR compressed air regulator with BSP female thread, GA series for my system based on required flow and pressure?

To size the Filter - GAFR compressed air regulator with BSP female thread, GA series for your system, follow these steps: 1. Determine required outlet pressure and maximum supply pressure (supply â¤ 10 bar, operating temp -5Â°C to +70Â°C). 2. Determine required flow rate at expected operating conditions (standard litres per minute). Ensure flow demand uses same units as datasheet values (l/min). 3. Account for pressure drop: datasheet flows are given at inlet 6 bar with Îp = 1 bar. If your available inlet pressure or acceptable Îp differ, recalculate: a higher Îp increases flow capability; a lower Îp reduces it. For conservative sizing, use the datasheet flows as maximum continuous flows per size. 4. Select size with rated flow â¥ your required flow: - Size 200 â 1050 l/min - Size 300 â 2250 l/min - Size 400 â 4000 l/min - Size 600 â 6500 l/min 5. Check thread compatibility (BSP female 1/8" to 1") and required filtration (40 Âµm) and ensure automatic condensate drain (A) suits your installation. 6. Consider safety margins: choose next larger size if flow is near the limit, if pulsating loads occur, or if future capacity increase is possible. 7. Use GA connection sets (L, T, U) and included bracket/gauge for proper installation. If you provide required flow (l/min), inlet pressure and desired outlet pressure, I can recommend the exact size.

Can Filter - GAFR compressed air regulator with BSP female thread, GA series be mounted in any orientation without affecting performance?

Yes. The Filter - GAFR compressed air regulator with BSP female thread, GA series can be mounted in any orientation without affecting performance. The internal design and automatic condensate drain (A), plus supplied mounting bracket, allow reliable operation across the stated operating temperature (-5Â°C to +70Â°C) and pressures (up to 10 bar), maintaining outlet pressure stability regardless of supply fluctuations. Ensure correct piping and use appropriate GA connection sets for best results.

Does the Filter - GAFR compressed air regulator with BSP female thread, GA series include a pressure gauge and mounting bracket?

Yes. The Filter - GAFR compressed air regulator with BSP female thread, GA series includes both a pressure gauge and a mounting bracket/holder as part of the package.

Filter – GAFR compressed air regulator with BSP female thread, GA series

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-5

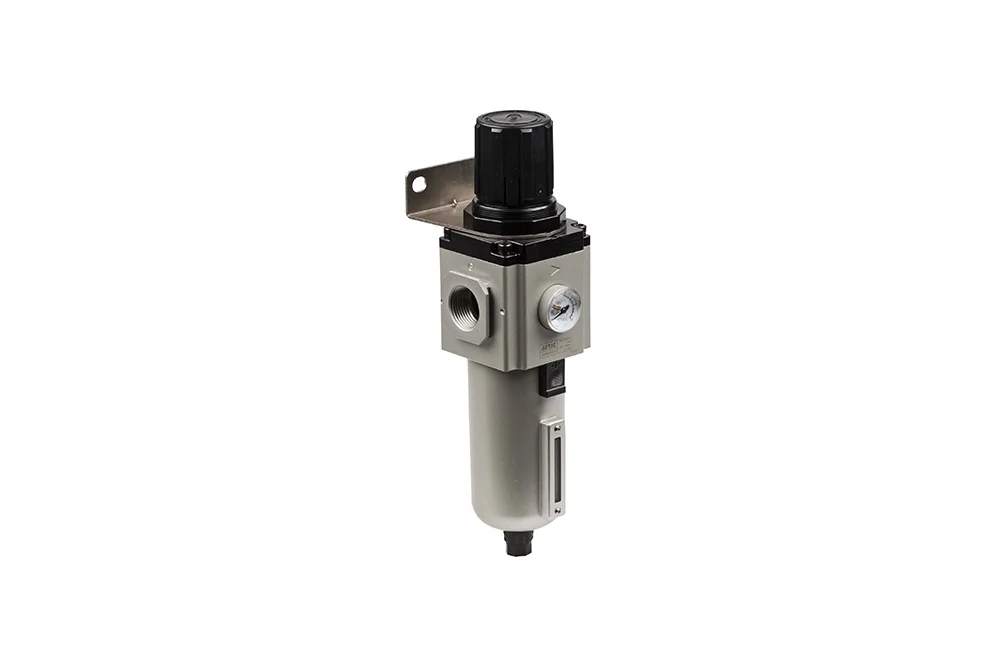

Filter – GAFR series GA pressure regulator with internal BSP thread is used to remove contaminants contained in compressed air to ensure the proper operation of pneumatic system components, while the manually adjustable regulator maintains a constant pressure value at the outlet, regardless of fluctuations in supply pressure. The package includes a mounting bracket/holder and a pressure gauge. GA connection sets (L, T, U shapes) are used to connect individual components together. Size: 200, 300, 400, 600. Filtration degree: 40 µm. Supply pressure: up to 10 bar. Operating temperature: from -5°C to +70°C. Connection: BSP female thread 1/8″ to 1″. Condensate drain: automatic (A). Flow rate: 1050 l/min – size 200, 2250 l/min – size 300, 4000 l/min – size 400, 6500 l/min – size 600 (at inlet pressure 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AT-GAFR200-06	Filter - reducer GAFR200 1/8 40 09 A	-	-	In stock	Enquiry
AT-GAFR200-08	Filter - reducer GAFR200 1/4 40 09 A	-	-	In stock	Enquiry
AT-GAFR300-08	Filter - reducer GAFR300 1/4 40 09 A	-	-	In stock	Enquiry
AT-GAFR300-10	Filter - reducer GAFR300 3/8 40 09 A	-	-	In stock	Enquiry
AT-GAFR300-15	Filter - reducer GAFR300 1/2 40 09 A	-	-	In stock	Enquiry
AT-GAFR400-10	Filter - reducer GAFR400 3/8 40 09 A	-	-	In stock	Enquiry
AT-GAFR400-15	Filter - reducer GAFR400 1/2 40 09 A	-	-	In stock	Enquiry
AT-GAFR600-20	Filter - reducer GAFR600 3/4 40 09 A	-	-	In stock	Enquiry
AT-GAFR600-25	Filter - reducer GAFR600 1 40 09 A	-	-	In stock	Enquiry
