Is the PN16 fixed flange for hose, carbon steel, type CNWF compatible with both rubber and plastic industrial hoses and installed using straps or clamp bands?

Yes. The PN16 fixed flange for hose, carbon steel, type CNWF is compatible with both rubber and plastic industrial hoses. It features a âtailâ designed to receive hose ends and is intended to be secured with straps or clamp bands. Material: carbon steel, galvanized.

Can the PN16 fixed flange for hose, carbon steel, type CNWF be used with high-temperature or oil-resistant hoses?

PN16 fixed flange for hose, carbon steel, type CNWF is designed for rubber and plastic industrial hoses and is installed using straps or clamp bands. Because itâs made of carbon steel (galvanized) and intended for general rubber/plastic hoses, it is not specifically rated for high-temperature or oil-resistant hoses. High-temperature or oil-resistant applications often require specialized materials (stainless steel, heat-resistant alloys, or specific coatings) and seals compatible with fluids and temperatures involved. Using PN16 fixed flange for hose, carbon steel, type CNWF with such hoses may risk premature corrosion, loss of seal, or mechanical failure. Consult hose and flange manufacturers for compatibility or choose flanges and fittings specified for high-temp/oil service.

Does the PN16 fixed flange for hose, carbon steel, type CNWF require specific clamp band sizes for secure installation?

Yes. the PN16 fixed flange for hose, carbon steel, type CNWF requires appropriately sized clamp bands (straps) for a secure installation. Because the flange has a hose âtailâ and is intended for rubber and plastic industrial hoses, the clamp bands must match both the outer diameter of the hose over the tail and the hose wall thickness to ensure an even, firm compression without cutting into the hose material. Use corrosion-resistant clamps compatible with galvanized carbon steel to avoid galvanic issues and ensure durability. Practical recommendations: - Select clamp bands rated for industrial hose applications and able to deliver sufficient tightening torque for PN16 pressure levels. - Match clamp inner diameter range to the hose outer diameter over the tail; if the hose OD falls between sizes, choose the next larger clamp and tighten per manufacturer torque specs. - Prefer wide-band or multiple clamps for larger diameters to distribute pressure and prevent hose deformation or leaks. - Verify clamp material compatibility (stainless steel is commonly recommended) and follow the hose and flange manufacturerâs installation and torque guidelines. In short: yes. choose clamp bands sized to the hose OD and suited to industrial service to ensure a secure, leak-free installation of the PN16 fixed flange for hose, carbon steel, type CNWF.

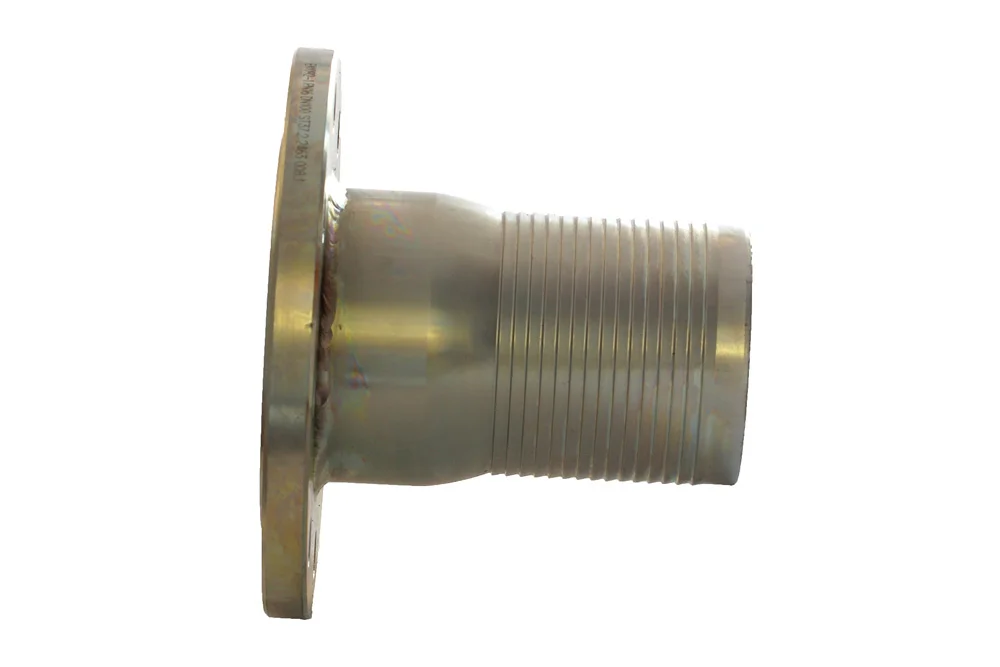

PN16 fixed flange for a hose, carbon steel, type CNWF

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

PN16 fixed flange type CNWF made of carbon steel with a “tail” for a hose. Intended for rubber hoses and industrial plastic hoses. Assembly by means of bands or clamps. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-CNWF-015	Flange fixed PN16 DN15, for hose DN15, galvanized steel	16	-	In stock	Enquiry
AC-CNWF-020	Flange fixed PN16 DN20, for hose DN20, galvanized steel	20	-	In stock	Enquiry
AC-CNWF-025	Flange fixed PN16 DN25, for hose DN25, galvanized steel	25	-	In stock	Enquiry
AC-CNWF-032	Flange fixed PN16 DN32, for hose DN32, galvanized steel	32	-	In stock	Enquiry
AC-CNWF-040	Flange fixed PN16 DN40, for hose DN40, galvanized steel	40	-	In stock	Enquiry
AC-CNWF-050	Flange fixed PN16 DN50, for hose DN50, galvanized steel	50	-	In stock	Enquiry
AC-CNWF-065	Flange fixed PN16 DN65, for hose DN65, galvanized steel	65	-	In stock	Enquiry
AC-CNWF-080	Flange fixed PN16 DN80, for hose DN80, galvanized steel	80	-	In stock	Enquiry
AC-CNWF-100	Flange fixed PN16 DN100, for hose DN100, galvanized steel	100	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

PN16 fixed flange type CNWF made of carbon steel with a “tail” for a hose. Intended for rubber hoses and industrial plastic hoses. Assembly by means of bands or clamps. Material: carbon steel, galvanized.
