Is the PN16 fixed neck flange EN1092-1 type 11B1 carbon steel suitable for connecting flexible hoses and pipeline sections in industrial installations?

Yes. The PN16 fixed neck flange, EN1092-1, type 11B1, carbon steel is suitable for connecting flexible hoses and pipeline sections in industrial installations. It is manufactured to EN1092-1 with a welded neck (type 11B) and sealing surface B1, rated PN16, which makes it a common, robust choice for technological pipelines and hose connections. Its design provides a tight, durable assembly that ensures reliable sealing and mechanical strength for typical industrial service. Carbon steel construction offers good strength and weldability for standard process conditions; however, confirm compatibility with media, temperature, corrosion environment, and hose end fittings (pressure rating and flange face type) before installation.

What are the recommended gasket types for a PN16 fixed neck flange EN1092-1 type 11B1 carbon steel connection?

For a PN16 fixed neck flange EN1092-1, type 11B1, carbon steel the recommended gasket types are: - PTFE (chemically resistant) - suitable for corrosive media, thin sheet for tightness at PN16, avoids galvanic issues with carbon steel. - Graphite (spiral wound with stainless steel or carbon steel inner/outer rings) - good for wide temperature range and thermal cycling; use metal winding compatible with carbon steel. - NBR or EPDM elastomer (full-face or ring) - for low-temperature, low-pressure water, air, oils; check chemical compatibility and temperature limits for PN16. - Non-asbestos compressed fiber (CAF) - general-purpose, cost-effective for moderate temperatures/chemicals. - Ring-type joint (RTJ) only if flange facings and groove are machined for RTJ - otherwise not applicable. Select gasket thickness and material to match B1 sealing face finish, media, temperature, and bolt loading; ensure flange and gasket materials are compatible to avoid corrosion.

How should the PN16 fixed neck flange EN1092-1 type 11B1 carbon steel be maintained for long-term leak-free service?

To ensure long-term leak-free service of the PN16 fixed neck flange EN1092-1 type 11B1 carbon steel, follow a consistent maintenance and inspection program: 1. Proper installation - Ensure welding of the neck to the pipe is performed by qualified welders using correct procedures and filler materials for carbon steel to avoid defects and stress concentrators. - Use the correct gasket compatible with sealing surface type B1 and intended media; ensure gasket dimensions match PN16 flange face. - Tighten bolts in a star pattern to the specified torque for the chosen bolt grade; use calibrated torque tools and follow recommended torque values to achieve even load distribution. 2. Routine inspection - Visually inspect flange faces, gasket area and bolting for signs of leaks, corrosion, bolt relaxation or deformation at regular intervals (initially after commissioning, then quarterly or per process risk). - Check for flange alignment and pipe support integrity; misalignment or unsupported weight causes uneven load and gasket failure. - Monitor for vibration or thermal cycling effects that may loosen bolts or damage the gasket. 3. Bolting and joint integrity - Re-torque bolts after initial thermal cycles (follow manufacturer/engineering recommendations) and periodically thereafter; use controlled sequence and correct torque. - Replace bolts, nuts and washers that show corrosion, stretching or thread damage. Use anti-seize or appropriate coatings where specified to prevent galling and ensure accurate torque. 4. Corrosion protection - Protect carbon steel flange external surfaces with appropriate coatings (paint, epoxy) and cathodic measures if required by service to prevent atmospheric or chemical corrosion. - For internal surfaces, consider protective linings, corrosion inhibitors or material upgrades if media are corrosive. 5. Gasket care and replacement - Inspect gasket during shutdowns; replace rather than reuse compressed or damaged gaskets. Store spare gaskets properly to avoid deformation. - Choose gasket materials resistant to process media, temperature and pressure to maintain sealing performance with B1 face finish. 6. Environmental and operational controls - Control process parameters within design limits (pressure â¤ PN16, temperature, chemical compatibility). - Minimize cyclic loading and avoid abrupt pressure surges; install surge protection if necessary. 7. Documentation and procedures - Maintain records of installation torque, inspections, repairs and replacements. - Implement and follow standard operating procedures for flange assembly, maintenance and hot-work near flanged joints. Following these practices ensures the PN16 fixed neck flange EN1092-1 type 11B1 carbon steel maintains a tight, robust assembly and long-term leak-free performance.

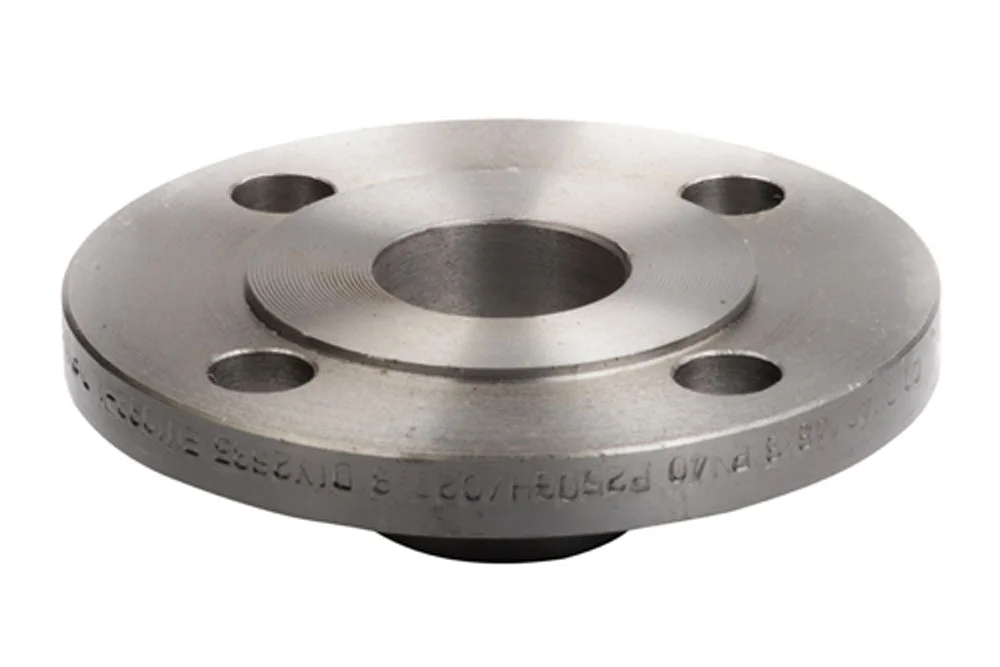

PN16 fixed neck flange, EN1092-1, type 11B1, carbon steel

All products, Flange couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

The fixed flange is made according to standard EN1092-1, with a neck for welding type 11B, sealing surface type B1, and nominal pressure PN16. The flange connection is one of the most widely used in the industry, primarily for connecting sections of technological pipelines, but also for connections with flexible hoses. Due to its special design, it creates a tight and robust assembly, ensuring excellent parameters and reliability of the entire installation. Material: carbon steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TK-KSS-015	Fixed neck flange EN1092-1 type 11B1 DN15 PN10-40, carbon steel.	16	16	In stock	Enquiry
TK-KSS-020	Fixed neck flange EN1092-1 type 11B1 DN20 PN10-40, carbon steel.	20	16	In stock	Enquiry
TK-KSS-025	Fixed neck flange EN1092-1 type 11B1 DN25 PN10-40, carbon steel.	25	16	In stock	Enquiry
TK-KSS-032	Fixed neck flange EN1092-1 type 11B1 DN32 PN10-40, carbon steel.	32	16	In stock	Enquiry
TK-KSS-040	Fixed neck flange EN1092-1 type 11B1 DN40 PN10-40, carbon steel.	40	16	In stock	Enquiry
TK-KSS-050	Fixed neck flange EN1092-1 type 11B1 DN50 PN16, carbon steel.	50	16	In stock	Enquiry
TK-KSS-065	Fixed neck flange EN1092-1 type 11B1 DN65 PN16, carbon steel.	65	16	In stock	Enquiry
TK-KSS-080	Fixed neck flange EN1092-1 type 11B1 DN80 PN16, carbon steel.	80	16	In stock	Enquiry
TK-KSS-100	Fixed neck flange EN1092-1 type 11B1 DN100 PN16, carbon steel.	100	16	In stock	Enquiry
TK-KSS-125	Fixed neck flange EN1092-1 type 11B1 DN125 PN16, carbon steel.	125	16	In stock	Enquiry
TK-KSS-150	Fixed neck flange EN1092-1 type 11B1 DN150 PN16, carbon steel.	150	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The fixed flange is made according to standard EN1092-1, with a neck for welding type 11B, sealing surface type B1, and nominal pressure PN16. The flange connection is one of the most widely used in the industry, primarily for connecting sections of technological pipelines, but also for connections with flexible hoses. Due to its special design, it creates a tight and robust assembly, ensuring excellent parameters and reliability of the entire installation. Material: carbon steel.
