Is the HERBIE CLIPÂ® clamp in polyamide (PA66) UV-resistant and suitable for continuous use between -40Â°C and +125Â°C?

Yes. The HERBIE CLIPÂ® clamp in polyamide (PA66) is UV-resistant and specified for continuous operation from â40Â°C to +125Â°C (with temporary resistance up to +170Â°C).

Can the HERBIE CLIPÂ® clamp in polyamide be repeatedly installed and removed without losing its double-tooth clamping strength?

Yes. The HERBIE CLIPÂ® clamp in polyamide (PA66) is designed for repeated installation and removal without losing its double-tooth clamping strength. Its double-tooth design delivers more than twice the clamping force compared to single-row alternatives, and the ties are specifically engineered for easy, quick installation and removal - by designated tools, standard âfrogâ tools, or manually - while maintaining performance. The PA66 material is UV-resistant and operates from â40Â°C to +125Â°C (temporarily up to +170Â°C), ensuring durability and retention of clamping force across a wide range of conditions.

Does the HERBIE CLIPÂ® clamp in polyamide (PA66) resist chemicals and oils commonly found in automotive applications?

Yes. The HERBIE CLIPÂ® clamp in polyamide (PA66) exhibits good resistance to many chemicals and oils commonly encountered in automotive environments. PA66 is widely used in under-hood and vehicle applications because it resists fuels, lubricants, hydraulic fluids, and many oils, and its UV-stabilized formulation improves long-term outdoor durability. The HERBIE CLIPÂ® clamp also benefits from a broad operating temperature range (â40Â°C to +125Â°C, temporarily up to +170Â°C), which helps maintain performance when exposed to heat and hot fluids. Caveats: PA66 can be attacked by strong acids, strong alkalis, some aggressive solvents (e.g., concentrated aromatic or chlorinated hydrocarbons) and certain aggressive chemical formulations. For continuous or concentrated exposure to unusual solvents, aggressive cleaners, or specialty fluids, testing in the intended service conditions is recommended. If exposure involves such aggressive chemicals, consider the polypropylene (PP) version or consult material compatibility data for the specific fluid.

HERBIE CLIP® clamp, polyamide

All products, Clamps for mounting ends/

Additional information

Material	P – material (plastic)

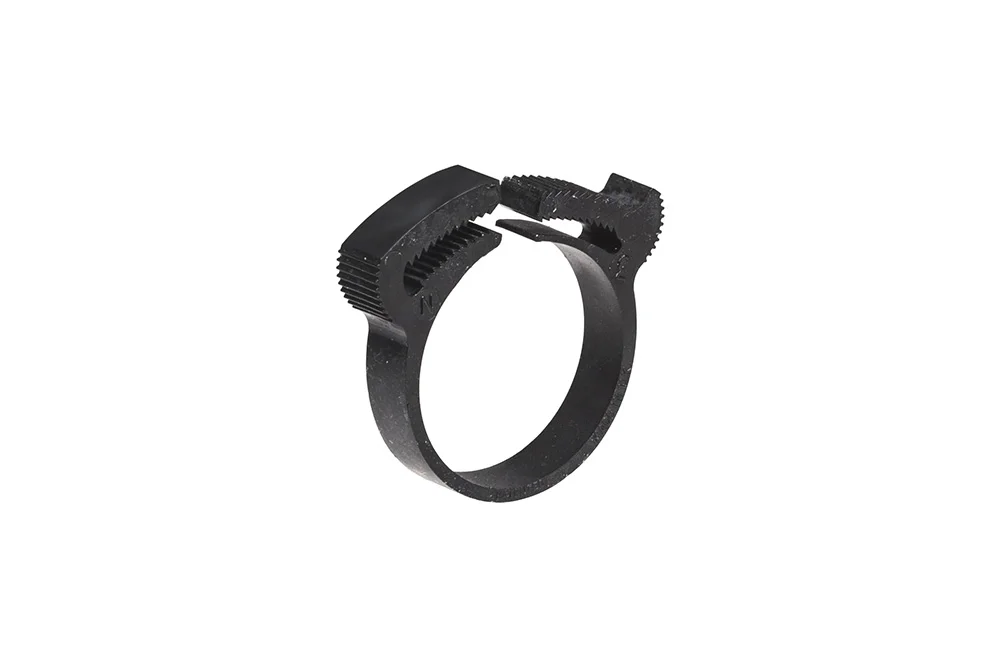

HERBIE CLIP® reusable clamps made of black, UV-resistant polyamide (PA66). Also available in polypropylene (PP). The double row of teeth provides more than twice the clamping force of similar products with only one row. The clamp design allows easy and quick assembly and disassembly using dedicated special tools, standard “frog” type tools, or by hand. Operating temperature: from -40°C to +125°C (PA66, briefly up to +170°C), from -40°C to +60°C (PP, briefly up to +90°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CL-HCL-005-006-PA	Clamp HERBIE CLIP 5.6÷6.5 mm, width 4.2 mm, PA	-	-	In stock	Enquiry
CL-HCL-006-007-PA	Clamp HERBIE CLIP 6.5÷7.9 mm, width 4.5 mm, PA	-	-	In stock	Enquiry
CL-HCL-007-009-PA	Clamp HERBIE CLIP 7.9÷9.2 mm, width 4.6 mm, PA	-	-	In stock	Enquiry
CL-HCL-009-010-PA	Clamp HERBIE CLIP 9.2÷10.3 mm, width 4.5 mm, PA	-	-	In stock	Enquiry
CL-HCL-010-011-PA	Clamp HERBIE CLIP 10.2÷11.8 mm, width 5.8 mm, PA	-	-	In stock	Enquiry
CL-HCL-011-013-PA	Clamp HERBIE CLIP 11.5÷13.4 mm, width 6.4 mm, PA	-	-	In stock	Enquiry
CL-HCL-012-013-PA	Clamp HERBIE CLIP 12÷13.8 mm, width 6.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-013-015-PA	Clamp HERBIE CLIP 13.1÷15.1 mm, width 7.2 mm, PA	-	-	In stock	Enquiry
CL-HCL-015-017-PA	Clamp HERBIE CLIP 15÷17.1 mm, width 7.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-016-019-PA	Clamp HERBIE CLIP 16.9÷19.1 mm, width 6.9 mm, PA	-	-	In stock	Enquiry
CL-HCL-018-020-PA	Clamp HERBIE CLIP 18.1÷20.6 mm, width 7.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-020-023-PA	Clamp HERBIE CLIP 20.3÷23 mm, width 6.4 mm, PA	-	-	In stock	Enquiry
CL-HCL-023-026-PA	Clamp HERBIE CLIP 23.1÷26.1 mm, width 7.3 mm, PA	-	-	In stock	Enquiry
CL-HCL-024-027-PA	Clamp HERBIE CLIP 24.5÷27.6 mm, width 7.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-026-029-PA	Clamp HERBIE CLIP 26.5÷29.5 mm, width 7.4 mm, PA	-	-	In stock	Enquiry
CL-HCL-028-032-PA	Clamp HERBIE CLIP 28.8÷32.2 mm, width 9 mm, PA	-	-	In stock	Enquiry
CL-HCL-032-034-PA	Clamp HERBIE CLIP 32÷34.8 mm, width 9.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-034-037-PA	Clamp HERBIE CLIP 34.3÷37.9 mm, width 8.9 mm, PA	-	-	In stock	Enquiry
CL-HCL-038-042-PA	Clamp HERBIE CLIP 38.5÷42.4 mm, width 9.5 mm, PA	-	-	In stock	Enquiry
CL-HCL-041-045-PA	Clamp HERBIE CLIP 41.8÷45.2 mm, width 9.3 mm, PA	-	-	In stock	Enquiry
CL-HCL-044-048-PA	Clamp HERBIE CLIP 44.6÷48 mm, width 9.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-047-051-PA	Clamp HERBIE CLIP 47.4÷51.1 mm, width 9.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-048-053-PA	Clamp HERBIE CLIP 48.5÷53.8 mm, width 9 mm, PA	-	-	In stock	Enquiry
CL-HCL-053-056-PA	Clamp HERBIE CLIP 53÷56.5 mm, width 9 mm, PA	-	-	In stock	Enquiry
CL-HCL-055-065-PA	Clamp HERBIE CLIP 55÷65.5 mm, width 9.4 mm, PA	-	-	In stock	Enquiry
CL-HCL-059-064-PA	Clamp HERBIE CLIP 59÷64.7 mm, width 9.3 mm, PA	-	-	In stock	Enquiry
CL-HCL-063-067-PA	Clamp HERBIE CLIP 63÷67.4 mm, width 9.4 mm, PA	-	-	In stock	Enquiry
CL-HCL-065-071-PA	Clamp HERBIE CLIP 65.8÷71.7 mm, width 9.2 mm, PA	-	-	In stock	Enquiry
CL-HCL-070-075-PA	Clamp HERBIE CLIP 70÷75.4 mm, width 9.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-074-080-PA	Clamp HERBIE CLIP 74.7÷80.5 mm, width 9.1 mm, PA	-	-	In stock	Enquiry
CL-HCL-079-085-PA	Clamp HERBIE CLIP 79.8÷85 mm, width 9 mm, PA	-	-	In stock	Enquiry
CL-HCL-085-090-PA	Clamp HERBIE CLIP 85.1÷90.6 mm, width 8.9 mm, PA	-	-	In stock	Enquiry
CL-HCL-091-096-PA	Clamp HERBIE CLIP 91÷96 mm, width 9.5 mm, PA	-	-	In stock	Enquiry
CL-HCL-097-102-PA	Clamp HERBIE CLIP 97.7÷102.1 mm, width 8.5 mm, PA	-	-	In stock	Enquiry
CL-HCL-105-111-PA	Clamp HERBIE CLIP 105.3÷111.8 mm, width 8.9 mm, PA	-	-	In stock	Enquiry
CL-HCL-108-114-PA	Clamp HERBIE CLIP 108÷114.3 mm, width 9 mm, PA	-	-	In stock	Enquiry
CL-HCL-115-121-PA	Clamp HERBIE CLIP 115÷121 mm, width 9.5 mm, PA	-	-	In stock	Enquiry
CL-HCL-163-169-PA	Clamp HERBIE CLIP 163÷169 mm, width 9.5 mm, PA	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

HERBIE CLIP® reusable clamps made of black, UV-resistant polyamide (PA66). Also available in polypropylene (PP). The double row of teeth provides more than twice the clamping force of similar products with only one row. The clamp design allows easy and quick assembly and disassembly using dedicated special tools, standard “frog” type tools, or by hand. Operating temperature: from -40°C to +125°C (PA66, briefly up to +170°C), from -40°C to +60°C (PP, briefly up to +90°C).
