Is the One-piece steel EAR CLIP ring with 1 eye, carbon steel suitable for reinforced and non-reinforced low-pressure hoses?

Yes. The One-piece steel EAR CLIP ring with 1 eye, carbon steel is suitable for both reinforced (braided) and non-reinforced low-pressure hoses. The product description explicitly states it is designed for mounting various types of low-pressure hoses with or without reinforcement. Its one-piece, galvanized carbon steel construction provides reliable clamping strength, and the rounded inner edges protect the hose from damage during and after installation. Installation is easy and quick with the specially designed pliers, ensuring a secure, uniform seal appropriate for low-pressure applications.

Can One-piece steel EAR CLIP ring with 1 eye, carbon steel be reused after removal without compromising hose integrity?

One-piece steel EAR CLIP ring with 1 eye, carbon steel: Generally these single-ear, crimp-style clamps are designed for one-time, permanent installation. During crimping the ear deforms plastically to form a tight seal; attempting to remove and re-crimp will usually prevent achieving the original clamp geometry and tension. Even if removed without obvious hose damage, reusing the same clamp risks uneven pressure, sharp edges or residual deformation that can cut or abrade the hose and compromise the seal under pressure. For reliable hose integrity and safety, replace the One-piece steel EAR CLIP ring with 1 eye, carbon steel with a new clamp rather than reusing it.

How does the One-piece steel EAR CLIP ring with 1 eye, carbon steel prevent hose slippage under vibration?

The One-piece steel EAR CLIP ring with 1 eye, carbon steel prevents hose slippage under vibration through several simple but effective design features: - One-piece construction: the single-piece ring ensures uniform compression around the hose, eliminating weak points or seams that could open under cyclic loads. This consistent clamping force resists loosening when vibration is present. - 1 eye (ear) and dedicated pliers installation: the ear is crimped tightly with specially designed pliers to create a permanent, tamper-resistant closure. The controlled, localized deformation produces a high, repeatable radial pressure that grips the hose securely and does not back off under vibration. - Rounded inner edges: the inner radius distributes clamping pressure evenly and avoids cutting into or scoring the hose cover. By preventing damage to the hose surface, the clamp maintains friction and contact area, which reduces the chance of slip during dynamic movement. - Carbon steel material and galvanization: the stiffness and strength of carbon steel provide the necessary hoop strength to sustain clamping force under dynamic loads. Galvanization protects against corrosion that could weaken the clamp over time, preserving grip reliability in vibrating environments. Combined, these features produce a durable, uniformly applied clamping force and a secure, low-profile closure that minimizes hose movement and slippage even under continuous vibration.

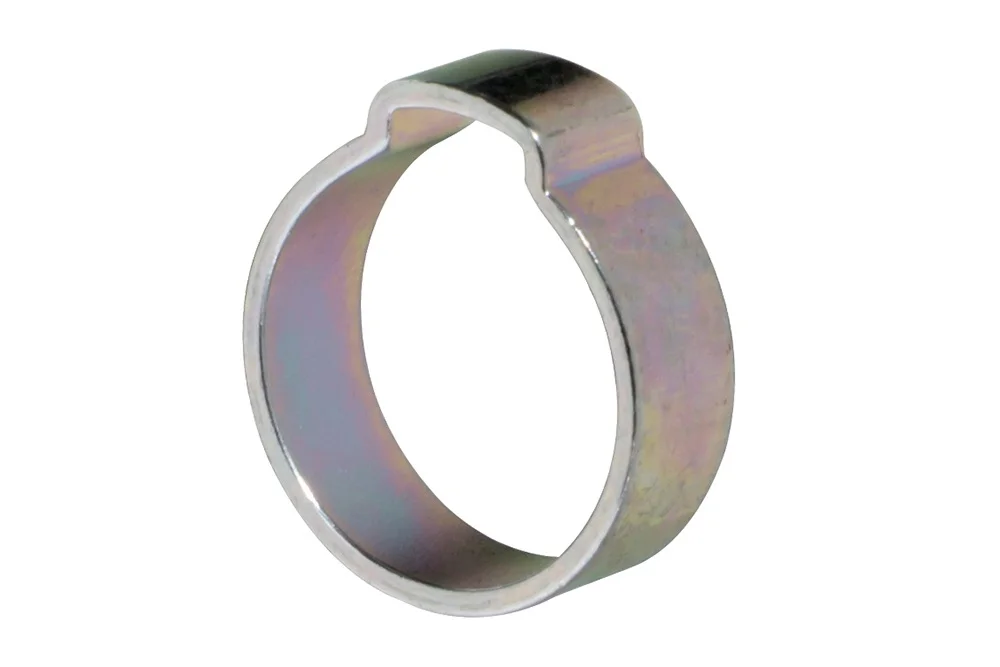

One-piece steel EAR CLIP ring with 1 eye, carbon steel

All products, Clamps for mounting ends/

Additional information

Material	CS – steel (cast iron)

EAR CLIP clamp ring with 1 ear for mounting various types of low-pressure hoses reinforced with a braid or without reinforcement. Easy and quick installation using specially designed pliers. Rounded edges inside the ring protect the hose from damage. Material: galvanized carbon steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-03012013	Clamp ring. EAR CLIP-1 9÷11 mm, W1	-	-	In stock	Enquiry
AB-03012021	Clamp ring. EAR CLIP-1 10÷12 mm, W1	-	-	In stock	Enquiry
AB-03012030	Clamp ring. EAR CLIP-1 11÷13 mm, W1	-	-	In stock	Enquiry
AB-03012048	Clamp ring. EAR CLIP-1 12÷14 mm, W1	-	-	In stock	Enquiry
AB-03012056	Clamp ring. EAR CLIP-1 14÷16 mm, W1	-	-	In stock	Enquiry
AB-03012064	Clamp ring. EAR CLIP-1 16÷18 mm, W1	-	-	In stock	Enquiry
AB-03012072	Clamp ring. EAR CLIP-1 8÷10 mm, W1	-	-	In stock	Enquiry
AB-03012080	Clamp ring. EAR CLIP-1 7÷9 mm, W1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

EAR CLIP clamp ring with 1 ear for mounting various types of low-pressure hoses reinforced with a braid or without reinforcement. Easy and quick installation using specially designed pliers. Rounded edges inside the ring protect the hose from damage. Material: galvanized carbon steel.
