How do I set and lock the output pressure on the Reducing valve for compressed air high pressure 60 bar, with pressure gauge, size DN20?

Reducing valve for compressed air high pressure 60 bar, with pressure gauge, size DN20 Format To set and lock the output pressure: 1. Ensure supply pressure is present (â¤60 bar) and isolate downstream equipment. Wear PPE. 2. Locate the adjustment screw/knob on the piston-type reducing valve. The manometer (Ã63) shows output pressure. 3. Slowly open supply and let system stabilize. Turn the adjustment screw clockwise to increase output pressure, counterclockwise to decrease it. Make adjustments slowly and wait for the reading to settle. 4. Set the output to the desired value within the valveâs available ranges (choose appropriate range: 0.5â12, 1â20, 2â35, or 3â50 bar). Do not exceed the selected range. 5. Once the correct pressure is reached and stable, lock the setting by tightening the locking nut or cap on the adjustment screw (if present). If the valve includes a built-in lock ring, press or tighten it according to the manufacturerâs orientation. 6. Verify the lock by attempting a small adjustment; pressure should remain constant. Re-check the manometer and downstream equipment under normal flow (up to specified flow rate) to confirm stability. 7. If no mechanical lock is provided, apply a tamper-evident seal or install an external lockable bonnet per safety rules. Operating notes: use within temperature range â10Â°C to +90Â°C, brass housing, BSP 1" female connection, and ensure chosen output range matches application to avoid overpressure.

Can the Reducing valve for compressed air high pressure 60 bar, with pressure gauge, size DN20 be installed in a vertical pipeline orientation?

Reducing valve for compressed air high pressure 60 bar, with pressure gauge, size DN20 Format can be installed in a vertical pipeline orientation. Yes - the described high-pressure piston-type pressure reducing valve can be installed vertically. Its piston-type design and brass housing tolerate various orientations; specified operating temperature (-10Â°C to +90Â°C), supply pressure up to 60 bar and flow characteristics (5000 l/min at 20 bar input, Îp=4 bar) do not preclude vertical mounting. Ensure the inlet/outlet ports (BSP 1" female) are correctly aligned per flow direction and that the manometer remains accessible for reading. If the installation site has excessive vibration, pulsation, or particulate contamination, consider upstream filtration and support to preserve valve performance.

Reducing valve for compressed air high pressure 60 bar, with pressure gauge, size DN20

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	90

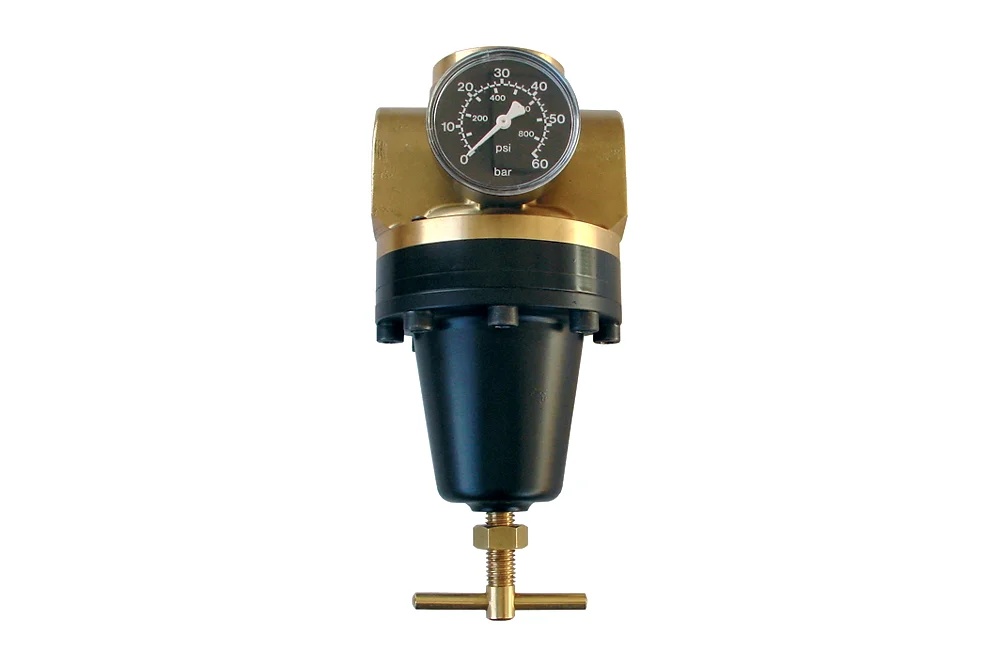

High-pressure piston-type pressure reducing valve with manometer, used for regulating working pressure and ensuring proper operation in the connected installation, regardless of changing medium consumption. Size: DN20. Housing material: brass. Output pressure range: 0.5÷12, 1÷20, 2÷35, 3÷50 bar. Supply pressure: up to 60 bar. Operating temperature: from -10°C to +90°C. Connection: BSP 1″ female thread. Manometer dial diameter: Ø63. Flow rate: 5000 l/min (at input pressure of 20 bar Δp = 4 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-302393	Reducer 60 bar DN 20, 1" BSP thread, with pressure gauge, 0.5 ÷ 12 bar	-	-	In stock	Enquiry
EW-302394	Reducer 60 bar DN 20, GW 1" BSP, with pressure gauge, 1 ÷ 20 bar	-	-	In stock	Enquiry
EW-302395	Reducer 60 bar DN 20, GW 1" BSP, with pressure gauge, 2 ÷ 35 bar	-	-	In stock	Enquiry
EW-302396	Reducer 60 bar DN 20, GW 1" BSP, with pressure gauge, 3 ÷ 50 bar	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure piston-type pressure reducing valve with manometer, used for regulating working pressure and ensuring proper operation in the connected installation, regardless of changing medium consumption. Size: DN20. Housing material: brass. Output pressure range: 0.5÷12, 1÷20, 2÷35, 3÷50 bar. Supply pressure: up to 60 bar. Operating temperature: from -10°C to +90°C. Connection: BSP 1″ female thread. Manometer dial diameter: Ø63. Flow rate: 5000 l/min (at input pressure of 20 bar Δp = 4 bar).
