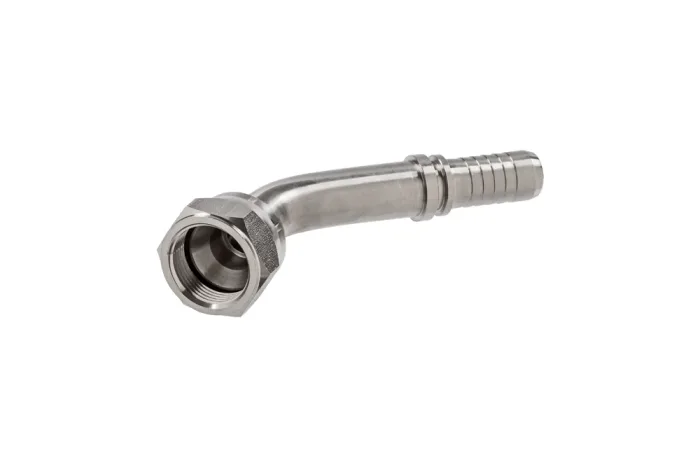

DKJ 45° hydraulic end, type ZJW310, AISI 316L steel

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	10, 15, 2, 45

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal UNF thread and nut, sealing on a 74° cone (DKJ), angled 45°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: AISI 316L steel.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TI-ZJW310-07-03-SS	End. JIC 45° G 7/16", hose 3/16", cone 74°, AISI 316L	5	-
TI-ZJW310-07-04-SS	End. JIC 45° G 7/16", hose 1/4", cone 74°, AISI 316L	6	-
TI-ZJW310-08-04-SS	End. JIC 45° G 1/2", hose 1/4", cone 74°, AISI 316L	6	-
TI-ZJW310-08-05-SS	End. JIC 45° G 1/2", hose 5/16", cone 74°, AISI 316L	8	-
TI-ZJW310-09-04-SS	End. JIC 45° G 9/16", hose 1/4", cone 74°, AISI 316L	6	-
TI-ZJW310-09-05-SS	End. JIC 45° G 9/16", hose 5/16", cone 74°, AISI 316L	8	-
TI-ZJW310-09-06-SS	End. JIC 45° G 9/16", hose 3/8", cone 74°, AISI 316L	10	-
TI-ZJW310-12-06-SS	End. JIC 45° G 3/4", hose 3/8", cone 74°, AISI 316L	10	-
TI-ZJW310-12-08-SS	End. JIC 45° G 3/4", hose 1/2", cone 74°, AISI 316L	12	-
TI-ZJW310-14-06-SS	End. JIC 45° G 7/8", hose 3/8", cone 74°, AISI 316L	10	-
TI-ZJW310-14-08-SS	End. JIC 45° G 7/8", hose 1/2", cone 74°, AISI 316L	12	-
TI-ZJW310-14-10-SS	End. JIC 45° G 7/8", hose 5/8", cone 74°, AISI 316L	16	-
TI-ZJW310-17-10-SS	End. JIC 45° G1/16", hose 5/8", cone 74°, AISI 316L	16	-
TI-ZJW310-17-12-SS	End. JIC 45° G1/16", hose 3/4", cone 74°, AISI 316L	20	-
TI-ZJW310-21-12-SS	End. JIC 45° G1.5/16", hose 3/4", cone 74°, AISI 316L	20	-
TI-ZJW310-21-16-SS	End. JIC 45° G1.5/16", hose 1", cone 74°, AISI 316L	25	-
TI-ZJW310-26-16-SS	End. JIC 45° G 1.5/8", hose 1", cone 74°, AISI 316L	25	-
TI-ZJW310-26-20-SS	End. JIC 45° G1.5/8", hose 1.1/4", cone 74°, AISI 316L	32	-
TI-ZJW310-30-24-SS	End. JIC 45° G 1.7/8", hose 1.1/2", cone 74°, AISI 316L	38	-
TI-ZJW310-40-32-SS	End. JIC 45° G 2.1/2", hose 2", cone 74°, AISI 316L	50	-

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal UNF thread and nut, sealing on a 74° cone (DKJ), angled 45°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: AISI 316L steel.
