Is the ISO-B quick connect plug with GW NPT, BSP (1/4" Ã· 1") in AISI 316 stainless steel, HANSEN, type HK compatible with other manufacturers' ISO-B couplings?

Yes. The ISO-B quick connect plug with GW NPT, BSP (1/4" Ã· 1") in AISI 316 stainless steel, HANSEN, type HK is compatible with ISO-B couplings from other manufacturers. It is manufactured to the ISO 7241-1 B standard and described explicitly as interchangeable with ISO-B quick couplings. Compatibility assumes matching ISO-B size, thread type (NPT or BSP as specified), and appropriate seal material for the application (NBR, EPDM, or Viton) and pressure rating (up to 344 bar depending on size). Ensure mating coupling is also made to ISO 7241-1 B and that temperature, fluid compatibility and working pressure are within the selected seal and size limits.

Can ISO-B quick connect plug with GW NPT, BSP (1/4" Ã· 1") in AISI 316 stainless steel, HANSEN, type HK be used for steam and hot oils up to 204Â°C?

Yes - ISO-B quick connect plug with GW NPT, BSP (1/4" Ã· 1") in AISI 316 stainless steel, HANSEN, type HK can be used for steam and hot oils up to 204Â°C only if fitted with Viton seals. The couplingâs AISI 316 construction and PED compliance are suitable for steam and oils; however NBR and EPDM seals have lower maximum temperatures (- no use above 121Â°C and 149Â°C respectively). Ensure the selected sizeâs working pressure (up to 344 bar depending on size) and the specific application pressure/flow conditions are within limits. For steam confirm compatibility with Viton and system pressure/condensation conditions before use.

Can ISO-B quick connect plug with GW NPT, BSP (1/4" Ã· 1") in AISI 316 stainless steel, HANSEN, type HK be used with aggressive chemicals?

Yes. ISO-B quick connect plug with GW NPT, BSP (1/4" Ã· 1") in AISI 316 stainless steel, HANSEN, type HK can be used with many aggressive chemicals, but suitability depends on the specific chemical, temperature and pressure conditions. Why: - Body material AISI 316 stainless steel offers good corrosion resistance to many acids, alkalis and solvents. - Three sealing options allow selection for chemical compatibility: NBR (-40Â°C to +121Â°C), EPDM (-54Â°C to +149Â°C) and Viton/FKM (-29Â°C to +204Â°C). - Designed for hydraulic, water, steam, fuels, oils, gases and chemicals; PED 2014/68/EU compliant and ISO 7241-1 B interchangeable. Important caveats: - NBR is poor with strong hydrocarbons, ketones, and some acids. Use only for compatible oils and mild chemicals. - EPDM resists polar chemicals, hot water and steam but is attacked by hydrocarbons, mineral oils and many solvents. - Viton/FKM has broad resistance to fuels, oils, many solvents and aggressive chemicals, and is the preferred choice for aggressive media at higher temperatures, but still has limits (e.g., incompatible with some amines, ketones, and hot nitric acid). - Working pressure (up to 344 bar) and flow rating must be verified for your chosen size and operating pressure drop conditions. - Consider temperature vs. seal rating: aggressive chemicals at elevated temperature may shorten seal life or cause failure. Recommendation: - Identify the exact chemical(s), concentration, temperature and operating pressure. - Compare against AISI 316 and the chosen seal compound chemical compatibility charts. - If in doubt or for highly corrosive media (e.g., strong oxidizers, concentrated acids), consult Hansen or the supplier for confirmation or consider special materials/coatings and approved seal compounds.

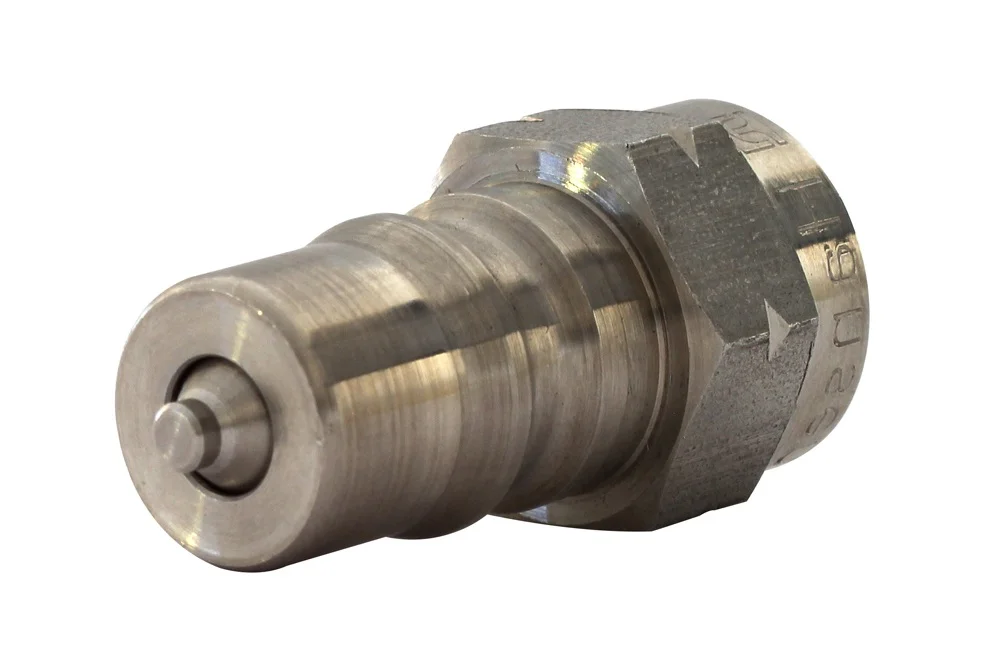

ISO-B quick connect plug with GW NPT, BSP (1/4″ ÷ 1″) in AISI 316 stainless steel, HANSEN, type HK

All products, Hydraulic quick couplings/

Additional information

Material	SS – stainless steel

HANSEN type HK quick coupling with internal NPT and BSP thread. Can be used interchangeably with ISO-B quick couplings from other manufacturers, made to ISO 7241-1 B standard. Designed and manufactured in accordance with the PED directive 2014/68/EU. Application in hydraulic power for hydraulic oil, in industry for water, steam, fuels, oils, gases, and chemicals. Material: AISI 316 steel. Sealing: NBR (operating temperature from -40°C to +121°C), EPDM (operating temperature from -54°C to +149°C), viton (operating temperature from -29°C to +204°C). Working pressure: up to 344 bar (depending on the size of the quick coupling). Flow has been provided for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HA-ML2K16BS	Plug 2-HK, GW 1/4" BSP, AISI 316, nitrile	-	255	In stock	Enquiry
HA-ML2K16BS-E	Plug 2-HK, GW 1/4" BSP, AISI 316, EPDM	-	255	In stock	Enquiry
HA-ML2K16BS-V	Plug 2-HK, GW 1/4" BSP, AISI 316, Viton	-	255	In stock	Enquiry
HA-ML3K21BS	3-HK plug, 3/8" BSP, AISI 316, nitrile	-	255	In stock	Enquiry
HA-ML3K21BS-V	3-HK plug, 3/8" BSP, AISI 316, Viton	-	255	In stock	Enquiry
HA-ML4KP26BS	4-HKP plug, GW 1/2" BSP, AISI 316, nitrile	-	293	In stock	Enquiry
HA-ML4KP26BS-E	4-HKP plug, GW 1/2" BSP, AISI 316, EPDM	-	293	In stock	Enquiry
HA-ML4KP26BS-V	4-HKP plug, GW 1/2" BSP, AISI 316, Viton	-	293	In stock	Enquiry
HA-ML6KP31BS	Plug 6-HKP, GW 3/4" BSP, AISI 316, nitrile	-	242	In stock	Enquiry
HA-ML6KP31BS-E	Plug 6-HKP, GW 3/4" BSP, AISI 316, EPDM	-	242	In stock	Enquiry
HA-ML6KP31BS-V	Plug 6-HKP, GW 3/4" BSP, AISI 316, Viton	-	242	In stock	Enquiry
HA-ML8KP36BS	8-HKP plug, 1" BSP thread, AISI 316, nitrile	-	207	In stock	Enquiry
HA-ML8KP36BS-E	Plug 8-HKP, GW 1" BSP, AISI 316, EPDM	-	207	In stock	Enquiry
HA-ML8KP36BS-V	Plug 8-HKP, GW 1" BSP, AISI 316, Viton	-	207	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

HANSEN type HK quick coupling with internal NPT and BSP thread. Can be used interchangeably with ISO-B quick couplings from other manufacturers, made to ISO 7241-1 B standard. Designed and manufactured in accordance with the PED directive 2014/68/EU. Application in hydraulic power for hydraulic oil, in industry for water, steam, fuels, oils, gases, and chemicals. Material: AISI 316 steel. Sealing: NBR (operating temperature from -40°C to +121°C), EPDM (operating temperature from -54°C to +149°C), viton (operating temperature from -29°C to +204°C). Working pressure: up to 344 bar (depending on the size of the quick coupling). Flow has been provided for a pressure drop of 3 bar.
