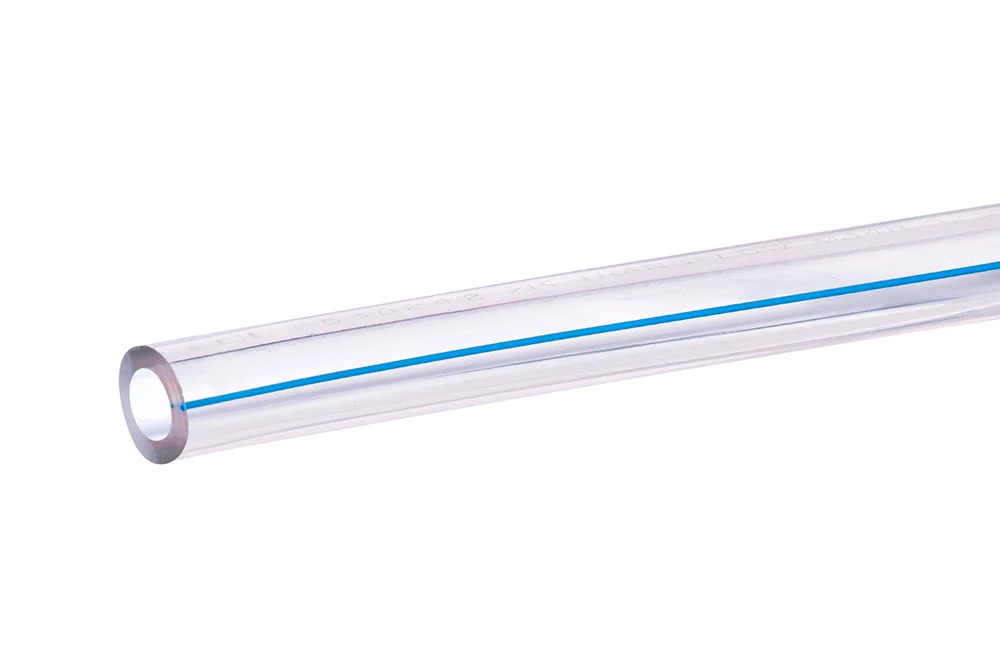

Milk and dairy product milking hose TYGON® S3™ M-34-R
Colorless, crystal-clear, flexible hose free of odor and taste, non-toxic, phthalate-free, and BPA (Bisphenol A) free. Designed for the transfer of milk and dairy products, used in milking equipment. The smooth, non-porous inner surface of the hose eliminates the problem of fat deposition, product particles, and bacterial growth. The built-in blue tape on the hose wall assures the customer of receiving the original TYGON® S3™ M-34-R hose, specifically designed for transporting raw milk. Meets hygiene and food contact requirements: European 1935/2004/EC and 10/2011 EU (for conditions and substances according to certification), American FDA, 3-A, Japanese MHLW370(3-D). Cleaning by rinsing according to a special procedure. Compliant with REACH and California Proposition 65 – does not contain hazardous and prohibited substances. Full hose roll length: 30 m. Working pressure defined relative to burst pressure with a safety factor of 1:5. Material: PVC (special). Maximum operating temperature: up to +74°C. Brittleness temperature: -36°C. Hardness: 66° Shore (A). Density: 1.21 g/cm³. Note: Product packaged in the Clean Zone of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
List of product variants
Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
---|---|---|---|---|
VE-ACK02035 | Hose TYGON S3 M-34-R 11.1x19 mm | 10 | 3.1 | |
VE-ACK02039 | Hose TYGON S3 M-34-R 12.7x20.7 mm | 12 | 2.8 | |
VE-ACK02043 | Hose TYGON S3 M-34-R 14.3x23.9 mm | 14 | 2.9 | |
VE-ACK02048 | Hose TYGON S3 M-34-R 15.9x25.7 mm | 16 | 2.8 | |
VE-ACK02056 | Hose TYGON S3 M-34-R 19x29.7 mm | 20 | 2.5 | |
VE-ACK02061 | Hose TYGON S3 M-34-R 22.2x34.9 mm | 22 | 2.6 | |
VE-ACK02065 | Hose TYGON S3 M-34-R 25.7x38.1 mm | 25 | 2.3 |
Colorless, crystal-clear, flexible hose free of odor and taste, non-toxic, phthalate-free, and BPA (Bisphenol A) free. Designed for the transfer of milk and dairy products, used in milking equipment. The smooth, non-porous inner surface of the hose eliminates the problem of fat deposition, product particles, and bacterial growth. The built-in blue tape on the hose wall assures the customer of receiving the original TYGON® S3™ M-34-R hose, specifically designed for transporting raw milk. Meets hygiene and food contact requirements: European 1935/2004/EC and 10/2011 EU (for conditions and substances according to certification), American FDA, 3-A, Japanese MHLW370(3-D). Cleaning by rinsing according to a special procedure. Compliant with REACH and California Proposition 65 – does not contain hazardous and prohibited substances. Full hose roll length: 30 m. Working pressure defined relative to burst pressure with a safety factor of 1:5. Material: PVC (special). Maximum operating temperature: up to +74°C. Brittleness temperature: -36°C. Hardness: 66° Shore (A). Density: 1.21 g/cm³. Note: Product packaged in the Clean Zone of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
Additional information
Material | PVC – polyvinyl chloride |
---|---|
Maximum operating temperature [°C] | 74 |
Vacuum resistance | yes |
Standard length [m] | 15, 30, 7.5 |
Additional information
Material | PVC – polyvinyl chloride |
---|---|
Maximum operating temperature [°C] | 74 |
Vacuum resistance | yes |
Standard length [m] | 15, 30, 7.5 |
