Is the Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A5 suitable for 60 bar pneumatic systems and which seal type should be used for BSPT vs BSP connections?

Yes . the Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A5 is specified for a working pressure of 60 bar and is suitable for use in 60 bar pneumatic systems, provided the rest of the system components and installation meet the same pressure rating and application requirements. Sealing guidance: - For the GZ BSPT (external tapered BSPT) thread use a thread sealant such as PTFE (Teflon) tape or a suitable pipe thread sealant/compound. The tapered thread achieves metal-to-metal interference for mechanical tightness, while the sealant fills gaps and prevents leaks. - For the GW BSP (internal cylindrical BSP) thread use a deformable washer (aluminium or copper washer) to form the seal between the mating faces. Cylindrical (parallel) BSP threads do not seal on the threads alone, so the washer provides the required face seal. Ensure correct sealing material compatibility with the media and temperature, and follow proper installation torque to avoid thread or washer damage.

Can the Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A5 be used for pneumatic hoses at 60 bar and what seals are recommended?

Yes. Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A5 is rated for a working pressure of 60 bar and is intended for connecting pneumatic components (including hoses), so it can be used for pneumatic hoses at 60 bar. The connection requires additional seals: for the tapered BSPT (GZ) thread use PTFE (Teflon) tape or a suitable thread sealant; for the cylindrical BSP (GW) thread use a soft metal washer (aluminum or copper) to ensure tightness. Ensure correct installation torque and inspect compatibility of seals with your gas/air and temperature conditions.

Can the Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A5 be used at 60 bar and which seals are recommended for BSPT vs BSP?

Yes. the Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A5 is specified with a working pressure of 60 bar, so it can be used at that pressure when installed correctly. Sealing recommendations: - BSPT (tapered male thread, GZ BSPT): use a thread sealant such as PTFE (Teflon) tape or a liquid pipe sealant appropriate for pneumatic applications. The taper creates a pressure-tight metal-to-metal fit when combined with a sealant. - BSP (cylindrical female thread, GW BSP): use a flat washer or gasket (typically aluminum or copper washer) on the cylindrical (parallel) thread connection to achieve tightness; the seal is formed by the washer/gasket compressed between mating faces, not by the thread itself. Notes: - Ensure compatible sealant/washer materials for the media and temperature in your system. - Follow proper torquing and assembly practices to avoid over-tightening brass threads.

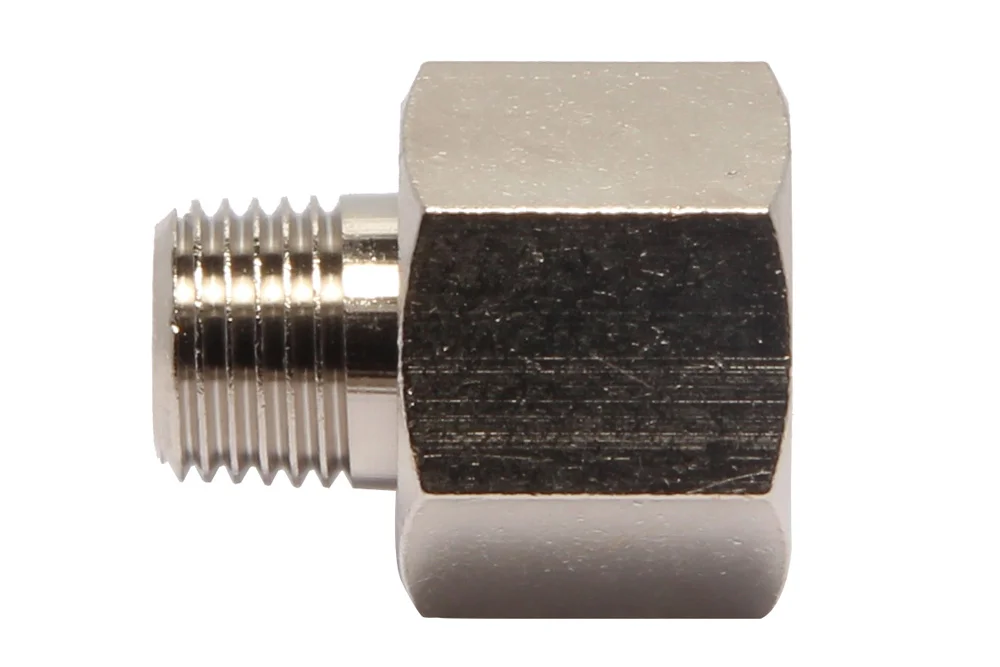

Nickel-plated brass adaptor with GZ BSPT/GW BSP, type A5

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

External BSPT thread adaptor and internal BSP thread type A5, intended for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of tapered threads, Teflon tape or sealant is used; for cylindrical threads, aluminum or copper washers are used. Material: nickel-plated brass. Working pressure: 60 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2105001	Adaptor A5, GW BSP 1/8" / GZ BSPT 1/8"	-	60	In stock	Enquiry
MW-2105002	Adaptor A5, GW BSP 1/4" / GZ BSPT 1/8"	-	60	In stock	Enquiry
MW-2105003	Adaptor A5, GW BSP 1/4" / GZ BSPT 1/4"	-	60	In stock	Enquiry
MW-2105004	Adaptor A5, GW BSP 3/8" / GZ BSPT 1/4"	-	60	In stock	Enquiry
MW-2105005	Adaptor A5, GW BSP 3/8" / GZ BSPT 3/8"	-	60	In stock	Enquiry
MW-2105006	Adaptor A5, GW BSP 1/2" / GZ BSPT 3/8"	-	60	In stock	Enquiry
MW-2105007	Adaptor A5, GW BSP 1/2" / GZ BSPT 1/2"	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

External BSPT thread adaptor and internal BSP thread type A5, intended for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of tapered threads, Teflon tape or sealant is used; for cylindrical threads, aluminum or copper washers are used. Material: nickel-plated brass. Working pressure: 60 bar.
