Is a Nickel-plated brass nipple with GZ, type A1 suitable for use with pneumatic hoses at 60 bar, and which seal type is recommended for cylindrical versus tapered threads?

Yes. Nickel-plated brass nipple with GZ, type A1 is intended for connecting pneumatic components (including hoses) and is rated for a working pressure of 60 bar, so it is suitable for use with pneumatic hoses at that pressure. Recommended seal types: - Tapered threads (GZ if tapered): use PTFE (Teflon) tape or a thread sealant. - Cylindrical threads (GZ if cylindrical): use an aluminum or copper washer to achieve tightness.

Can Nickel-plated brass nipple with GZ, type A1 withstand continuous 60 bar pneumatic use and which seals ensure reliable tightness?

Yes - Nickel-plated brass nipple with GZ, type A1 is rated for a working pressure of 60 bar and therefore can withstand continuous pneumatic service at that pressure provided installation and operating conditions meet standard practice (correct mating parts, no excessive vibration, temperature within spec, and proper maintenance). For reliable tightness: if the mating thread is tapered, use PTFE (Teflon) tape or a thread sealant; if the mating thread is cylindrical (GZ), use a flat metal washer (aluminium or copper) between the nipple shoulder and the mating face as recommended. Ensure threads are clean, correctly tightened to avoid over-torquing, and compatible with brass to prevent galvanic issues.

Can Nickel-plated brass nipple with GZ, type A1 be used for pneumatic fittings at 60 bar, and what seals are recommended?

Yes. Nickel-plated brass nipple with GZ, type A1 (Format) can be used for pneumatic fittings at a working pressure of 60 bar, provided the installation follows thread and sealing recommendations. The part is intended for connecting pneumatic components (including hoses), and the stated working pressure is 60 bar. Recommended seals: - For tapered threads (e.g. G tapered): use PTFE (Teflon) tape or a suitable thread sealant designed for pneumatic/high-pressure use. Apply tape or sealant on the male threads to ensure gas-tightness and avoid over-tightening. - For cylindrical (straight) threads: use a flat metal sealing washer. aluminium or copper washer. sized to the thread and seat to provide a reliable seal under pressure. Additional notes: - Ensure compatibility of nickel-plated brass with the media and environment (temperature, corrosives). Brass is suitable for many pneumatic systems but confirm compatibility for your specific application. - Tighten to recommended torque to avoid thread damage or distortion of washers. Replace washers and inspect seals when reassembling after maintenance. - If dynamic or high-vibration conditions exist, consider thread-locking sealants rated for pneumatic use or additional mechanical retention.

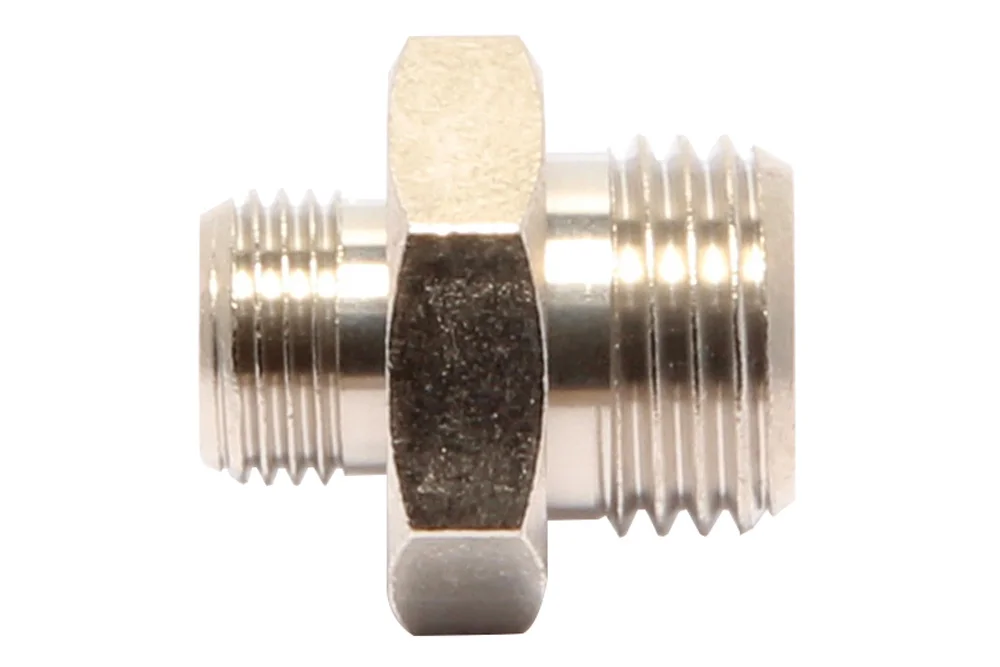

Nickel-plated brass nipple with male thread, type A1

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

Nipple with a parallel male thread, type A1, intended for connecting pneumatic components (including hoses) to one another. A tight connection usually requires additional sealing: PTFE tape or sealant for a tapered thread, or aluminum or copper washers for a parallel thread. Material: nickel-plated brass. Working pressure: 60 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2101000	Nipple A1, M5 male / 1/8" BSP male	-	60	In stock	Enquiry
MW-2101001	Nipple A1, 1/8" BSP male / 1/8" BSP male	-	60	In stock	Enquiry
MW-2101002	Nipple A1, 1/8" BSP male / 1/4" BSP male	-	60	In stock	Enquiry
MW-2101003	Nipple A1, 1/8" BSP male / 3/8" BSP male	-	60	In stock	Enquiry
MW-2101004	Nipple A1, 1/4" BSP male / 1/4" BSP male	-	60	In stock	Enquiry
MW-2101005	Nipple A1, 1/4" BSP male / 3/8" BSP male	-	60	In stock	Enquiry
MW-2101006	Nipple A1, 1/4" BSP male / 1/2" BSP male	-	60	In stock	Enquiry
MW-2101007	Nipple A1, 3/8" BSP male / 3/8" BSP male	-	60	In stock	Enquiry
MW-2101008	Nipple A1, 3/8" BSP male / 1/2" BSP male	-	60	In stock	Enquiry
MW-2101009	Nipple A1, 1/2" BSP male / 1/2" BSP male	-	60	In stock	Enquiry
MW-2101010	Nipple A1, 1/2" BSP male / 3/4" BSP male	-	60	In stock	Enquiry
MW-2101011	Nipple A1, 3/4" BSP male / 3/4" BSP male	-	60	In stock	Enquiry
MW-2101A00	Nipple A1, M5 male / M5 male	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Nipple with a parallel male thread, type A1, intended for connecting pneumatic components (including hoses) to one another. A tight connection usually requires additional sealing: PTFE tape or sealant for a tapered thread, or aluminum or copper washers for a parallel thread. Material: nickel-plated brass. Working pressure: 60 bar.
