Can Nickel-plated brass nipple with GZ BSPT, type A2 be sealed with PTFE tape for tapered threads and washers for cylindrical threads to ensure leak-free pneumatic connections?

Yes. Nickel-plated brass nipple with GZ BSPT, type A2 can be sealed with PTFE (Teflon) tape on tapered (BSPT) threads and with washers on cylindrical threads to achieve leak-free pneumatic connections, provided correct practices are followed. Key points: - For tapered BSPT threads use PTFE tape or a suitable thread sealant; wrap tape clockwise (when viewed from the male end) 3â5 turns, avoid overfilling, and ensure tape does not contaminate downstream components. - For cylindrical (parallel) threads use the specified sealing method.aluminum or copper washers or an Oâring (if applicable).ensuring the washer matches the thread size and is properly compressed to form a seal. - Nickel-plated brass is compatible with PTFE tape and common washer materials; working pressure (60 bar) is high, so ensure fittings, washers, and assembly torque are rated for that pressure. - Assembly tips: hand-start threads to avoid cross-threading, tighten to manufacturer torque or a recommended safe torque, test at working pressure and inspect for leaks. Replace damaged washers or fittings. - If vibration, frequent disassembly, or critical safety requirements exist, consider anaerobic thread sealants or metal-to-metal sealing solutions and periodic inspection. Using PTFE tape for tapered threads and appropriate washers for cylindrical threads is the standard, acceptable method for achieving leak-free joints with Nickel-plated brass nipple with GZ BSPT, type A2.

Can Nickel-plated brass nipple with GZ BSPT, type A2 be used at 60 bar for pneumatic hose connections requiring tapered or cylindrical thread seals?

Yes - the Nickel-plated brass nipple with GZ BSPT, type A2 can be used at 60 bar for pneumatic hose connections, provided proper sealing method is applied. The part is rated for 60 bar. For tapered BSPT threads use PTFE (Teflon) tape or a thread sealant to achieve a pressure-tight joint; for cylindrical threads use an appropriate aluminum or copper washer (or an equivalent gasket) to seal the flange/face. Ensure correct installation torque and compatibility of seals with media and temperature.

Is Nickel-plated brass nipple with GZ BSPT, type A2 compatible with aluminum or copper washer seals for cylindrical threads?

Yes. Nickel-plated brass nipple with GZ BSPT, type A2 is compatible with aluminum or copper washer seals for cylindrical threads. The product description specifies that for cylindrical (parallel) BSPT threads the usual sealing method is soft metal washers (aluminium or copper). As a nickel-plated brass external threaded nipple intended for pneumatic connections and rated to 60 bar, it is suitable for use with those washers to achieve the required tightness, provided the mating female port is designed for a washer seal and both sealing surfaces are clean, undamaged and correctly tightened to the recommended torque.

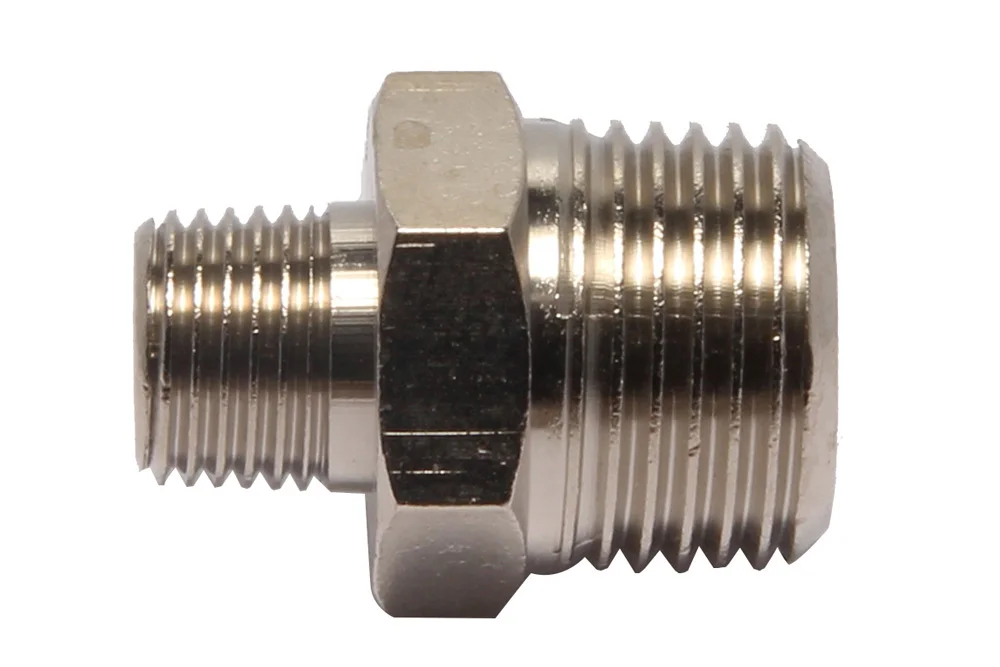

Nickel-plated brass nipple with GZ BSPT, type A2

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

BSPT type A2 external threaded nipple, intended for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of tapered threads, Teflon tape or sealant is used; for cylindrical threads, aluminum or copper washers are used. Material: nickel-plated brass. Working pressure: 60 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2102001	Nipple A2, GZ BSPT 1/8" / GZ BSPT 1/8"	-	60	In stock	Enquiry
MW-2102002	Nipple A2, GZ BSPT 1/8" / GZ BSPT 1/4"	-	60	In stock	Enquiry
MW-2102003	Nipple A2, GZ BSPT 1/8" / GZ BSPT 3/8"	-	60	In stock	Enquiry
MW-2102004	Nipple A2, GZ BSPT 1/4" / GZ BSPT 1/4"	-	60	In stock	Enquiry
MW-2102005	Nipple A2, GZ BSPT 1/4" / GZ BSPT 3/8"	-	60	In stock	Enquiry
MW-2102006	Nipple A2, GZ BSPT 1/4" / GZ BSPT 1/2"	-	60	In stock	Enquiry
MW-2102007	Nipple A2, GZ BSPT 3/8" / GZ BSPT 3/8"	-	60	In stock	Enquiry
MW-2102008	Nipple A2, GZ BSPT 3/8" / GZ BSPT 1/2"	-	60	In stock	Enquiry
MW-2102009	Nipple A2, GZ BSPT 1/2" / GZ BSPT 1/2"	-	60	In stock	Enquiry
MW-2102010	Nipple A2, GZ BSPT 1/2" / GZ BSPT 3/4"	-	60	In stock	Enquiry
MW-2102011	Nipple A2, GZ BSPT 3/4" / GZ BSPT 3/4"	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

BSPT type A2 external threaded nipple, intended for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of tapered threads, Teflon tape or sealant is used; for cylindrical threads, aluminum or copper washers are used. Material: nickel-plated brass. Working pressure: 60 bar.
