Does the Nickel-plated brass tee "T" with BSPT GZ, type A16 require thread sealant or washers for leak-free pneumatic connections?

Nickel-plated brass tee "T" with BSPT GZ, type A16 requires additional sealing for leak-free pneumatic connections. If the BSPT threads on your A16 are tapered (as BSPT usually are), use Teflon (PTFE) tape or a suitable pipe thread sealant. If the specific connection uses cylindrical threads instead, seal with an appropriate metal washer (aluminum or copper) between the mating faces. In short: tapered BSPT â thread sealant/tape; cylindrical â aluminum/copper washer.

Is thread sealing required for the Nickel-plated brass tee "T" with BSPT GZ, type A16 when used in pneumatic systems?

Yes. For the Nickel-plated brass tee "T" with BSPT GZ, type A16 used in pneumatic systems, thread sealing is required. The description states that tightness usually requires additional seals: for tapered BSPT threads use PTFE (Teflon) tape or a suitable thread sealant; for cylindrical threads use aluminum or copper sealing washers. Ensure proper sealant compatible with compressed air and the nickel-plated brass material; follow manufacturer's torque recommendations and pressure rating (60 bar).

When using the Nickel-plated brass tee "T" with BSPT GZ, type A16, which thread sealing method is recommended?

For the Nickel-plated brass tee "T" with BSPT GZ, type A16 Format, use thread sealing according to the thread form: because BSPT is a tapered thread, seal the connection with PTFE (Teflon) tape or a suitable pipe thread sealant. Do not use flat washers for BSPT tapered threads.

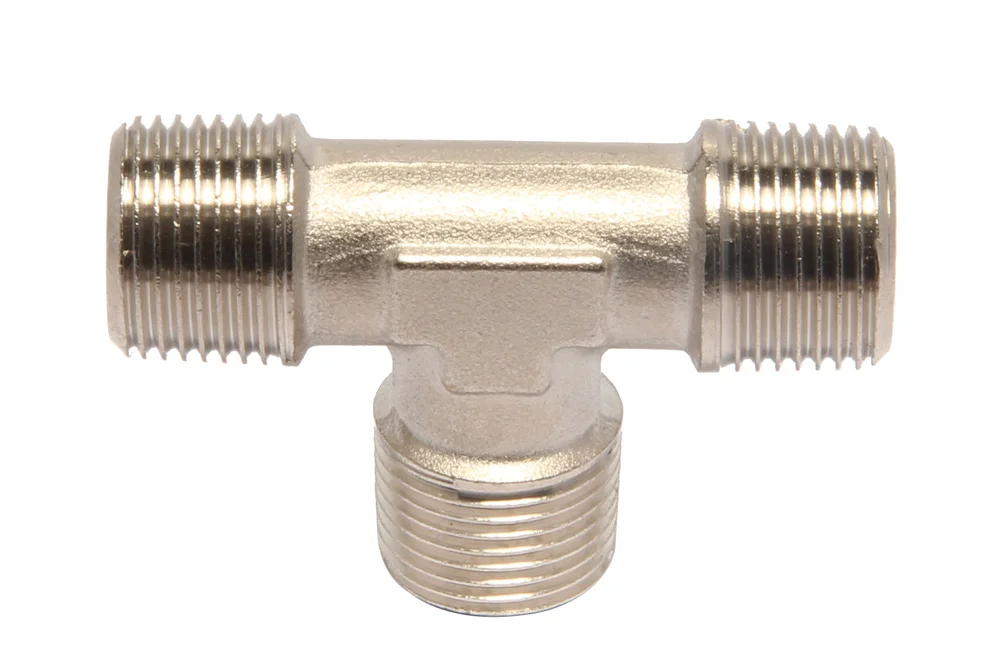

Nickel-plated brass tee “T” with BSPT GZ, type A16

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

T-shaped “T” fitting with external BSPT threads type A16, intended for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of tapered threads, Teflon tape or sealant is needed; for cylindrical threads, aluminum or copper washers are required. Material: nickel-plated brass. Working pressure: 60 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2116001	Screw tee A16, 3 x GZ BSPT 1/8"	-	60	In stock	Enquiry
MW-2116002	Screw tee A16, 3 x GZ BSPT 1/4"	-	60	In stock	Enquiry
MW-2116003	Screw tee A16, 3 x GZ BSPT 3/8"	-	60	In stock	Enquiry
MW-2116004	Screw tee A16, 3 x GZ BSPT 1/2"	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

T-shaped “T” fitting with external BSPT threads type A16, intended for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of tapered threads, Teflon tape or sealant is needed; for cylindrical threads, aluminum or copper washers are required. Material: nickel-plated brass. Working pressure: 60 bar.
