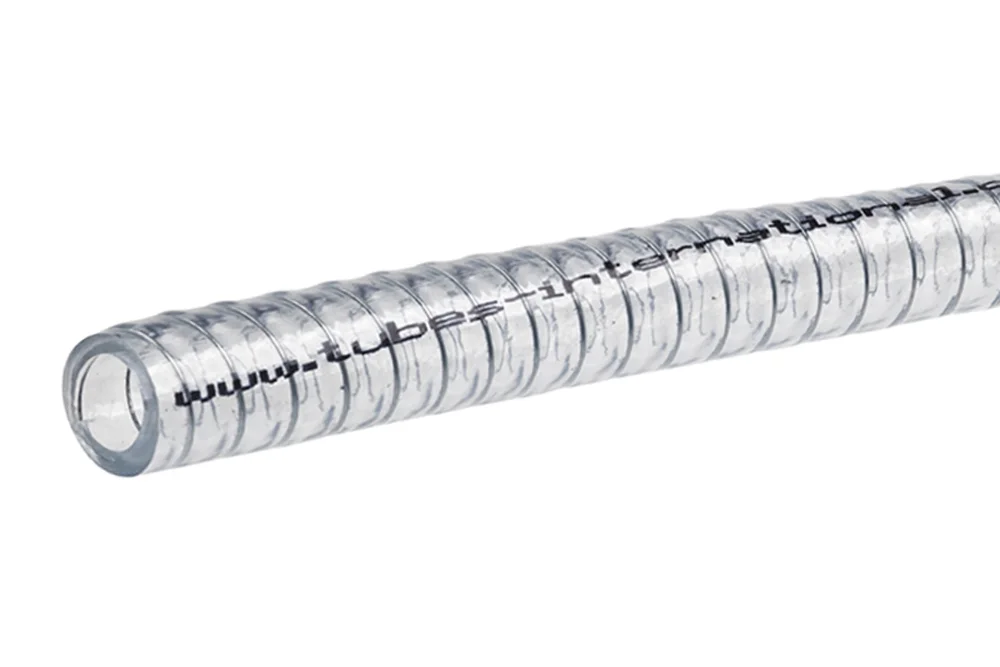

PVC food substance reinforced PVC STAR MS steel wire spiral hose
Lightweight, highly flexible suction and discharge hose intended for water, juices, beverages, and alcohols with a concentration of up to 50% (and up to 20% for hoses with the SO-PVCSTAR-MS index), and other food products. Not recommended for food substances containing fats and oils. Suitable for milk and its derivatives (however, hoses with the SO-PVCSTAR-MS index are not suitable for milk and dairy products). Reinforcement with a steel wire spiral embedded in the PVC wall provides good resistance to vacuum and hose collapse. The smooth inner surface reduces flow losses and ensures ease of cleaning. The transparent wall allows for easy visual monitoring of flow. In the absence of direct contact with food (in industry, construction, agriculture), it can be used for light chemicals, water, sludges, and wastewater, and other fluids (without fats, oils, and hydrocarbons). As a non-braided hose, it exhibits some elongation under pressure. Standards and requirements: Food industry, food contact: compliant with European requirements 1935/2004/EC and 10/2011/EU (simulants A, B, C, and D1), 2023/2006/EC (GMP). For hoses with the SO-PVCSTAR-MS index: Food industry, food contact: compliant with European requirements 1935/2004/EC and 10/2011/EU (simulants A, B, and C), 2023/2006/EC (GMP). Hose material: transparent PVC. Reinforcement: galvanized steel spiral. Working pressure: from 6 bar to 11.5 bar, depending on the hose diameter. Operating temperature: from -15°C to +60°C.
List of product variants
Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
---|---|---|---|---|
SO-PVCSTAR-MS-12 | PVC STAR hose 12 mm | 12 | 10 | |
SO-PVCSTAR-MS-16 | PVC STAR MS Hose 16 mm | 16 | 10 | |
SO-PVCSTAR-MS-25 | PVC STAR MS hose 25 mm | 25 | 8 | |
SO-PVCSTAR-MS-32 | PVC STAR MS Hose 32 mm | 32 | 6 | |
SO-PVCSTAR-MS-38 | PVC STAR MS Hose 38 mm | 38 | 5 | |
SO-PVCSTAR-MS-40 | PVC STAR hose 40 mm | 40 | 5 | |
SO-PVCSTAR-MS2-12 | PVCSTAR MS2 12 mm hose | 12 | 11.5 | |
SO-PVCSTAR-MS2-16 | PVCSTAR MS2 16 mm hose | 16 | 10.5 | |
SO-PVCSTAR-MS2-20 | PVCSTAR MS2 hose 20 mm | 20 | 10 | |
SO-PVCSTAR-MS2-25 | PVCSTAR MS2 hose 25 mm | 25 | 9.5 | |
SO-PVCSTAR-MS2-32 | PVCSTAR MS2 hose 32 mm | 32 | 9 | |
SO-PVCSTAR-MS2-38 | PVCSTAR MS2 hose 38 mm | 38 | 7.5 | |
SO-PVCSTAR-MS2-40 | PVCSTAR MS2 hose 40 mm | 40 | 7.5 | |
SO-PVCSTAR-MS2-50 | PVCSTAR MS2 hose 50 mm | 50 | 6 |
Lightweight, highly flexible suction and discharge hose intended for water, juices, beverages, and alcohols with a concentration of up to 50% (and up to 20% for hoses with the SO-PVCSTAR-MS index), and other food products. Not recommended for food substances containing fats and oils. Suitable for milk and its derivatives (however, hoses with the SO-PVCSTAR-MS index are not suitable for milk and dairy products). Reinforcement with a steel wire spiral embedded in the PVC wall provides good resistance to vacuum and hose collapse. The smooth inner surface reduces flow losses and ensures ease of cleaning. The transparent wall allows for easy visual monitoring of flow. In the absence of direct contact with food (in industry, construction, agriculture), it can be used for light chemicals, water, sludges, and wastewater, and other fluids (without fats, oils, and hydrocarbons). As a non-braided hose, it exhibits some elongation under pressure. Standards and requirements: Food industry, food contact: compliant with European requirements 1935/2004/EC and 10/2011/EU (simulants A, B, C, and D1), 2023/2006/EC (GMP). For hoses with the SO-PVCSTAR-MS index: Food industry, food contact: compliant with European requirements 1935/2004/EC and 10/2011/EU (simulants A, B, and C), 2023/2006/EC (GMP). Hose material: transparent PVC. Reinforcement: galvanized steel spiral. Working pressure: from 6 bar to 11.5 bar, depending on the hose diameter. Operating temperature: from -15°C to +60°C.
Additional information
Material | PVC – polyvinyl chloride |
---|---|
Maximum operating temperature [°C] | 65 |
Minimum operating temperature [°C] | -5 |
Vacuum resistance | yes |
Standard length [m] | 25, 30, 60 |
Reinforcement | steel spiral |
Additional information
Material | PVC – polyvinyl chloride |
---|---|
Maximum operating temperature [°C] | 65 |
Minimum operating temperature [°C] | -5 |
Vacuum resistance | yes |
Standard length [m] | 25, 30, 60 |
Reinforcement | steel spiral |
