Is the PVC ISO-F quick connector plug cap, type IF compatible with standard ISO-F couplings and resistant to common hydraulic fluids?

Yes . the PVC ISO-F quick connector plug cap, type IF is compatible with standard ISO-F couplings and will fit ISO-F non-leak quick coupling sockets to protect connections from contamination. Made of PVC, it provides basic chemical resistance to many common hydraulic fluids (mineral oils, some synthetic oils, and anti-freeze mixtures). However, PVC has limitations: it is less resistant to aggressive fluids such as strong solvents, phosphate esters, certain hydraulic fire-resistant fluids, and some glycol-based fluids at elevated temperatures. For long-term service in aggressive chemical environments, high temperatures, or where full fluid compatibility is critical, choose a cap made from a more chemically resistant material (e.g., nitrile, EPDM, or PTFE) or consult the fluid and material compatibility data.

Can the PVC ISO-F quick connector plug cap, type IF withstand extreme temperatures without losing sealing performance?

The PVC ISO-F quick connector plug cap, type IF offers effective protection against contamination and ingress of impurities under normal operating conditions, but PVC has limited high- and low-temperature resistance. At elevated temperatures PVC can soften, deform or lose elasticity, compromising the seal; at very low temperatures it can become brittle and crack, also reducing sealing performance. Therefore the PVC ISO-F quick connector plug cap, type IF should not be relied on for extreme-temperature applications - for such environments choose a cap made from materials rated for the specific temperature range (e.g., silicone, EPDM, or high-temperature plastics) and verify manufacturer temperature specs.

How should I clean and disinfect the PVC ISO-F quick connector plug cap, type IF without damaging the seal?

To clean and disinfect the PVC ISO-F quick connector plug cap, type IF without damaging the seal, follow these steps: 1. Preparation - Remove the cap from the coupling before cleaning. - Work in a clean, dust-free area and wear gloves. 2. Cleaning - Rinse with lukewarm water to remove loose dirt. - Use a soft cloth or a soft-bristled brush and a mild, pH-neutral detergent (e.g., diluted dish soap). Gently wipe all surfacesâinside and outsideâavoiding abrasive scrubbing. - Rinse thoroughly with clean lukewarm water to remove any soap residue. 3. Disinfection - Use isopropyl alcohol 70% or a diluted bleach solution (0.1 sodium hypochlorite) for disinfection. For alcohol: apply with a soft cloth or spray and allow contact for at least 30 seconds. For bleach: prepare fresh solution, apply briefly (no more than 1 minute), then rinse thoroughly. - Alternatively, use a commercially available disinfectant compatible with PVC and non-corrosive to elastomer sealsâcheck manufacturer compatibility. 4. Protecting the seal - Avoid solvents such as acetone, toluene, methyl ethyl ketone, or strong degreasersâthey can swell, harden, or crack PVC and damage seals. - Do not use abrasive pads or brushes that can nick the sealing surface. - Avoid high temperatures, steam sterilization, or prolonged immersion in hot water; keep exposure below typical ambient/warm ranges. - Do not use concentrated bleach or strong alkaline cleaners that can degrade PVC or sealing materials. 5. Drying and inspection - After rinsing, air-dry or use a lint-free cloth; ensure the internal sealing surfaces are fully dry. - Inspect the cap and seal for cracks, deformation, or residue before reuse. Replace if any damage is visible. 6. Storage - Store the PVC ISO-F quick connector plug cap, type IF in a clean, cool, dry place away from direct sunlight and chemical vapors. Following these steps will clean and disinfect the PVC ISO-F quick connector plug cap, type IF while minimizing risk to the PVC and the seal.

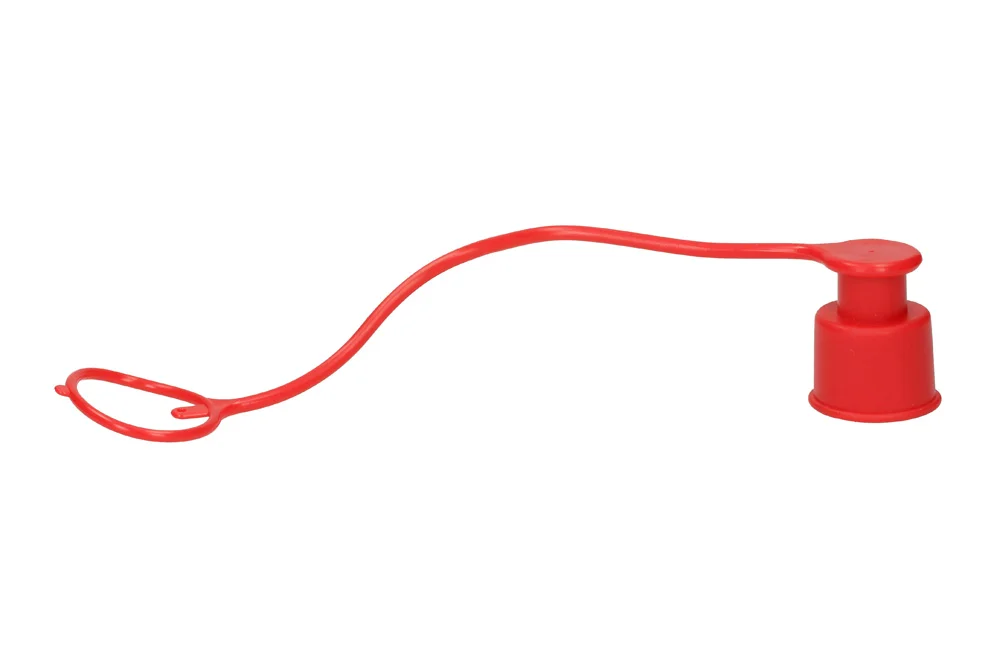

Quick-coupling plug cap ISO-F, PVC, type IF

All products, Hydraulic quick couplings/

Additional information

Material	P – material (plastic)

Quick-coupling plug cap Leak-free ISO-F protecting the couplings against dirt, which could result in damage to components and the ingress of contaminants into the system. Material: PVC. Color: red

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HQ-IF06-M-RED	Plug cap ISO F DN6, PVC red	-	-	In stock	Enquiry
HQ-IF10-M-RED	Plug cap ISO F DN10, PVC red	-	-	In stock	Enquiry
HQ-IF12-M-RED	Plug cap ISO F DN12, PVC red	-	-	In stock	Enquiry
HQ-IF16-M-RED	Plug cap ISO F DN16, PVC red	-	-	In stock	Enquiry
HQ-IF19-M-RED	Plug cap ISO F DN19, PVC red	-	-	In stock	Enquiry
HQ-IF25-M-RED	Plug cap ISO F DN25, PVC red	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-coupling plug cap Leak-free ISO-F protecting the couplings against dirt, which could result in damage to components and the ingress of contaminants into the system. Material: PVC. Color: red
