Is the Quick connector for water DN11.8 with GW, stainless steel compatible with all common hose threads and washing accessories at 200 bar and +100Â°C?

Quick connector for water DN11.8 with GW, stainless steel is designed as a DN11.8 quick coupling plug with internal thread to enable fast connection of a water gun to a hose or other washing accessories. Its construction in AISI 303/304L stainless steel and specified working pressure (200 bar) and operating temperature (up to +100Â°C) confirm it is suitable for high-pressure, high-temperature washing applications. However, compatibility with "all common hose threads and washing accessories" cannot be guaranteed from the provided description alone. The internal thread (GW) and DN11.8 dimension indicate compatibility with accessories that share the same thread standard and nominal size. If a hose or accessory uses a different thread type, pitch, or nominal diameter, it will not mate properly.even if it is rated for 200 bar and +100Â°C. To ensure compatibility you must verify that the mating part uses the same DN11.8/GW thread specification or use an appropriate adapter certified for the stated pressure and temperature.

Can the Quick connector for water DN11.8 with GW, stainless steel be used with different hose materials (rubber, PVC, polyurethane) at 200 bar and +100Â°C?

Yes - the Quick connector for water DN11.8 with GW, stainless steel can be used with different hose materials (rubber, PVC, polyurethane) provided the hoses and their fittings are rated for the same working conditions. The connector itself (AISI 303/304L) is specified for 200 bar and up to +100Â°C, so compatibility depends on the hose material, its reinforcement, and the crimped or screw coupling used. Many high-pressure rubber and reinforced polyurethane hoses are rated to 200 bar and +100Â°C, while standard PVC hoses often have lower pressure and temperature limits and may fail. Always verify the hose manufacturerâs pressure and temperature ratings and ensure the hose assembly (ferrule/fitting) is compatible with the DN11.8 connector and pressure/temperature conditions before use.

Does the Quick connector for water DN11.8 with GW, stainless steel require specific sealing types for 200 bar and +100Â°C?

Quick connector for water DN11.8 with GW, stainless steel does not state a specific sealing type in the provided description. However, at 200 bar and up to +100Â°C you must use seals rated for both the pressure and temperature. Recommended sealing materials/application notes: - PTFE (Teflon) or Kalrez (FFKM): excellent chemical and temperature resistance up to and beyond +100Â°C; suitable for high-pressure use when correctly sized. - NBR (Buna-N): common for water but typically limited to ~+80â+100Â°C; may be marginal at +100Â°C under continuous useâverify supplier data. - EPDM: good for hot water and steam resistance up to ~+120Â°C; widely used for water applications and suitable for high pressure if specified. - FKM (Viton): good temperature and chemical resistance; acceptable for +100Â°C and high pressure in many cases. Also consider: - Seal geometry and size must match the connectorâs thread and sealing seat (O-ring, flat gasket, cone seat, etc.). - Use ISO/EN-compliant seals rated for 200 bar dynamic/static pressure where applicable. - For safety and longevity verify compatibility with water temperature cycles, any additives/chemicals, and mechanical wear at 200 bar. - Follow manufacturer recommendations or ask the connector supplier for approved seal types and installation torque to ensure leak-free performance. If no manufacturer guidance is available, request technical data sheet or seal recommendations from the supplier of the Quick connector for water DN11.8 with GW, stainless steel before operation at 200 bar and +100Â°C.

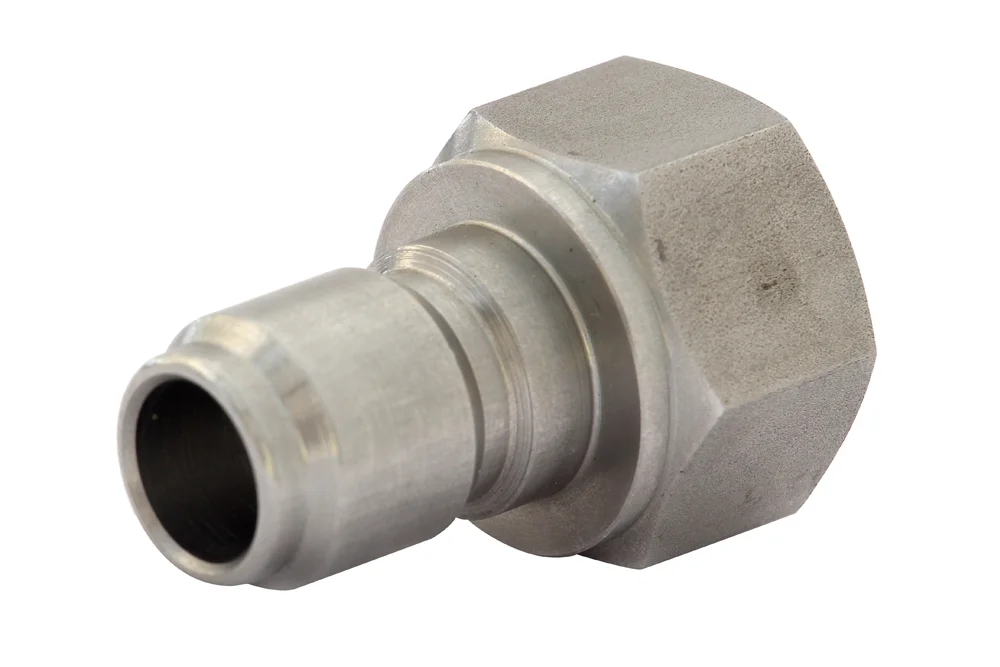

Quick connector for water DN11.8 with GW, stainless steel

All products, Quick couplings for water/

Additional information

Material	SS – stainless steel

Quick coupling plug DN11.8 with internal thread facilitating quick connection of the water gun to the hose or other washing accessories. Material: AISI 303/304L steel. Working pressure: 200 bar. Operating temperature: up to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AK-ADAPT-04-F	Quick coupling plug DN11.8, 1/4" BSP thread, stainless steel	-	200	In stock	0 zł		Enquiry
AK-ADAPT-08-F	Quick coupling plug DN11.8, G 1/2" BSP, stainless steel	-	200	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling plug DN11.8 with internal thread facilitating quick connection of the water gun to the hose or other washing accessories. Material: AISI 303/304L steel. Working pressure: 200 bar. Operating temperature: up to +100°C.
