Can the NiTO SS water quick connector plug with hose end, stainless steel be sterilized frequently without degrading the Viton seal or AISI 316L body?

Yes. The NiTO SS water quick connector plug with hose end, stainless steel can be sterilized frequently without degrading the AISI 316L body or the Viton seal provided sterilization stays within the stated operating limits. Reasons: - AISI 316L stainless steel is highly resistant to corrosion and suitable for repeated cleaning and sterilization routines used in food, medical and hygienic environments. Its corrosion resistance and mechanical integrity will not be compromised by typical chemical, steam or thermal sterilization within the specified temperature range. - Viton (FKM) is chemically resistant to many disinfectants and can tolerate temperatures up to +150Â°C per the product specification. Routine chemical sterilants, hot-water sanitizing, and many steam exposures at temperatures below or around the 150Â°C rating are generally acceptable. Caveats: - Avoid sterilization methods that exceed +150Â°C or expose Viton to aggressive chemicals known to attack fluorocarbon elastomers (e.g., concentrated ketones, some amine-based solvents). Prolonged exposure to harsh oxidizers at high concentration or repeated autoclaving well above the material limit can accelerate seal aging, hardening or loss of elasticity. - Verify compatibility of specific sterilants (concentration and cycle time) with Viton in your process. Monitor seals for wear, compression set or leaks and replace per maintenance schedule. - Ensure connections are size-matched (no mixing 1/2â³ and 3/4â³ components) to avoid mechanical damage during use and sterilization. Conclusion: Within the productâs specified temperature range and using compatible sterilants, the NiTO SS water quick connector plug with hose end, stainless steel can be sterilized frequently without degrading the AISI 316L body or Viton seal; follow compatibility checks and routine inspection.

Is the NiTO SS water quick connector plug with hose end, stainless steel compatible with other quick coupling sizes (e.g., 1/2â³ vs 3/4â³)?

No - the NiTO SS water quick connector plug with hose end, stainless steel is not compatible across sizes. It is available in two separate systems (1/2â³ and 3/4â³) and direct connection between different systems (e.g., a 1/2â³ socket with a 3/4â³ plug) is not allowed.

Can the NiTO SS water quick connector plug with hose end, stainless steel be used with aggressive cleaning agents (e.g., chlorine, caustics)?

Yes. the NiTO SS water quick connector plug with hose end, stainless steel is generally suitable for use with many aggressive cleaning agents (including chlorine and caustics), but with important caveats. Why itâs compatible: - Body material AISI 316L stainless steel offers excellent corrosion resistance and is widely used in food, pharmaceutical and hospital environments where aggressive cleaners are used. - Operating range (â20Â°C to +150Â°C) and 25 bar working pressure cover typical cleaning processes (hot caustic washdowns, CIP/SIP cycles). - Viton (FKM) sealing material is resistant to many chemicals, including a broad range of acids, alkalis and some chlorine-containing solutions, and tolerates elevated temperatures. Cautions and limitations: - Chlorine and highly oxidative halogen solutions (especially at high concentration, elevated temperature, or prolonged exposure) can still attack stainless steel and elastomers. 316L is more resistant than 304 but not immune to pitting or stress corrosion in strongly oxidizing chloride environments. - Viton has limited long-term resistance to strong oxidizers and certain bleach/chlorine chemistries; compatibility depends on concentration, temperature and contact time. - Always check the exact concentration, temperature and exposure time of the cleaning agent. For repeated, high-concentration or high-temperature exposure to strong oxidizers, consider alternative elastomers or higher-alloy materials. - Do not mix or directly connect different NiTO systems (e.g., 1/2â³ socket with 3/4â³ plug). Recommendation: Before routine use with aggressive agents, validate compatibility by consulting the chemical supplierâs compatibility charts for AISI 316L and Viton (FKM) under your specific conditions, or perform a compatibility test. If in doubt with strong chlorine/chloride processes, consult the manufacturer for guidance or consider more resistant sealing materials or alloys.

NiTO SS water quick connector plug with hose end, stainless steel

All products, Quick couplings for water/

Additional information

Material	SS – stainless steel

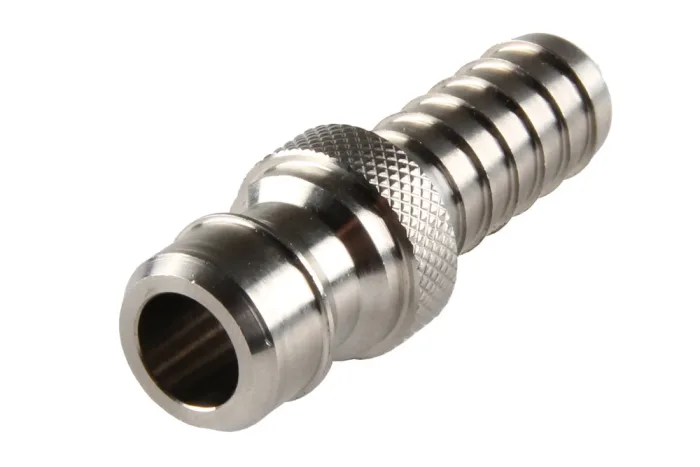

Quick coupling plug NiTO made of AISI 316L stainless steel with a hose end. Available in two systems: 1/2″ and 3/4″. Used in conditions with high hygiene and corrosion resistance requirements (e.g., food industry, hospitals). Direct connection of components from different systems is not allowed, e.g., a 1/2″ socket with a 3/4″ plug. Material: AISI 316L steel. Working pressure: 25 bar. Operating temperature: from -20°C to +150°C. Sealing material: viton.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
NT-54600A3	Quick coupling plug 1/2", hose end 1/2", stainless steel	12	25	In stock	0 zł		Enquiry
NT-64600A3	Quick coupling plug 3/4", hose end 3/4", stainless steel	20	25	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling plug NiTO made of AISI 316L stainless steel with a hose end. Available in two systems: 1/2″ and 3/4″. Used in conditions with high hygiene and corrosion resistance requirements (e.g., food industry, hospitals). Direct connection of components from different systems is not allowed, e.g., a 1/2″ socket with a 3/4″ plug. Material: AISI 316L steel. Working pressure: 25 bar. Operating temperature: from -20°C to +150°C. Sealing material: viton.
